22151 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

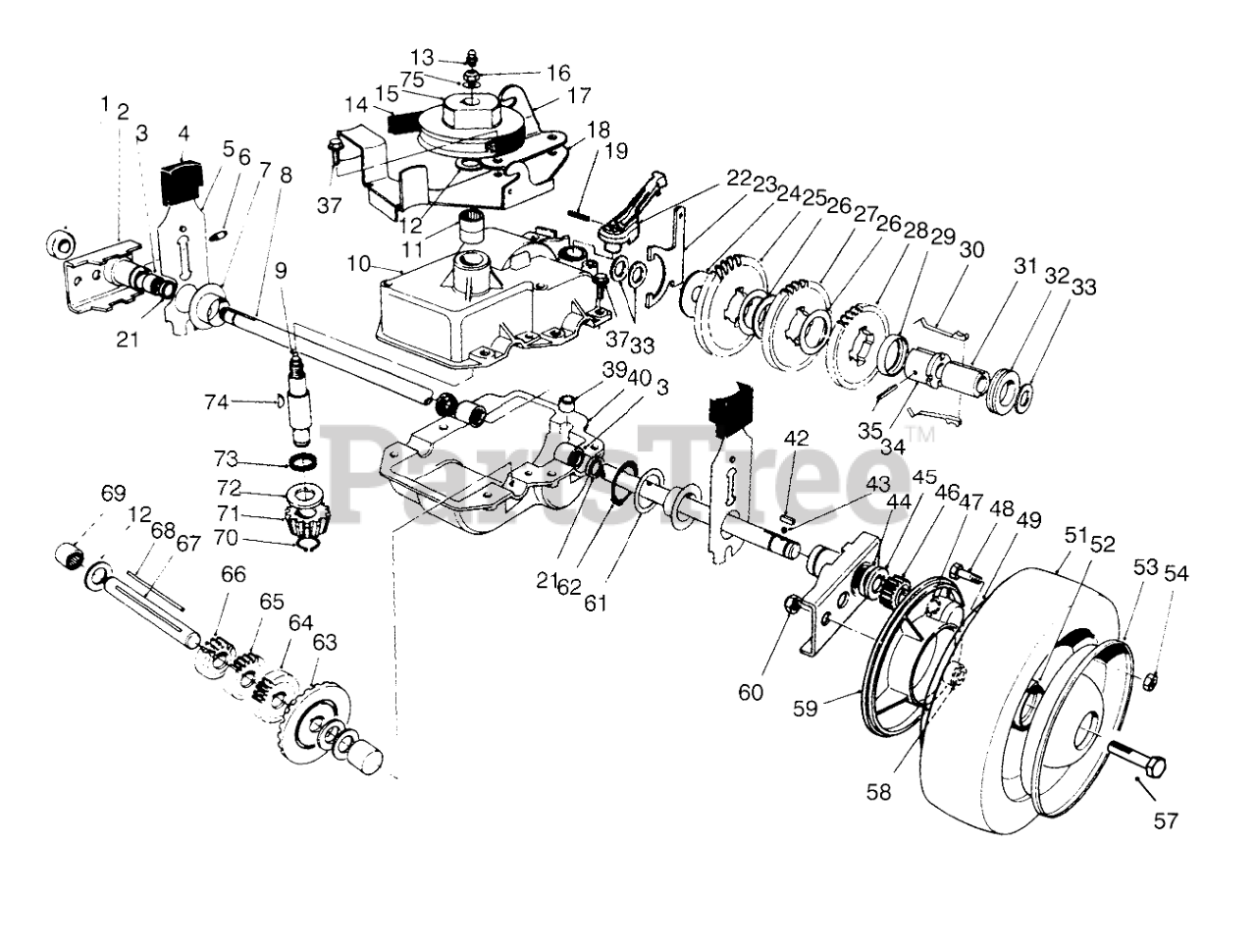

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

2

Toro 74-1851

Pivot Arm Assembly (Incl. Ref. #1, 3, 6 & 21)

$95.99

$

In Stock, only 2 left!

0

3

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

4

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

5

Toro 66-7561

REAR SPRING ARM ASM

$19.99

$

In Stock, Qty 6

0

6

Toro 92-6316

ZERK

$1.99

$

In Stock, Qty 6

0

7

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

8

Toro 74-1890

SHAFT-OUTPUT

$133.99

$

In Stock, only 3 left!

0

9

Toro 13-5149

Shaft-Input (Incl Ref. #13)

$93.99

$

Usually ships in 3-6 days

0

10

Toro 13-9739

Upper Case Assembly (Incl. Ref. # 11 & 73)

$83.99

$

Usually ships in 3-6 days

0

11

Toro 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

12

Toro 36-4792

WASHER-THRUST

$1.49

$

In Stock, Qty 16

0

13

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

14

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 15

0

15

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

16

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

17

Toro 74-1750

Bracket-Traction Engage
(Superseded to 74-1750-03)

$13.99

$

Usually ships in 3-6 days

0

18

Toro 49-8461

Belt Guide Bracket
(Superseded to 49-8461-03)

$

$

Not available

19

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

21

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

22

Toro 74-1960

LEVER-SHIFT

$13.99

$

Usually ships in 3-6 days

0

23

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

24

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

25

Toro 46-3560

GEAR

$79.99

$

In Stock, only 1 left!

0

26

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 29-9271

GEAR-42T

$88.99

$

Usually ships in 3-6 days

0

28

Toro 42-4740

GEAR-38T

$84.99

$

In Stock, only 2 left!

0

29

Toro 55-8020

RETAINER-KEY

$9.99

$

Usually ships in 3-6 days

0

30

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

31

Toro 39-6720

SLEEVE

$16.99

$

Usually ships in 3-6 days

0

32

Toro 29-9340

COLLAR-SHIFT

$40.99

$

Usually ships in 3-6 days

0

33

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

34

Toro 55-8010

SLEEVE-GEAR

$19.99

$

In Stock, only 4 left!

0

35

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

37

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

39

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

40

Toro 74-1920

CASE-GEAR, LOWER
(Superseded to 119-7863)

$49.99

$

In Stock, only 4 left!

0

42

Toro 612066

KEY

$2.49

$

In Stock, only 3 left!

0

43

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 11

0

44

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

45

Toro 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 14

0

46

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

47

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

48

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

49

Toro 92-4957

Wheel-Half
(Superseded to 121-1378-06)

$30.99

$

In Stock, Qty 6

0

51

Toro 53-7740

TIRE

$34.99

$

In Stock, only 3 left!

0

52

Toro 92-8905

Hub Ass-y
(Superseded to 99-5872)

$

$

Not available

53

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

54

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

57

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

58

Toro 74-1650

SPACER-COVER, WHEEL

$9.49

$

In Stock, only 3 left!

0

59

Toro 74-1640

COVER-WHEEL

$14.99

$

In Stock, Qty 11

0

60

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

61

Toro 74-1810

WASHER

$0.99

$

In Stock, Qty 7

0

62

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 2 left!

0

63

Toro 74-1760

GEAR-BEVEL

$39.99

$

Usually ships in 3-6 days

0

64

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

65

Toro 46-3550

GEAR-14T

$21.99

$

Usually ships in 3-6 days

0

66

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

67

Toro 53-7950

SHAFT-INTERMEDIATE

$53.99

$

In Stock, only 1 left!

0

68

Toro 39-7842

KEY

$2.99

$

In Stock, Qty 13

0

69

Toro 252-103

BEARING-NEEDLE, CLOSED

$25.99

$

In Stock, only 2 left!

0

70

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

71

Toro 39-6660

PINION-BEVEL

$39.99

$

In Stock, only 1 left!

0

72

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

73

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

74

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

75

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

Toro 74-1861

Gear Case Assembly (Incl. Ref. #3, 8-13, 15, 16, 21, 23-40 & 63-74)
(Superseded to 74-1860)

Note: Not illustrated

$752.99

$

Usually ships in 3-6 days

0

Toro 92-4958

Wheel & Tire Assembly (Incl. Ref. #48-49 & 51-54)
(Superseded to 121-1379)

Note: Not illustrated

$131.99

$

In Stock, only 2 left!

0
