22151 - Toro Walk-Behind Mower (SN: 039000856 - 039999999) (1993) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

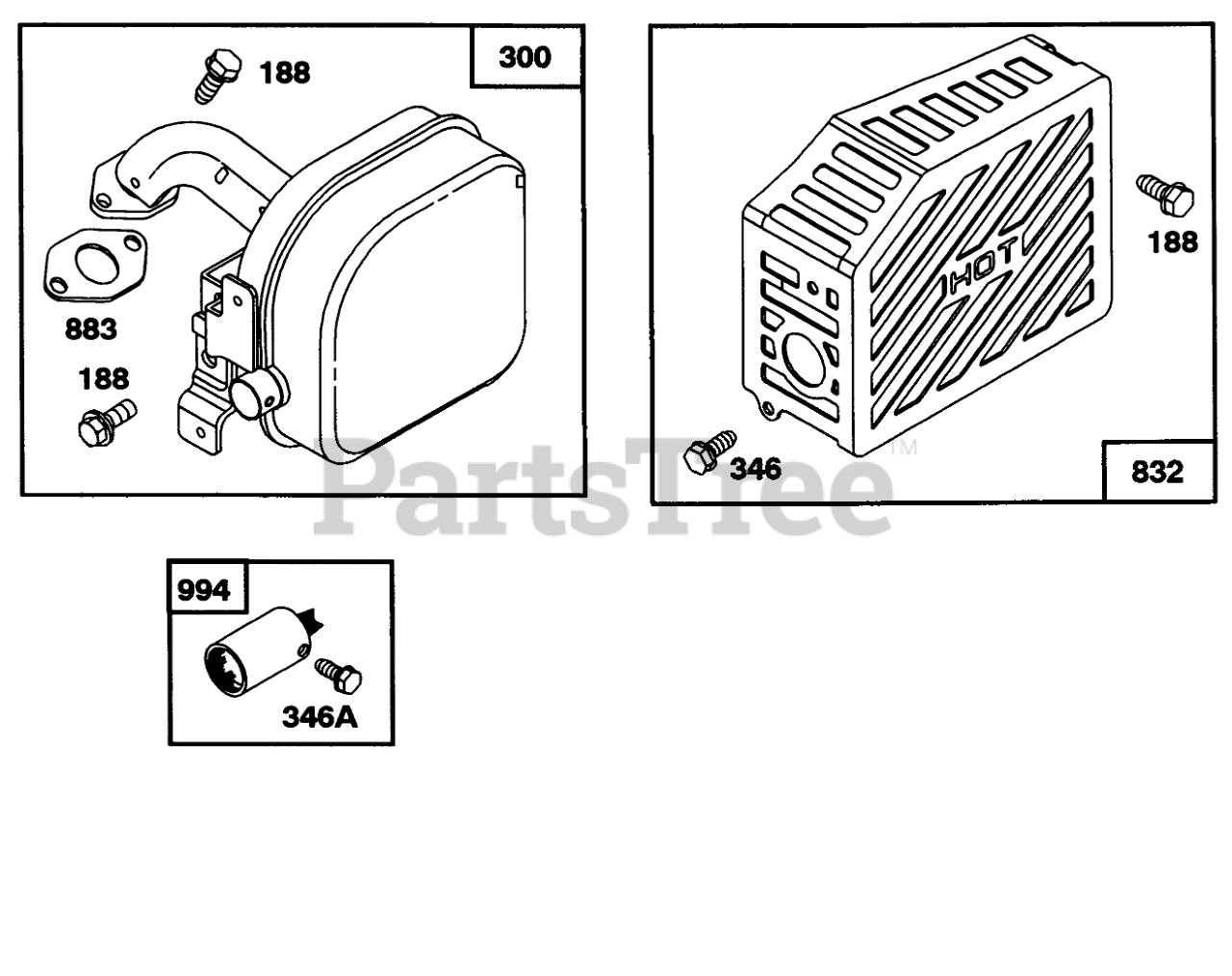

ENGINE GTS 150 Parts Diagram

  • Title
188

Toro 77-7450

SCREW - SEM

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

346A

Toro 77-9050

SCREW - ARRESTER MTG.
(Superseded to 94-6783)

$

$

Not available

832

Toro 77-7290

OIL FILLER TUBE

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 493783.

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

994

Toro 77-9040

ARRESTER - SPARK

$

$

Not available
