22151 - Toro Walk-Behind Mower (SN: 039000856 - 039999999) (1993) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

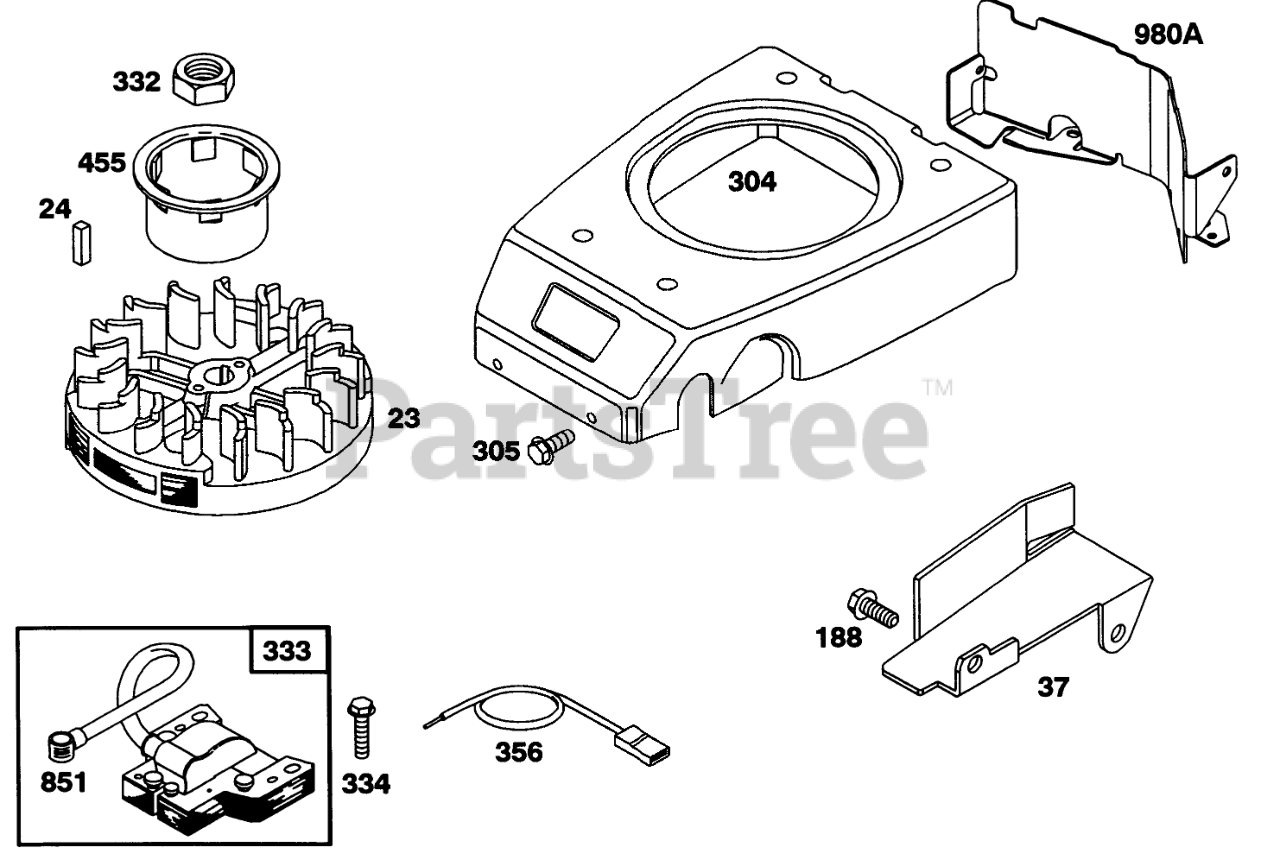

ENGINE GTS 150 Parts Diagram

  • Title
23

Toro 77-8330

FLYWHEEL - MAGNETO

$

$

Not available

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

37

Toro 77-9170

FLYWHEEL GUARD

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

304

Toro 77-9160

BLOWER HSG ASM

$266.99

$

Usually ships in 3-6 days

0

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

332

Toro 77-8360

NUT - HEXAGON

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-8440

SCREW - SEM

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$

$

Not available

455

Toro 77-8350

CUP - STARTER

$

$

Not available

851

Toro 77-8430

TERMINAL - CABLE

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

980A

Toro 77-9180

BLOWER HSG BRACKET

$

$

Not available
