22151 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

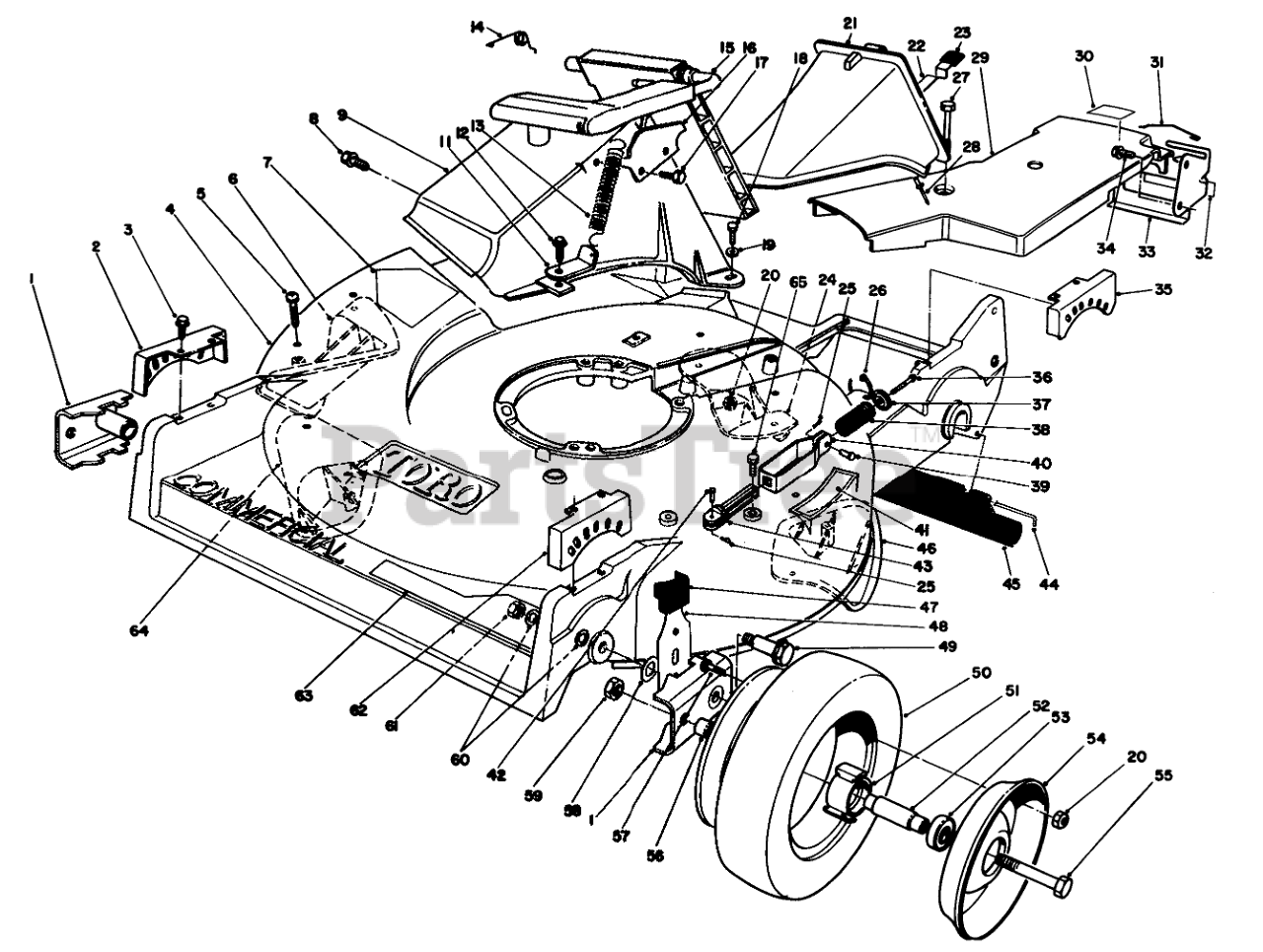

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 14-7399

Housing-Commercial (Incl. Ref. #7)
(Superseded to 14-9479)

$

$

Not available

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

7

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

11

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

14

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

15

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

16

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

21

Toro 77-0500

Plug-Discharge (Incl. Ref. #22, 23, & 28)

$75.99

$

Usually ships in 3-6 days

0

22

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

23

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

24

Toro 76-2150

KICKER

$29.99

$

Usually ships in 3-6 days

0

25

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

28

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

29

Toro 86-5231

BELT COVER (MACHINED)

$

$

Not available

30

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$3.49

$

In Stock, only 2 left!

0

31

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

32

Toro 74-1970

DECAL-POSITION, GEAR

$7.49

$

In Stock, Qty 6

0

33

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$24.99

$

Usually ships in 3-6 days

0

34

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

35

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$27.99

$

In Stock, only 4 left!

0

36

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

37

Toro 65-5280

RETAINER-SPRING

$3.49

$

Usually ships in 3-6 days

0

38

Toro 84-9100

SPRING

$12.99

$

Usually ships in 3-6 days

0

39

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

40

Toro 84-8880

Bracket-Spring
(Superseded to 84-8880-03)

$

$

Not available

41

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

42

Toro 84-9050

PIN-SPRING

$13.99

$

Usually ships in 3-6 days

0

43

Toro 84-8870

GUIDE-SPRING
(Superseded to 106-0842)

$

$

Not available

44

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

45

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

46

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

47

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

48

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

49

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

50

$34.99

$

In Stock, only 3 left!

0

51

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

52

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

53

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

54

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

55

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

56

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

57

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

58

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

59

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

60

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

61

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

62

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

63

Toro 82-8190

DECAL - RECYCLER

$

$

Not available

64

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0

65

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #20, 50-54, & 57)
(Superseded to 121-1380)

Note: Not illustrated

$101.99

$

In Stock, only 3 left!

0
