22151 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE GTS 150 77-9140 Parts Diagram

Walk-Behind Mower

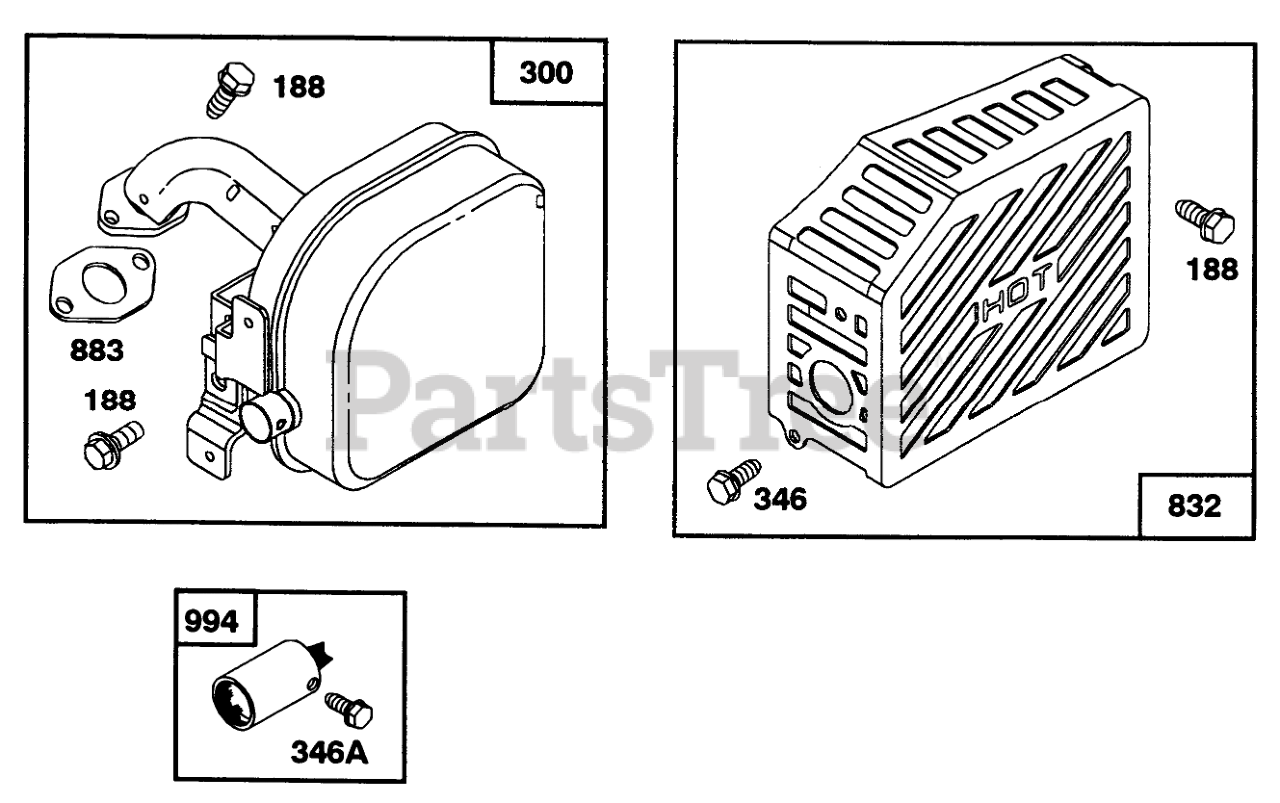

ENGINE GTS 150 77-9140 Parts Diagram

  • Title
188

Toro 77-7450

SCREW - SEM

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

346A

Toro 77-9050

SCREW - ARRESTER MTG.
(Superseded to 94-6783)

$

$

Not available

832

Toro 77-8660

Guard-Muffler
(Superseded to 77-9290)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 493783.

$

$

Not available

994

Toro 77-9040

ARRESTER - SPARK

$

$

Not available
