22150 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HOUSING ASSEMBLY Parts Diagram

21" ProLine Recycler Walk-Behind Mower

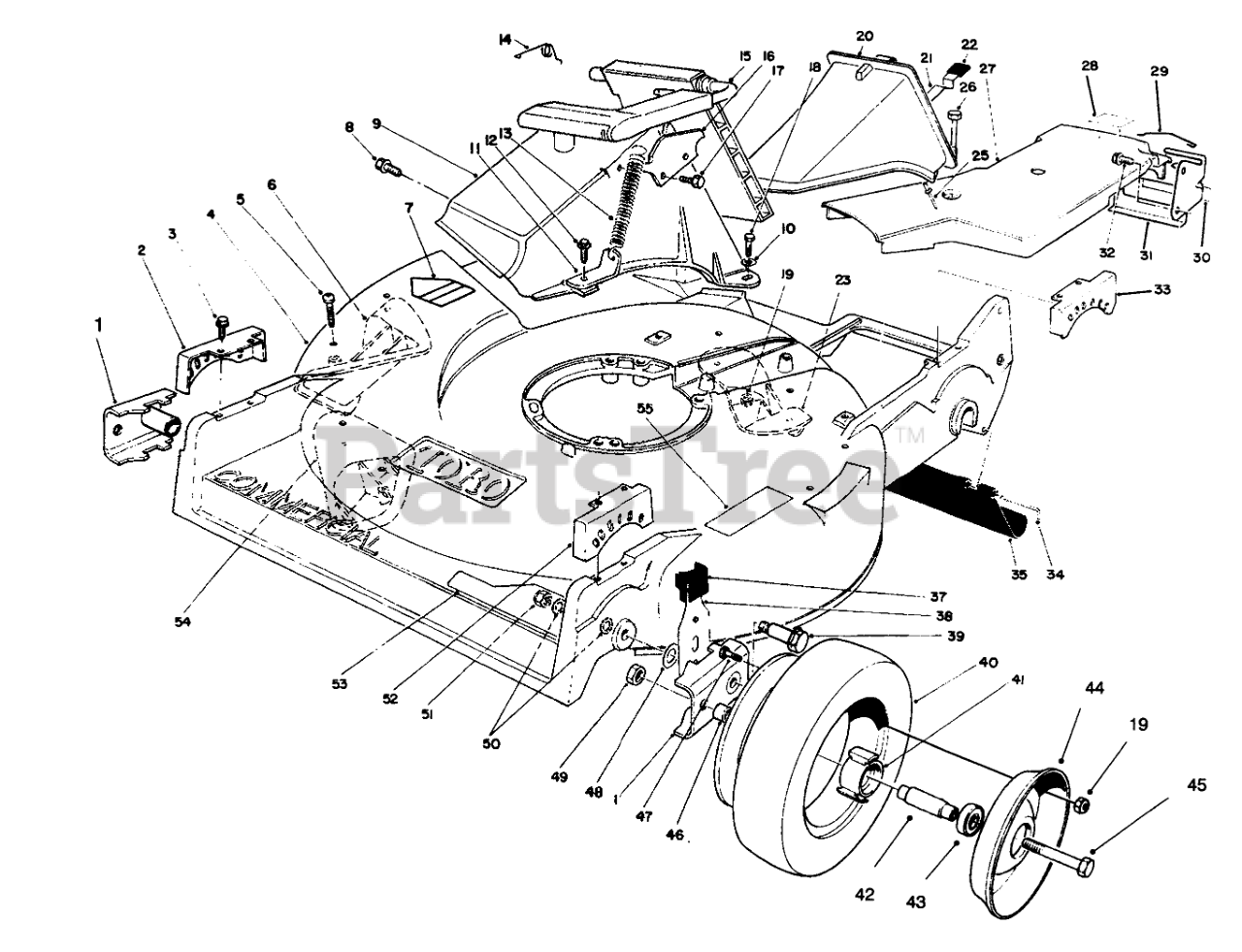

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Housing-Commercial (Incl. Ref. #5-7,23, & 54-55)

$

$

Not available

5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

7

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 82-9152

TUNNEL-DISCHARGE

$103.99

$

Usually ships in 3-6 days

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 5

0

14

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

15

Toro 93-7351

DISCHARGE DOOR ASM

$112.99

$

In Stock, only 1 left!

0

16

Toro 93-3154

LATCH-PLATE

$5.49

$

In Stock, Qty 5

0

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 77-0500

Plug-Discharge (Incl. Ref. #21,22, & 25)

$68.99

$

Usually ships in 3-6 days

0

21

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

22

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, only 3 left!

0

25

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

26

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

27

Toro 86-5231

BELT COVER (MACHINED)

$

$

Not available

28

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$2.49

$

In Stock, only 2 left!

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

30

Toro 74-1970

DECAL-POSITION, GEAR

$6.49

$

In Stock, Qty 6

0

31

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$23.99

$

Usually ships in 3-6 days

0

32

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$26.99

$

In Stock, only 4 left!

0

34

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

35

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

37

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

38

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

39

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

40

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

41

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

42

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

43

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

44

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

45

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

46

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

47

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

48

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

49

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

50

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

51

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

52

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, only 4 left!

0

53

Toro 92-1796

DECAL - RECYCLER

$9.49

$

Usually ships in 3-6 days

0

54

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

55

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #19,40,41,42,43,44, & 47)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 3 left!

0
