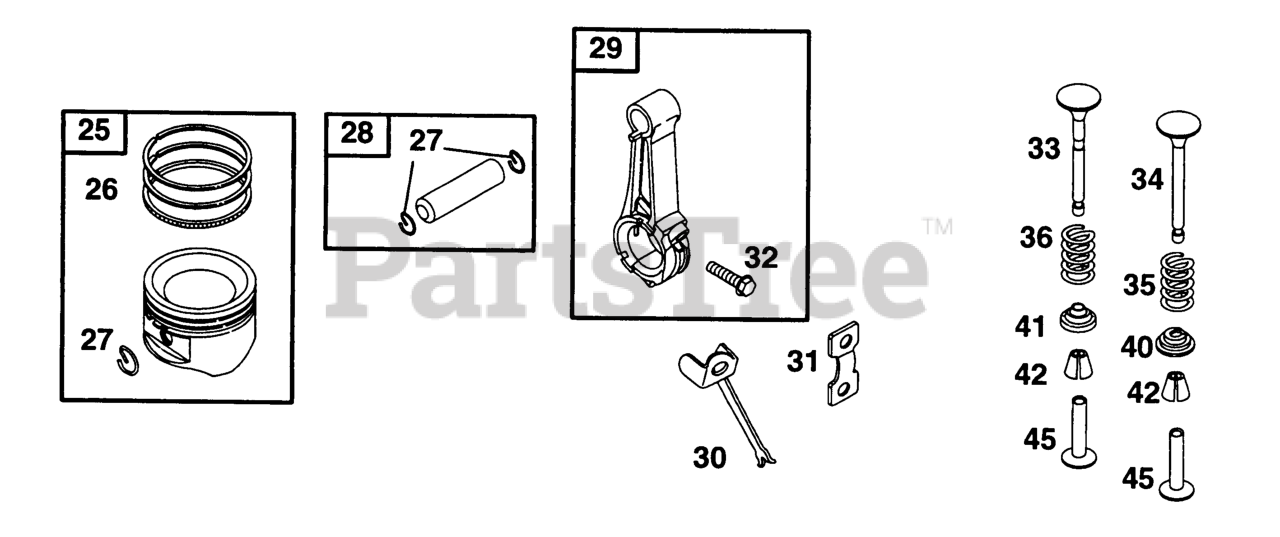

221432-0111-01 - Briggs & Stratton Horizontal Engine Piston Grp Parts Diagram

Horizontal Engine

Piston Grp Parts Diagram

  • Title

25

Briggs & Stratton 394661

Piston/Ring Kit (Std.)
(Superseded to 499284)

$

$

Not available

25

Briggs & Stratton 394662

Piston/Ring Kit (.010" O.S.)

$

$

Not available

25

Briggs & Stratton 394663

Piston/Ring Kit (.020" O.S.)
(Superseded to 499292)

$

$

Not available

25

Briggs & Stratton 394664

Piston/Ring Kit (.030" O.S.)
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391780

Ring, Piston Kit (Std.)
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 391781

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 391782

Ring, Piston Kit (.020" O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391783

Ring, Piston Kit (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 392331

Ring Set-Std Chr

$37.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

Note: Used Before Code Date 95101600

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263129

Lock-Piston Pin
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

Note: Used Before Code Date 95101600

$14.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston Std

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

Pin-Piston .005" O.S.

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393860

Rod-Connecting (Standard)

$159.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 393861

Rod-Connecting 020

$127.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 222329

Dipper-Connecting Rod
(Superseded to 690405)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222299

Lock-Screw

$

$

Not available

32

Briggs & Stratton 92909

Screw, Hex Head Cap
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 261185

Valve-Exhaust
(Superseded to 691796)

$43.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261462

Valve-Intake
(Superseded to 690429)

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0
