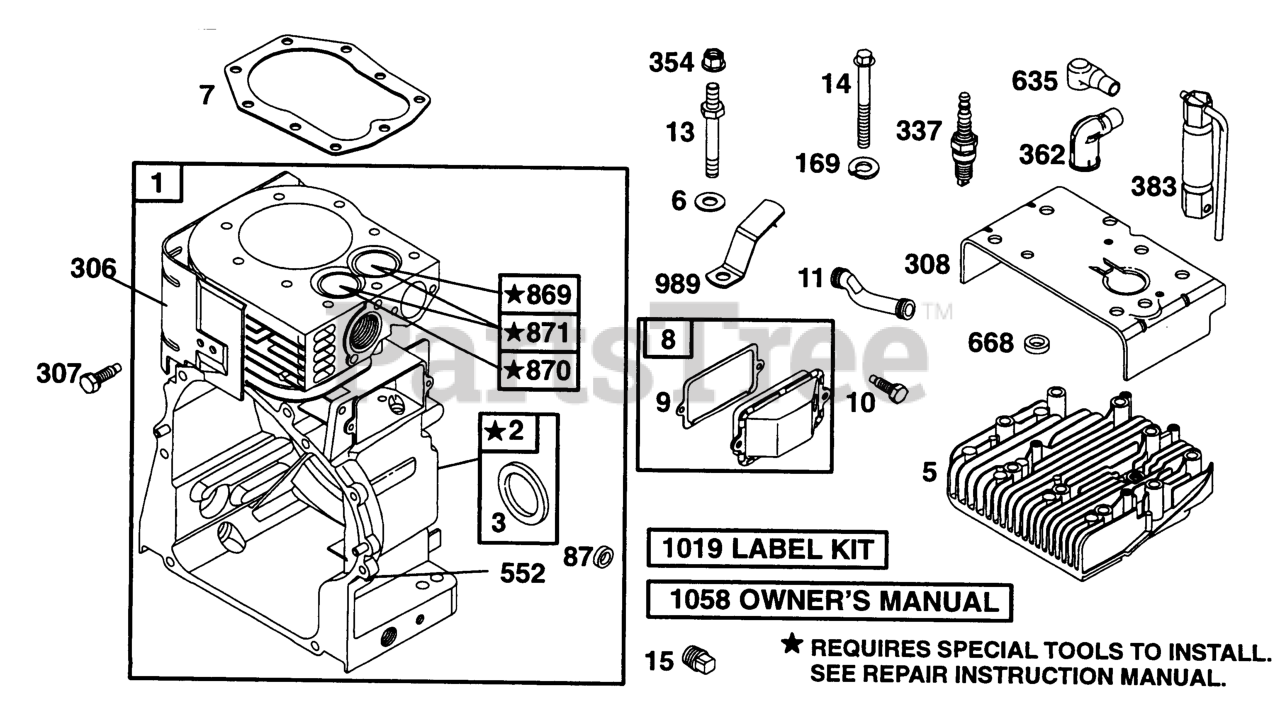

221431-0156-01 - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 394656

Cylinder Assembly

$333.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing/Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 492653

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214194

Head-Cylinder
(Superseded to 690385)

$116.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537

$9.49

$

In Stock, only 4 left!

0

8

Briggs & Stratton 495736

Breather Assy.

$42.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94719

Screw, Machine Hex
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280112

Tube-Breather

$11.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 94776

Stud, Hex Washer He (3 15/16" Long)
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 94622

Screw, Machine Hex (3" Long)
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 94926

Stud, Hex Washer He (3 5/16" Long)
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 94931

Stud, Sems (2 1/2" Long)
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92738

Plug, Pipe Magnetic
(Superseded to 690289)

$6.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94239

Plug, Pipe (Standar (Square Head)
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

87

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 492653

$7.99

$

In Stock, Qty 8

0

169

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 224882

Shield-Cylinder
(Superseded to 690489)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94386

Screw-Sem
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 224897

Cover-Cylinder Head
(Superseded to 690491)

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

354

Briggs & Stratton 94726

Nut, Hex Flange
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

362

Briggs & Stratton 392273

Elbow, Suppression
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 491893

Bushing-Gov Crank (Includes Seal, Ref. 87)

$107.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

668

Briggs & Stratton 231186

Spacer

$5.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 261463

Seat, Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 262924

Seat, Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

989

Briggs & Stratton 393242

Switch-Stop
(Superseded to 690633)

$11.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491253

Label Kit

$10.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 270861

Owner's Manual Nonemission Engines

$

$

Not available
