22142 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

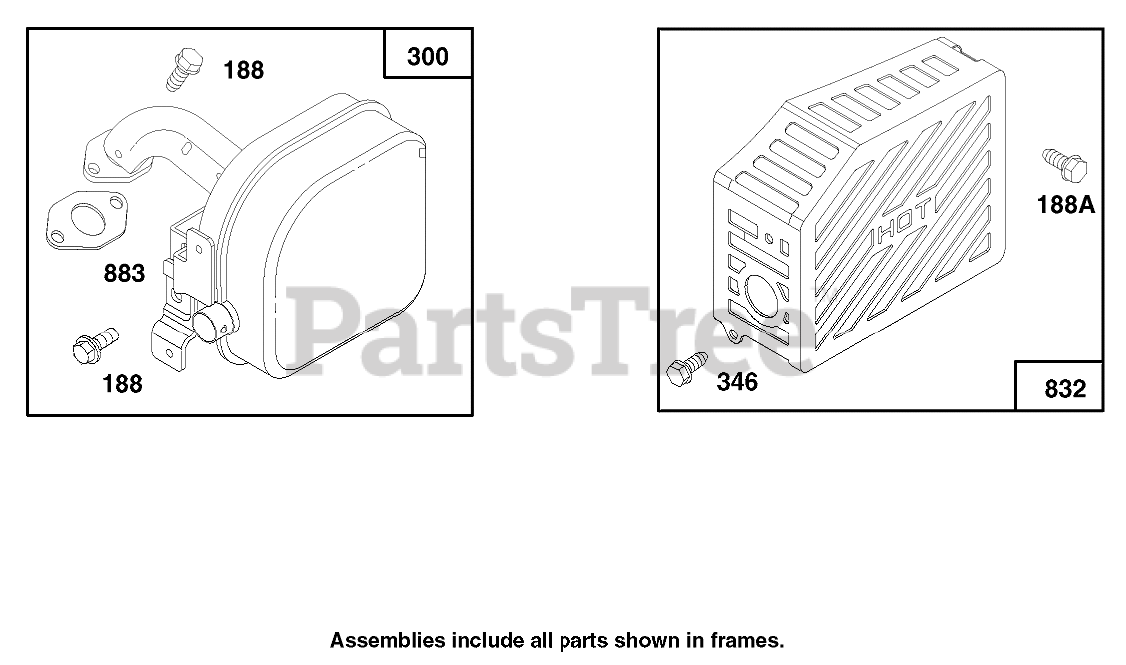

ENGINE GTS 150 Parts Diagram

  • Title
188

Toro 94-1652

SCREW - HEX HEAD

$

$

Not available

188A

Toro 77-7450

SCREW - SEM

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

832

Toro 77-8660

Guard-Muffler
(Superseded to 77-9290)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
