2210 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODELS 2210 AND 4210 MOWERS Parts Diagram

Walk-Behind Mower

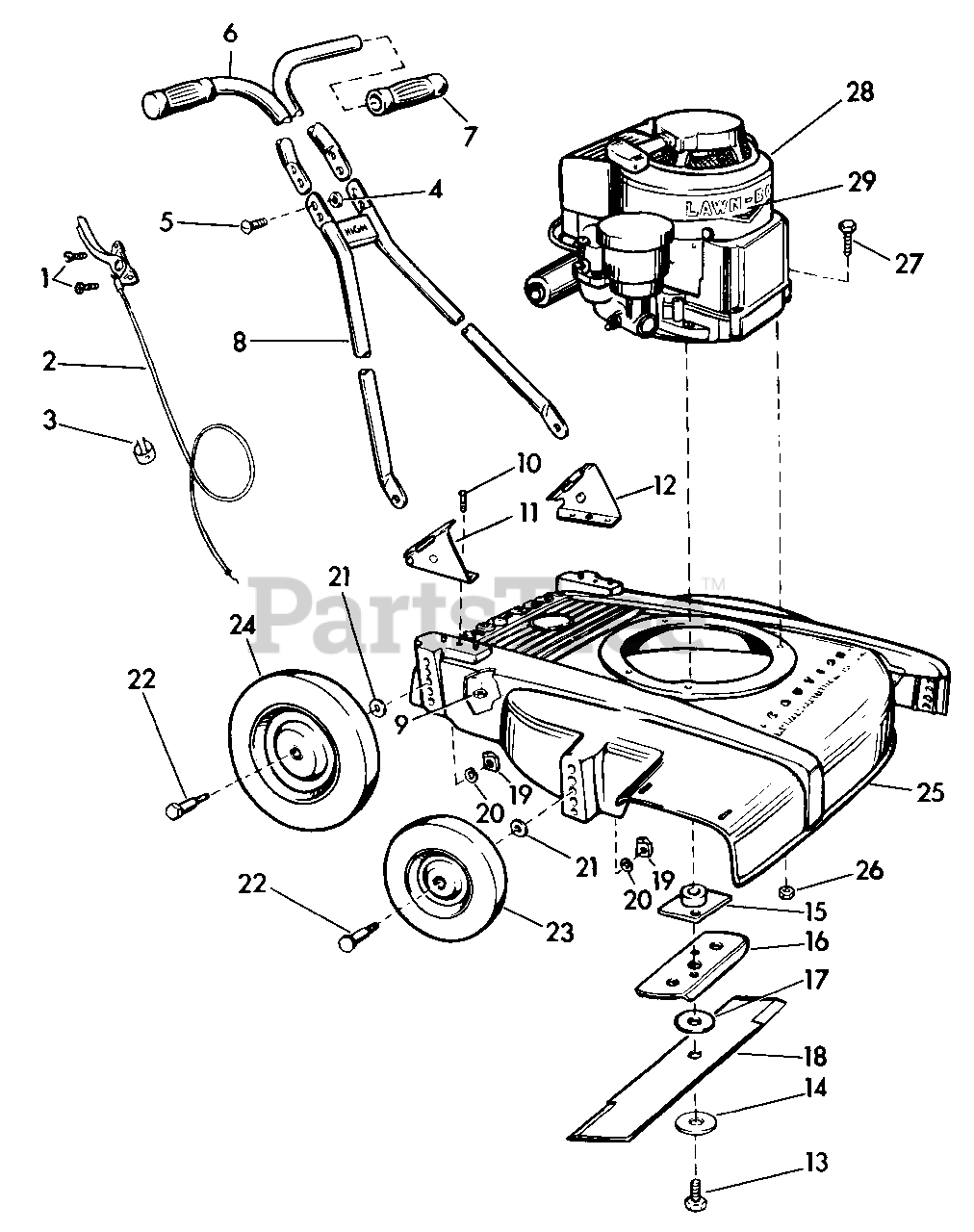

MODELS 2210 AND 4210 MOWERS Parts Diagram

  • Title
1

Lawn-Boy 602012

Screw Control Mounting

$

$

Not available

2

Lawn-Boy 677595

Control Cable Assembly

$

$

Not available

3

Lawn-Boy 603323

Clip-Control Cable

$

$

Currently unavailable

4

Lawn-Boy 602201

Nut-Handle

$

$

Not available

5

Lawn-Boy 602025

Screw-Handle

$

$

Not available

6

Lawn-Boy 677596

Handle Assembly-Top

$

$

Not available

7

Lawn-Boy 603025

Grip-Handle

$

$

Not available

8

Lawn-Boy 677355

Handle Assembly-Bottom

$

$

Not available

9

Lawn-Boy 602830

Nut-Nylok Handle Bracket

$

$

Not available

10

Lawn-Boy 602693

Screw-Handle Bracket

$

$

Not available

11

Lawn-Boy 677118

Bracket-Handle, Right

$

$

Not available

12

Lawn-Boy 677117

Bracket-Handle, Left

$

$

Not available

13

Lawn-Boy 603324

Stud-Blade Mounting

$

$

Currently unavailable

14

Lawn-Boy 603318

Washer-Blade Mounting

$

$

Currently unavailable

15

Lawn-Boy 677525

Collar and Plate Assembly

$23.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 603542

Stiffener-Blade

$

$

Currently unavailable

17

Lawn-Boy 602178

Washer-Fiber (21" only)

$

$

Not available

18

Lawn-Boy 603315

Blade-18"

$

$

Currently unavailable

18

Lawn-Boy 603316

Blade-21"

$

$

Currently unavailable

19

Lawn-Boy 602677

Nut-Wheel

$5.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 120177

Washer-Lock, Wheel

$3.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 602627

Washer-Plain Wheel

$

$

Not available

22

Lawn-Boy 602680

Bolt-Shoulder Wheel

$

$

Not available

23

Lawn-Boy 677533

Wheel Assembly 6 x 1.50

$

$

Not available

24

Lawn-Boy 677534

Wheel Assembly 8 x 1.75

$

$

Not available

25

Lawn-Boy 603034

Housing-18"

$

$

Currently unavailable

25

Lawn-Boy 603523

Housing-21"

$

$

Currently unavailable

26

Lawn-Boy 602830

Nut-Engine Mounting

$

$

Not available

27

Lawn-Boy 603325

Screw-Engine Mounting

$

$

Currently unavailable

28

Engine-Model 8BHS, Briggs and Stratton

$

$

Not available

29

Lawn-Boy 603331

Decal-"Lawn-Boy"

$

$

Currently unavailable
