221 LHP (31AM2T6D710) - Cub Cadet 21" Snow Thrower (2011) 370-JU-11 Muffler Parts Diagram

21" Snow Thrower

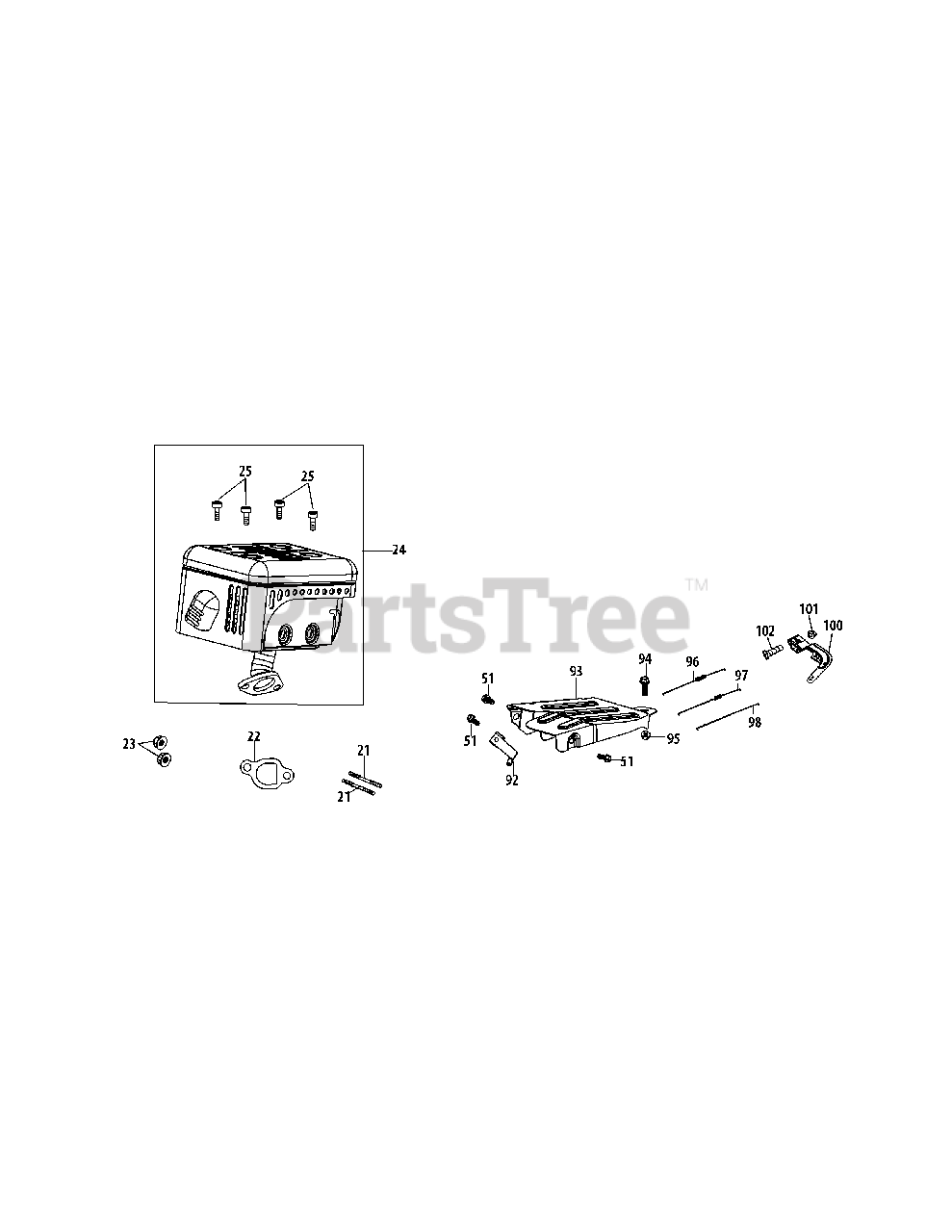

370-JU-11 Muffler Parts Diagram

  • Title

21

Cub Cadet 710-04911

Stud M8×36

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-12027

Muffler Stud Assembly
(Superseded to 951-14190)

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 951-11285

Exhaust Pipe Gasket
(Superseded to 951-11289)

$2.49

$

In Stock, only 2 left!

0

23

Cub Cadet 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 951-12010

Muffler Assembly
(Superseded to 951-12010A)

$76.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-05002

Bolt M5×10
(Superseded to 710-09956)

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

92

Cub Cadet 951-11104

Covernor Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-12016

Governor Shield

$7.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 710-04920

Bolt M6×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

96

Cub Cadet 951-12100

Governor Spring

$7.49

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

98

Cub Cadet 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, only 1 left!

0

100

Cub Cadet 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

102

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0
