221 LHP (31AM2T6D710) - Cub Cadet 21" Snow Thrower (2010) 370-JU Muffler Parts Diagram

21" Snow Thrower

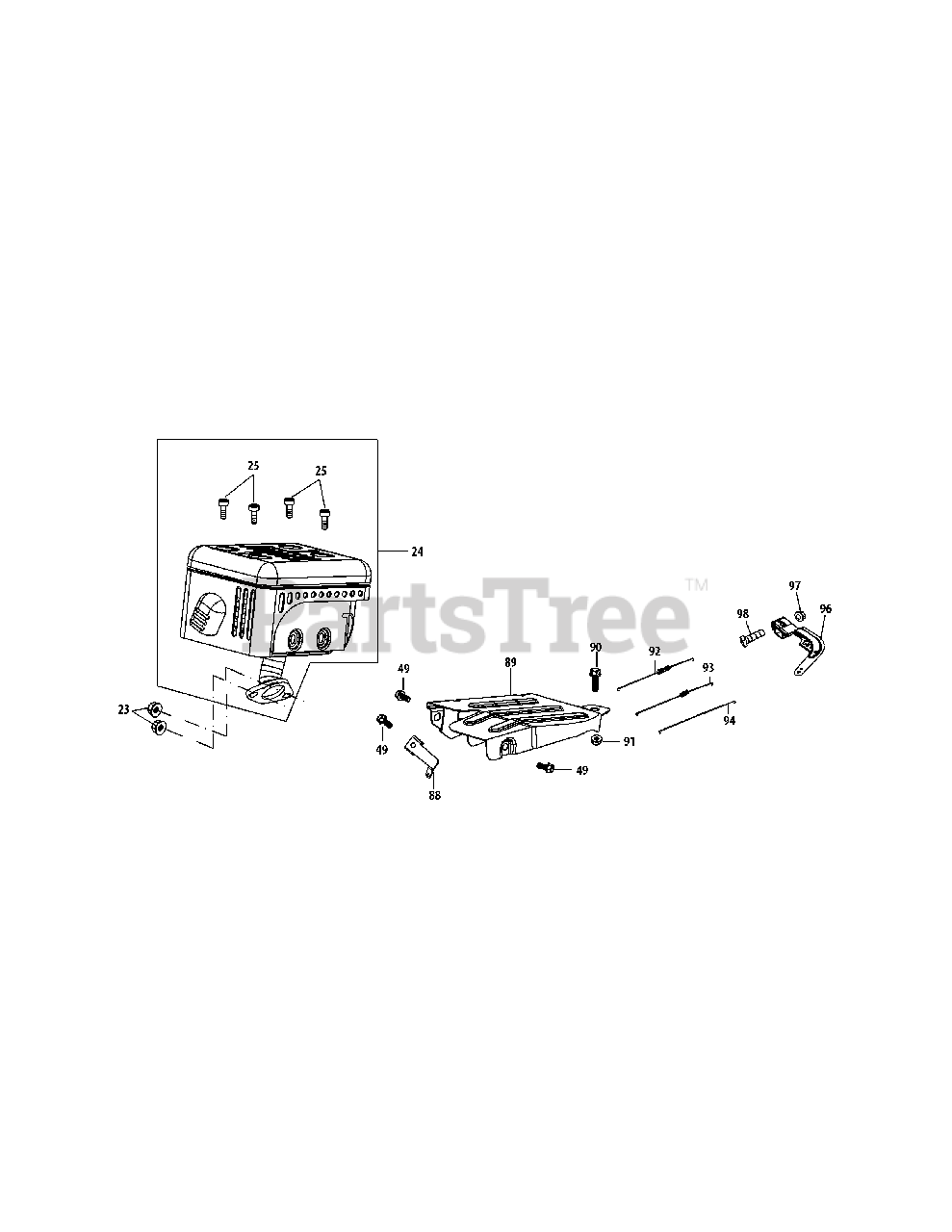

370-JU Muffler Parts Diagram

  • Title

23

Cub Cadet 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

24

Cub Cadet 951-12010

Muffler Assembly
(Superseded to 951-12010A)

$76.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-05002

Bolt M5×10
(Superseded to 710-09956)

$3.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 710-04941

Bolt M6×12
(Superseded to 710-05103)

$4.49

$

In Stock, only 2 left!

0

88

Cub Cadet 951-11104

Covernor Spring Bracket

$3.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 951-12016

Governor Shield

$7.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 710-04920

Bolt M6×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

92

Cub Cadet 751-12100

Governor Spring
(Superseded to 951-12100)

$7.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 951-10664

Throttle Return Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 20+

0

94

Cub Cadet 951-10665

Governor Rod
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

96

Cub Cadet 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

98

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0
