221 HP (31AS2S5D710) - Cub Cadet 21" Snow Thrower (2012) Shroud, Chute & Handle 221HP Parts Diagram

21" Snow Thrower

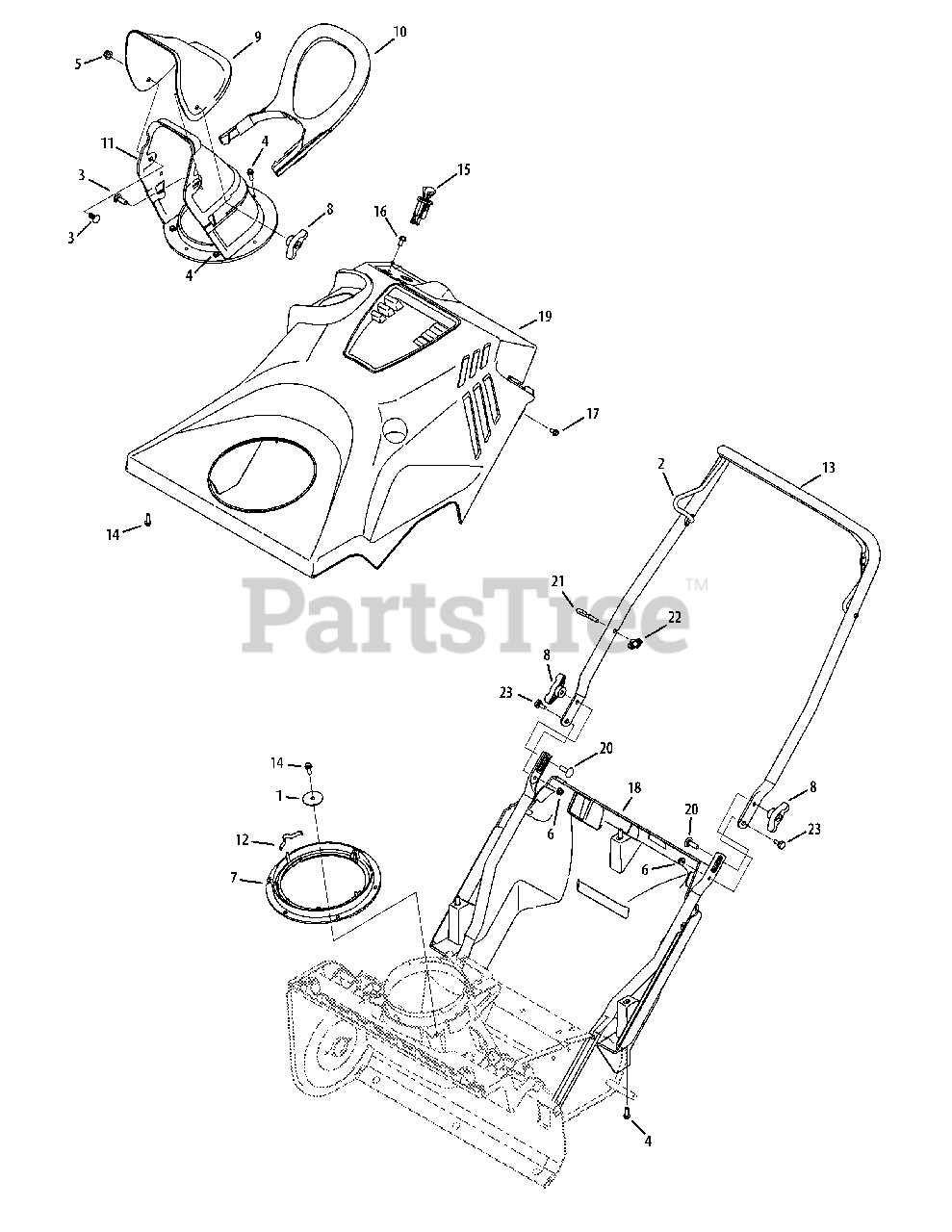

Shroud, Chute & Handle 221HP Parts Diagram

  • Title
1

Cub Cadet 736-04576

Flat Washer, .28 x 1.5 x .075

$3.99

$

Usually ships in 3-6 days

0

2

Variations

Cub Cadet 747-05327C-0637

Auger Bail - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 17

0

Cub Cadet 747-05327C-0638

BAIL-AUGER - MTD/TROY-BILT RED (0638)

$16.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-05327C-4062

BAIL-AUGER - COOL GRAY (4062)

$16.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05108

Hex Washer Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 731-08274

Chute Ring

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 720-04122

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 12

0

9

Cub Cadet 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

10

Cub Cadet 731-07644

Chute Handle

$25.99

$

In Stock, only 4 left!

0

11

Cub Cadet 931-07753A

Lower Chute

$35.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 749-04703B

Upper Handle

Variations

Cub Cadet 749-04703B-0637

Upper Handle - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04703B-4062

HANDLE-UPPER - COOL GRAY (4062)

$43.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$14.99

$

In Stock, Qty 8

0

16

Cub Cadet 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-07725

Bottom Cover
(Superseded to 731-07725B)

$56.99

$

In Stock, only 1 left!

0

19

Cub Cadet 759-04313A

Top Cover
(Superseded to 759-04313B)

$

$

Not available

20

Cub Cadet 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet 710-05348

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 11

0

22

Cub Cadet 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04419A

Shoulder Screw, 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 15

0
