221 HP (31AS2S5D710) - Cub Cadet 21" Snow Thrower (2011) 265-JU-11 Cylinder Head Parts Diagram

21" Snow Thrower

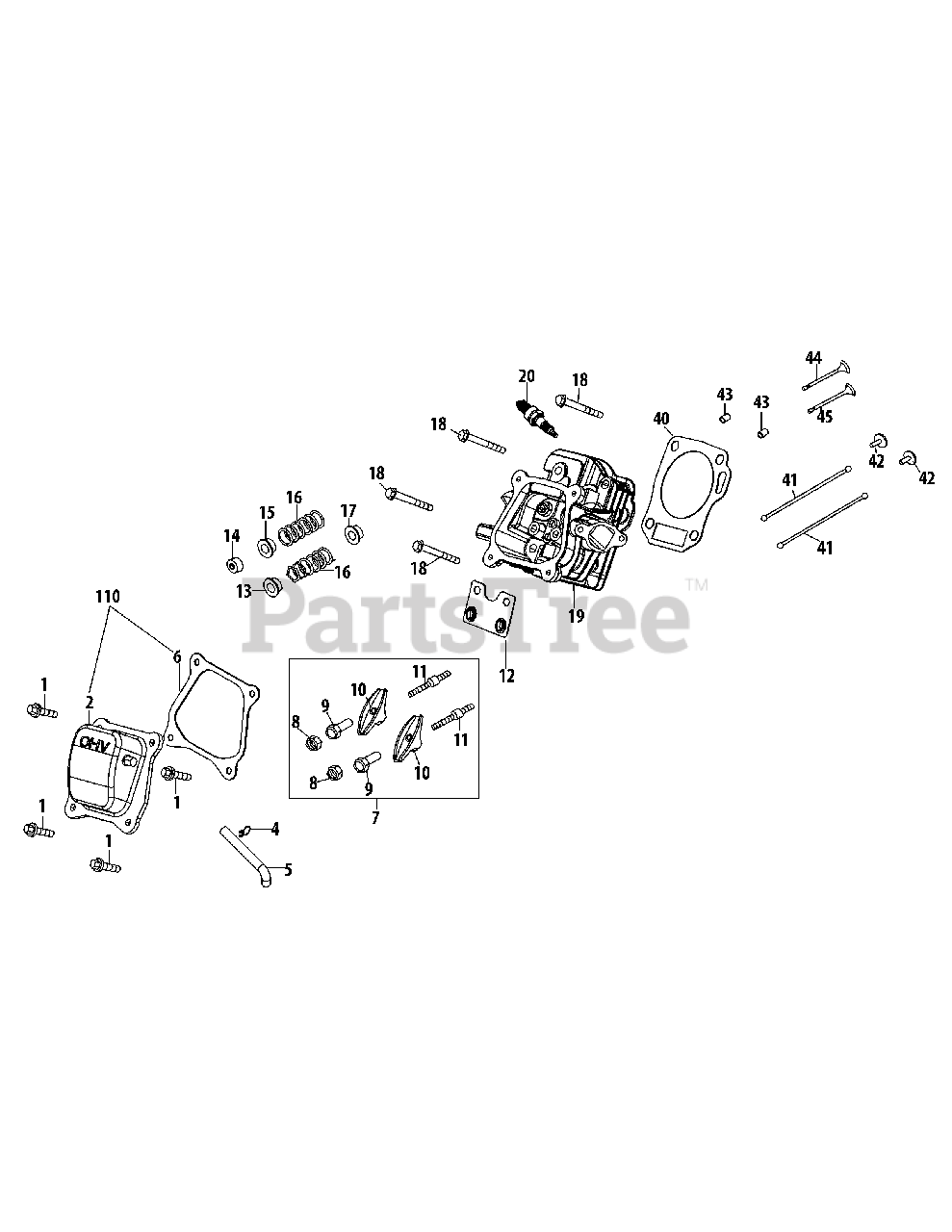

265-JU-11 Cylinder Head Parts Diagram

  • Title

1

Cub Cadet 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-07059

Breather Hose

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 13

0

7

Cub Cadet 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

9

Cub Cadet 751-11123

Adjusting Nut, Valve

$10.99

$

In Stock, only 4 left!

0

10

Cub Cadet 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

12

Cub Cadet 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-12000

Retainer, Intake Valve Spring

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 951-12002

Adjuster, Exhaust Valve
(Superseded to 751P12002A)

$2.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-12003

Retainer, Exhaust Valve Spring

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

Cub Cadet 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 951-10722A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl.6,8-17,19,22,27,28,40,44,45)

$170.99

$

In Stock, only 1 left!

0

20

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

40

Cub Cadet 951-11898

Gasket, Cylinder Head

$11.99

$

In Stock, only 2 left!

0

41

Cub Cadet 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

42

Cub Cadet 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

43

Cub Cadet 715-04090

Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 3 left!

0

44

Cub Cadet 951-10647A

Exhaust Valve

$64.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-10647A

Intake Valve

$64.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-11063A

Valve Cover Kit
(Superseded to 951-12626)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-12026

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Not shown) (Incl.6,22,27-29,35)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-12028

Gasket Kit - Complete

Note: (Not shown) (Incl.6,22,27-29,35,40,54,55,64,70,79)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-12648

Short Block

Note: (Not shown) (Incl.6,22,27,28,40,42,43,46-49,52-67,70,76-79)

$352.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z265-JU-11

Complete Engine
(Superseded to 952Z265-JU-12)

Note: (Not shown)

$787.99

$

Usually ships in 3-6 days

0
