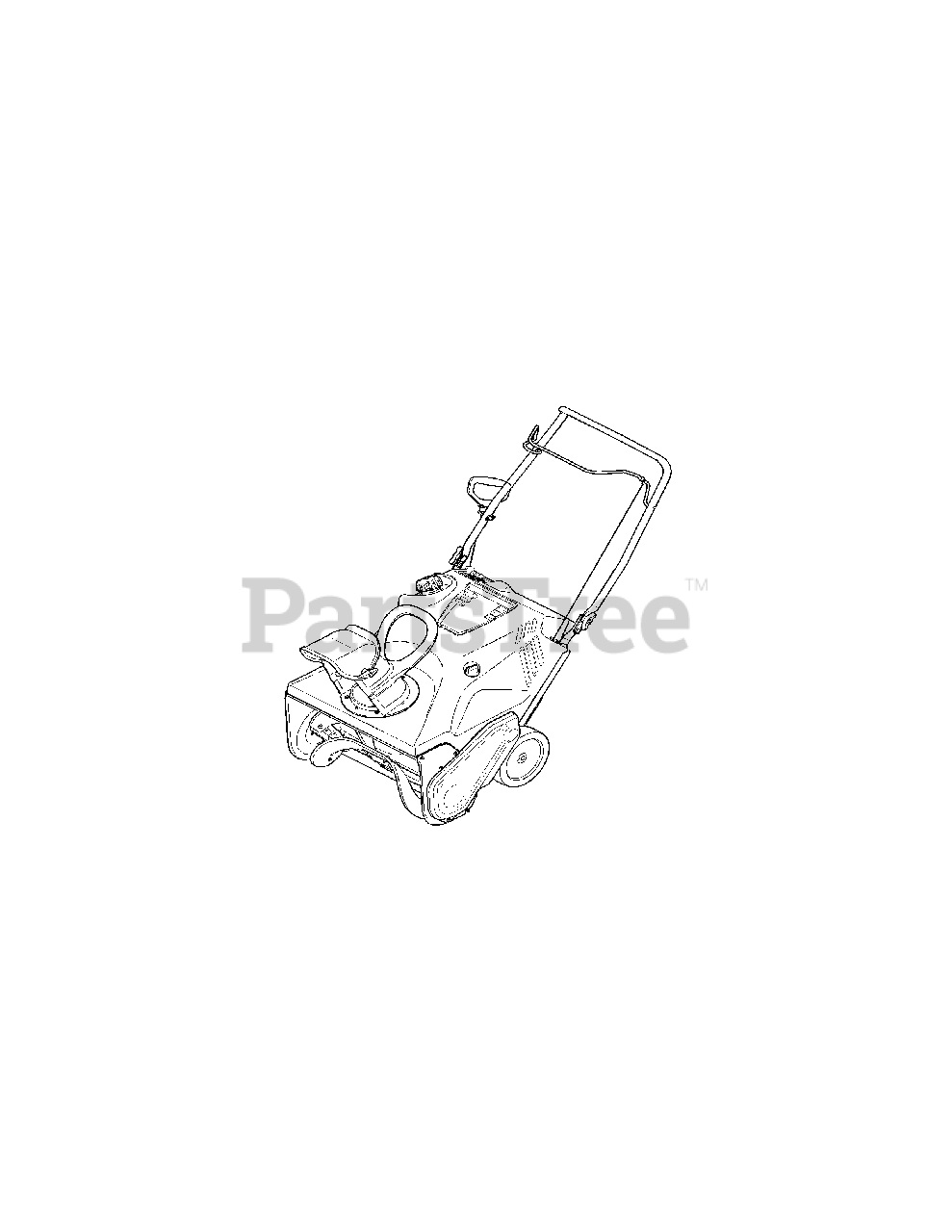

221 HP (31AS2S5D710) - Cub Cadet 21" Snow Thrower (2010) .Quick Reference Parts Diagram

21" Snow Thrower

.Quick Reference Parts Diagram

  • Title

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 731-05632

Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 7

0

Cub Cadet 751-10487

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, only 1 left!

0

Cub Cadet 929-0071A

3-Prong Extension Cord
(Superseded to 929-0071B)

Note: (If equipped)

$21.99

$

In Stock, only 2 left!

0

Cub Cadet 946-04701

Auger Cable

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 984-04364

Auger Assembly Complete

$247.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04362-0637

Auger Assembly Axle

Note: (w/o paddles and center auger bracket)

$

$

Not available

Cub Cadet 931-07667

Shave Plate

$16.99

$

In Stock, only 1 left!

0

Cub Cadet 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 14

0

Cub Cadet 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

Cub Cadet 735-04237

Rubber Paddle

$23.99

$

In Stock, Qty 6

0

Cub Cadet 753-06469

Auger Rubber Paddle Replacement Kit

Note: (Includes 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

Cub Cadet 634-04347

Wheel

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 490-241-0034

Garage Floor Mower Mat (36" x 24")
(Superseded to 735-04255)

Note: (Optional Accessory)

$

$

Not available

Cub Cadet SPW-134

Arnold Spark Plug Wrench 3/4" and 13/16"
(Superseded to 490-850-0018)

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 7

0

Cub Cadet SPW-136

Arnold Spark Plug Wrench 5/8" and 3/4"
(Superseded to 490-850-0018)

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 7

0

Cub Cadet 490-850-0008

Oil Siphon

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 9

0

Cub Cadet 22216

STA-BIL Fuel Stabilizer 32 oz.
(Superseded to 22287)

Note: (Optional Accessory)

$

$

Not available

Cub Cadet 22208

STA-BIL Fuel Stabilizer 8 oz.

Note: (Optional Accessory)

$11.99

$

In Stock, only 4 left!

0
