221 HP (31AS2S5D710) - Cub Cadet 21" Snow Thrower (2010) Drive & Auger Assembly Parts Diagram

21" Snow Thrower

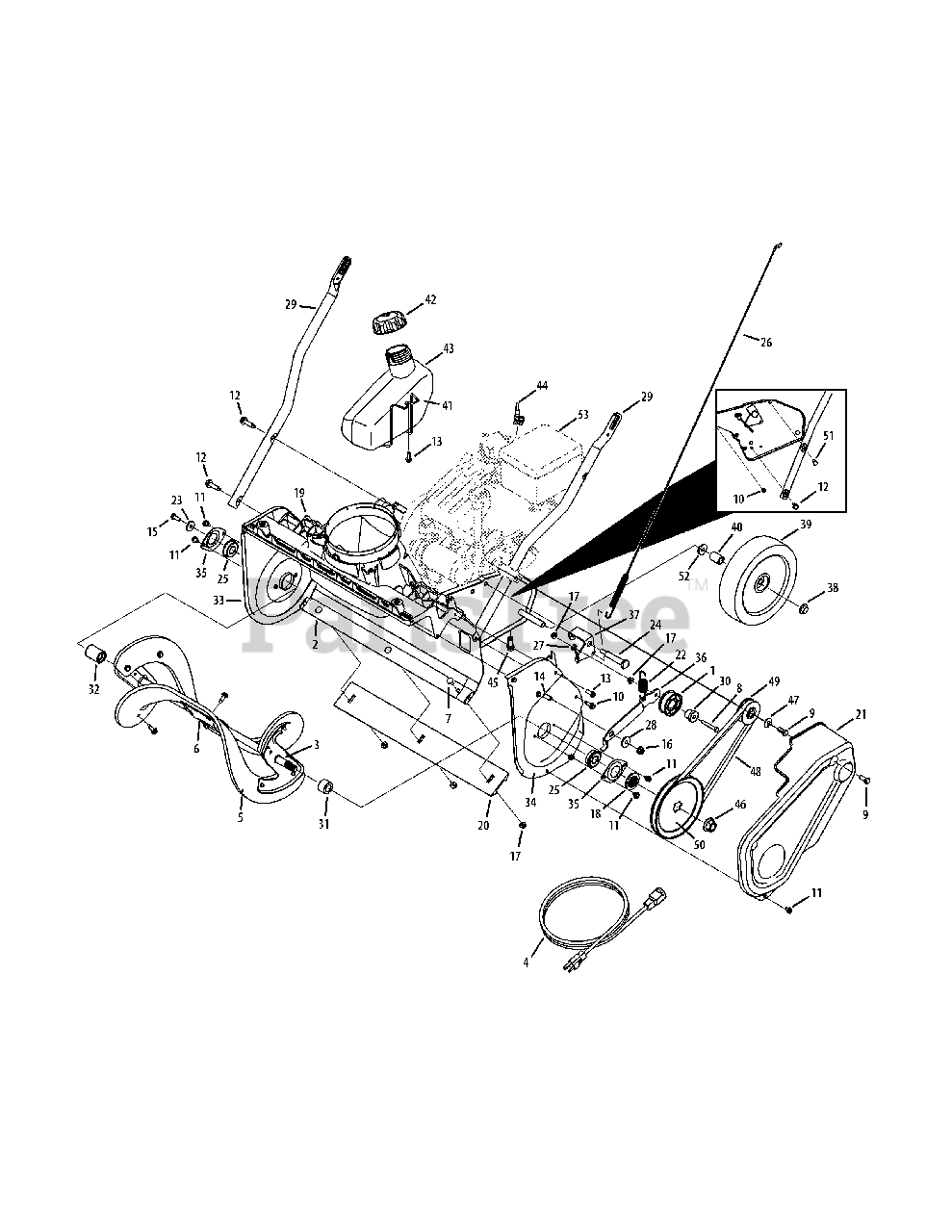

Drive & Auger Assembly Parts Diagram

  • Title

1

Cub Cadet 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

2

Cub Cadet 684-04363-0691

Frame
(Superseded to 753-11131A)

$138.99

$

In Stock, only 2 left!

0

3

Cub Cadet 984-04364

Auger Assembly Mount

$247.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 929-0071A

3-Prong Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

5

Cub Cadet 753-06469

Auger Replacement Kit

Note: (Inc. 2 Paddles and 12 Hex Washer Screws)

$90.99

$

In Stock, Qty 20+

0

6

Cub Cadet 790-00427

Center Auger Bracket

Variations

Cub Cadet 790-00427-0637

Auger Center Bracket - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0136

Hex Screw, 1/4-20 x 1.757

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0642

Hex Washer Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

12

Cub Cadet 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

13

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3296

Hex Lock Screw, 1/4-20 x .750

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, only 4 left!

0

17

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 718-04737

Pulley Hub

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 931-07626

Chute Adapter
(Superseded to 931-07626B)

$42.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 931-07667

Shave Plate

$16.99

$

In Stock, Qty 7

0

21

Cub Cadet 731-07737

Belt Cover
(Superseded to 731-07737A)

$28.99

$

In Stock, only 3 left!

0

22

Cub Cadet 732-04748

Extension Spring, .70 x 3.035

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

24

Cub Cadet 738-04456

Shoulder Bolt, 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

25

Cub Cadet 741-04188A

Ball Bearing, .625 x 37 x 12

$12.99

$

In Stock, only 2 left!

0

26

Cub Cadet 946-04701

Clutch Cable

$23.99

$

In Stock, Qty 11

0

27

Cub Cadet 747-05360

Drive Cable Wire Support
(Superseded to 747-05360A)

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 749-04694-0637

Lower Handle

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

31

Cub Cadet 750-04758

LH Auger Spacer

$6.49

$

In Stock, Qty 9

0

32

Cub Cadet 750-05393

RH Auger Spacer

$5.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 790-00390-0691

RH Auger Plate

$

$

Not available

34

Cub Cadet 790-00391-0691

LH Auger Plate
(Superseded to 790-00391)

$40.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 790-00403-0691

Bearing Cup

$

$

Not available

36

Cub Cadet 790-00406-0637

Idler Bracket

$

$

Not available

37

Cub Cadet 790-00426-0637

Cable Idler Bracket

$8.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

39

Cub Cadet 634-04347

Wheel, 8"

$48.99

$

In Stock, only 1 left!

0

40

Cub Cadet 750-05417

Sleeve Spacer, .525 x .78 x 1.00

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-05341

Gas Tank Wire Support

$

$

Not available

42

Cub Cadet 751-10487

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

43

Cub Cadet 751-11648

Fuel Tank
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

44

Cub Cadet 731-07664

Choke Extension Lever

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0654A

Hex Washer Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 4 left!

0

46

Cub Cadet 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

47

Cub Cadet 736-0371

Flat Washer, .343 x .88 x .062

$4.49

$

In Stock, only 3 left!

0

48

Cub Cadet 954-04050

Belt, .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

49

Cub Cadet 956-0416B

Pulley Half, .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

50

Cub Cadet 756-04443

Pulley, 1/2 x 6.00

$23.99

$

In Stock, only 4 left!

0

51

Cub Cadet 710-05183

Hex Screw, 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

53

Cub Cadet 952Z265-JU

Replacement Engine
(Superseded to 952Z265-JU-12)

Note: Model 221 HP

$787.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 952Z370-JU

Replacement Engine
(Superseded to 952Z370-JUA)

Note: Model 221 LHP

$849.99

$

Usually ships in 3-6 days

0
