22045 - Toro 53cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) FUEL TANK AND BRACKET ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

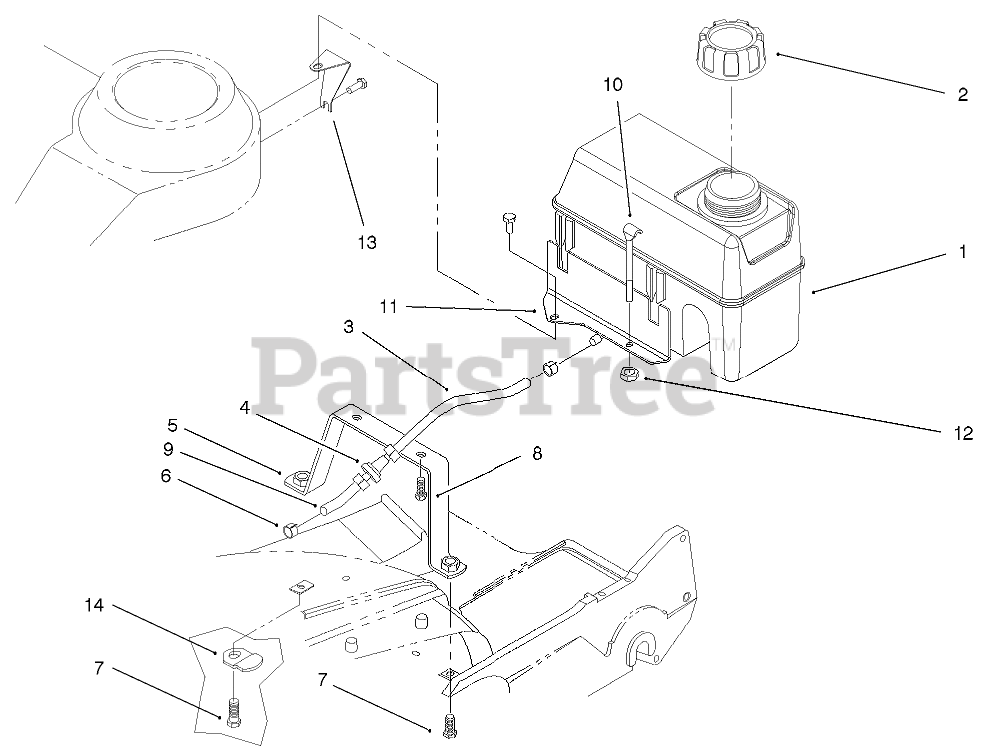

FUEL TANK AND BRACKET ASSEMBLY Parts Diagram

  • Title
1

Toro 104-1327

TANK-GAS
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

2

Toro 93-7199

GAS CAP ASM

$

$

Not available

3

Toro 68-3633

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

4

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

5

Toro 84-9160-03

BASE-TANK
(Superseded to 107-4131-03)

$

$

Not available

6

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

9

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

10

Toro 77-2840

RETAINER - FUEL TANK

$62.99

$

Usually ships in 3-6 days

0

11

Toro 74-2110-03

BRACKET-TANK

$20.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

13

Toro 77-0520-03

SUPPORT-TANK BRACKET

$6.49

$

Usually ships in 3-6 days

0

14

Toro 84-8930

SHIELD-RETAINER

$3.49

$

Usually ships in 3-6 days

0
