22045 - Toro 53cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND AIR FILTER ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

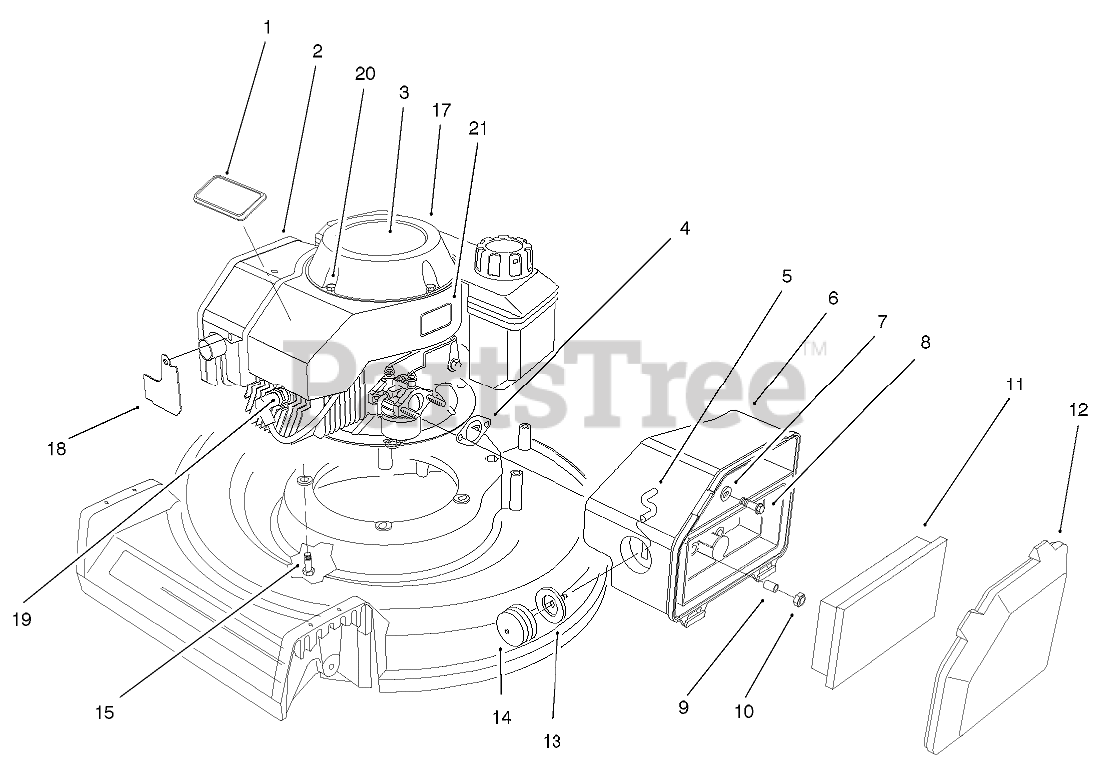

ENGINE AND AIR FILTER ASSEMBLY Parts Diagram

  • Title

1

Toro 71-1260

DECAL - PROLINE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 51-0404

ENGINE ASM - BBC 2 CYCLE

$

$

Not available

3

Toro 104-1334

DECAL-2 CYC RECOIL

$11.99

$

Usually ships in 3-6 days

0

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

5

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

6

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

7

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

8

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

9

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

11

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 2 left!

0

12

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

15

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

17

Toro 81-2030

STARTER ASM
(Superseded to 81-5940)

$

$

Not available

18

Toro 93-7661

EXTENSION-MUFFLER GUARD

$

$

Not available

19

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

20

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

21

Toro 93-6659

DECAL-FUEL, 2 CYCLE

$8.49

$

In Stock, only 1 left!

0
