22043 - Toro Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) CRANKSHAFT ASSEMBLY(MODEL NO. 47PT7-7) Parts Diagram

Recycler Walk-Behind Mower

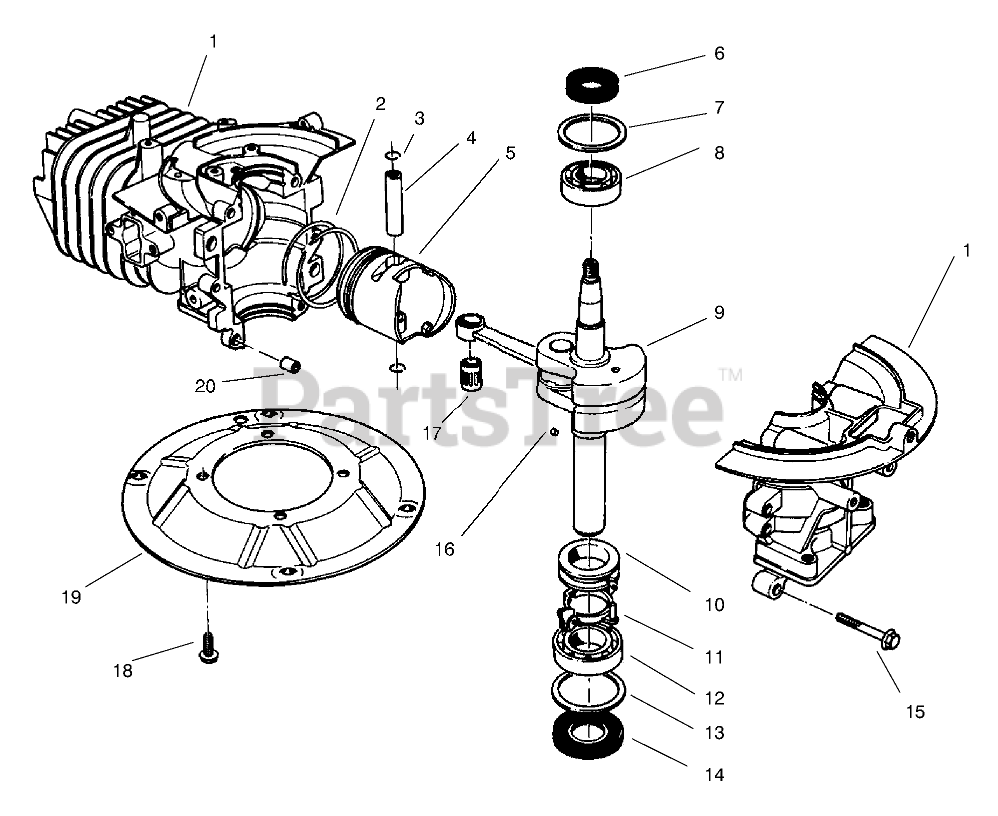

CRANKSHAFT ASSEMBLY(MODEL NO. 47PT7-7) Parts Diagram

  • Title

1

Toro 94-1685

Crankcase ASM
(Superseded to 81-2800)

$

$

Not available

2

Toro 81-0590

RING SET

$67.99

$

Usually ships in 3-6 days

0

3

Toro 81-0620

CLIP

$9.99

$

Usually ships in 3-6 days

0

4

Toro 81-0600

PIN-PISTON

$62.99

$

Usually ships in 3-6 days

0

5

Toro 81-2140

PISTON

$196.99

$

Usually ships in 3-6 days

0

6

Toro 81-0720

OIL SEAL

$18.99

$

In Stock, only 1 left!

0

7

Toro 81-0710

WASHER-UPPER

$21.99

$

Usually ships in 3-6 days

0

8

Toro 81-0690

BEARING-UPPER

$139.99

$

In Stock, only 1 left!

0

9

Toro 81-5830

Crankshaft/Connecting Rod Assembly
(Superseded to 81-4670)

$

$

Not available

10

Toro 81-0770

SPACER

$

$

Not available

11

Toro 81-0750

BRACKET

$55.99

$

Usually ships in 3-6 days

0

12

Toro 81-0700

LOWER BRG

$87.99

$

In Stock, only 1 left!

0

13

Toro 81-0730

WASHER-LOWER

$

$

Not available

14

Toro 81-0740

SEAL-OIL

$27.99

$

In Stock, only 1 left!

0

15

Toro 81-0540

BOLT

$

$

Not available

16

Toro 81-0760

PIN

$5.99

$

In Stock, only 1 left!

0

17

Toro 81-0610

BEARING

$

$

Not available

18

Toro 81-0570

BOLT

$9.49

$

In Stock, only 3 left!

0

19

Toro 81-0560

PLATE-MOUNTING

$234.99

$

Usually ships in 3-6 days

0

20

Toro 81-0520

PIN

$

$

Not available

Toro 98-2049

ASM-SHORT BLOCK 2 CYC BBC

Note: Not illustrated

$

$

Not available
