22043 - Toro Recycler Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

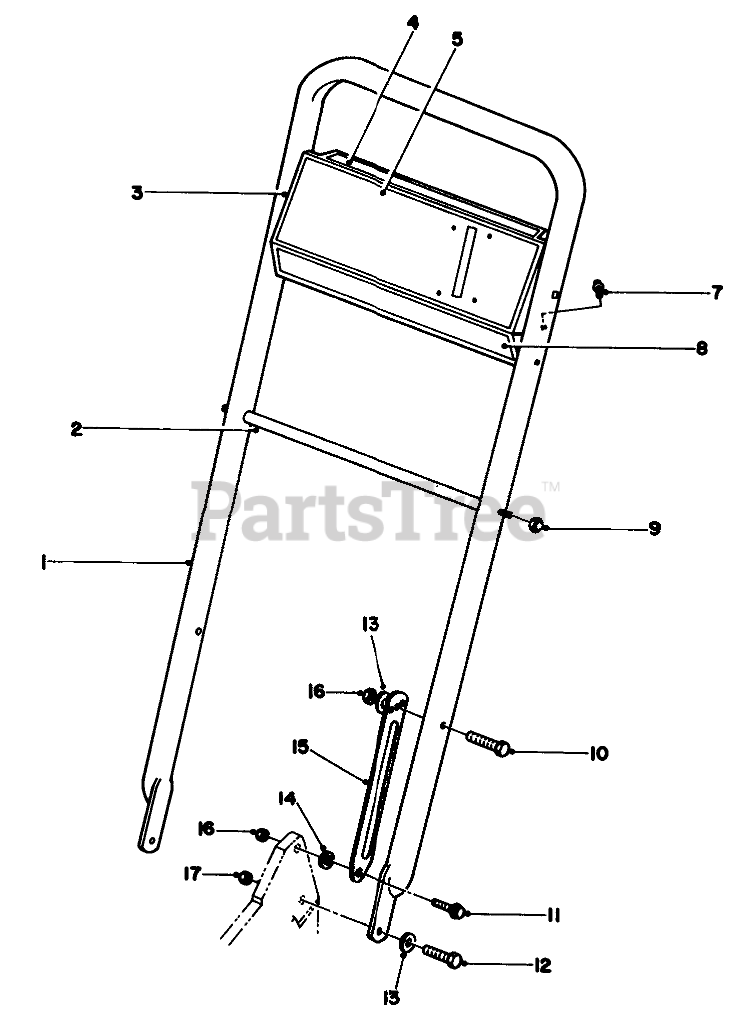

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 84-8860

Handle
(Superseded to 98-2385-03)

$141.99

$

In Stock, only 1 left!

0

2

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

3

Toro 14-7709

Panel-Control (Incl. Ref. #4, 5, & 8)

$100.99

$

Usually ships in 3-6 days

0

4

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

5

Toro 85-6730

DECAL-CONTROL PANEL

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 85-6720

DECAL-PANEL, PROLINE
(Superseded to 106-0771)

$18.99

$

Usually ships in 3-6 days

0

9

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

12

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

15

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 1 left!

0

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
