22042 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

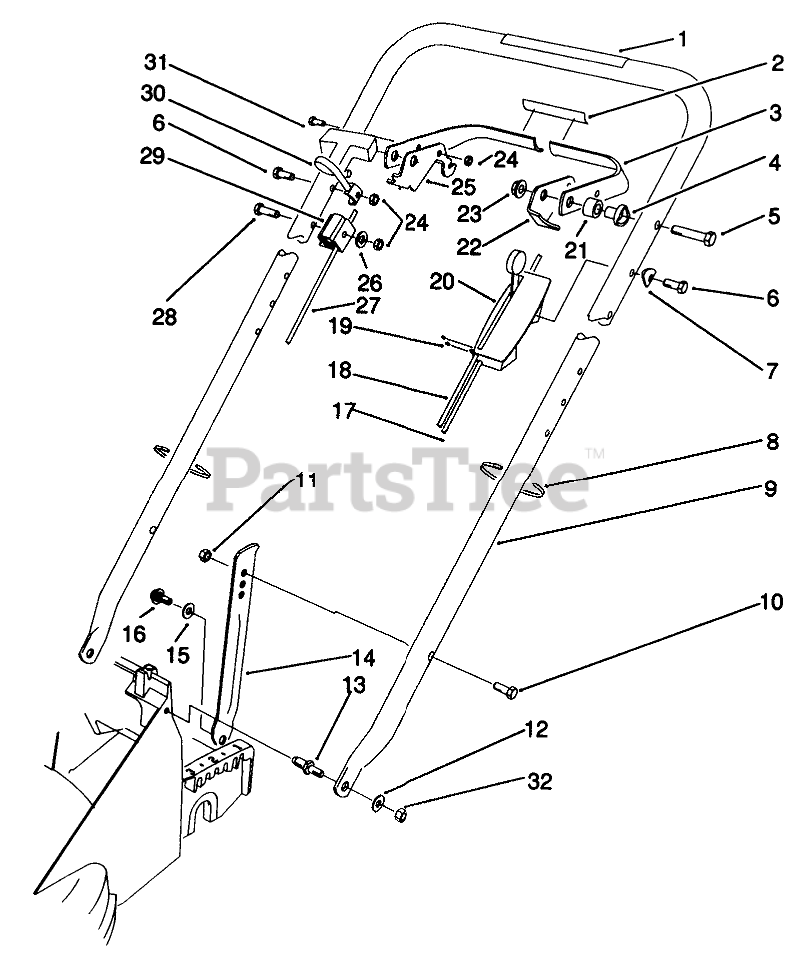

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 82-5580

DECAL - WARNING/INSTR

$

$

Not available

Toro 63-8540

DECAL - HANDLE

$

$

Not available

2

Toro 71-1290

DECAL-TRACTION CONTROL

$

$

Not available

Toro 62-7590

DECAL - INT'L TRACTION

$

$

Not available

3

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0

4

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

7

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 14-2529

Handle (Incl. Ref. #1)(Model No. 22685 Only)

$

$

Not available

Toro 14-2539

Handle (Incl. Ref. #1)(Model No. 22042 Only)

$

$

Not available

10

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 74-2130

SHOULDER STUD SCREW

$

$

Not available

14

Toro 65-5731

HANDLE LATCH B

$29.99

$

Usually ships in 3-6 days

0

15

Toro 256-313

NYLON WASHER

$

$

Not available

16

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

17

Toro 74-1931

TRACTION CABLE

$

$

Not available

18

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

19

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

20

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

Toro 82-9952

BRACKET-CONTROL, THROTTLE

$90.99

$

Usually ships in 3-6 days

0

21

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

22

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

23

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

25

Toro 77-5270

LEVER-CONTROL

$28.99

$

Usually ships in 3-6 days

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 56-6097

BRAKE CABLE

$

$

Not available

28

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

29

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

30

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
