22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

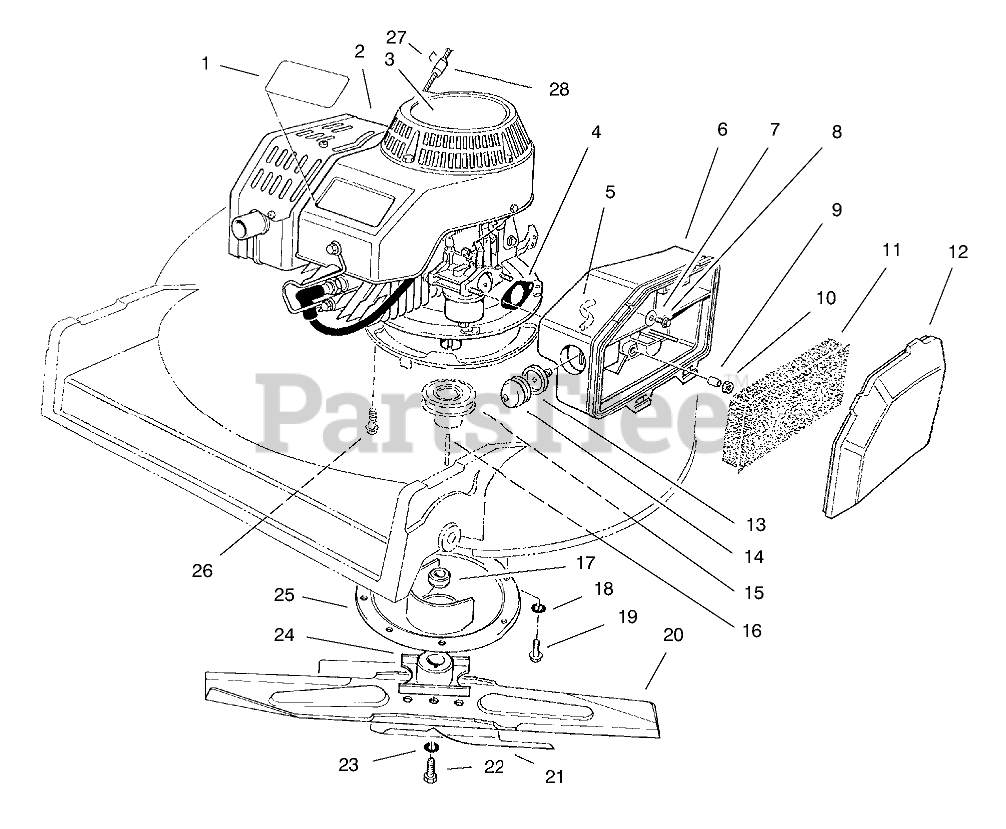

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 71-1260

DECAL - PROLINE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 61-8062

ENGINE ASM
(Superseded to 12-8099)

$

$

Not available

3

Toro 77-0040

DECAL-2 CYC RECOIL COMM

$12.99

$

Usually ships in 3-6 days

0

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

5

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

6

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

7

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

8

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

9

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

10

$6.99

$

In Stock, Qty 5

0

11

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 2 left!

0

12

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

15

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

16

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

17

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

18

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

21

Toro 92-1599

Accelerator
(Superseded to 92-1599-03)

$79.99

$

Usually ships in 3-6 days

0

22

Toro 26-0670

SCREW-BLADE

$

$

Not available

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

24

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

25

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

26

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

27

Staple

Note: Obtain Locally

$

$

Not available

28

Toro 47-2480

STOP-ROPE

$

$

Not available
