22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 079000001 - 079999999) (1997) BRAKE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

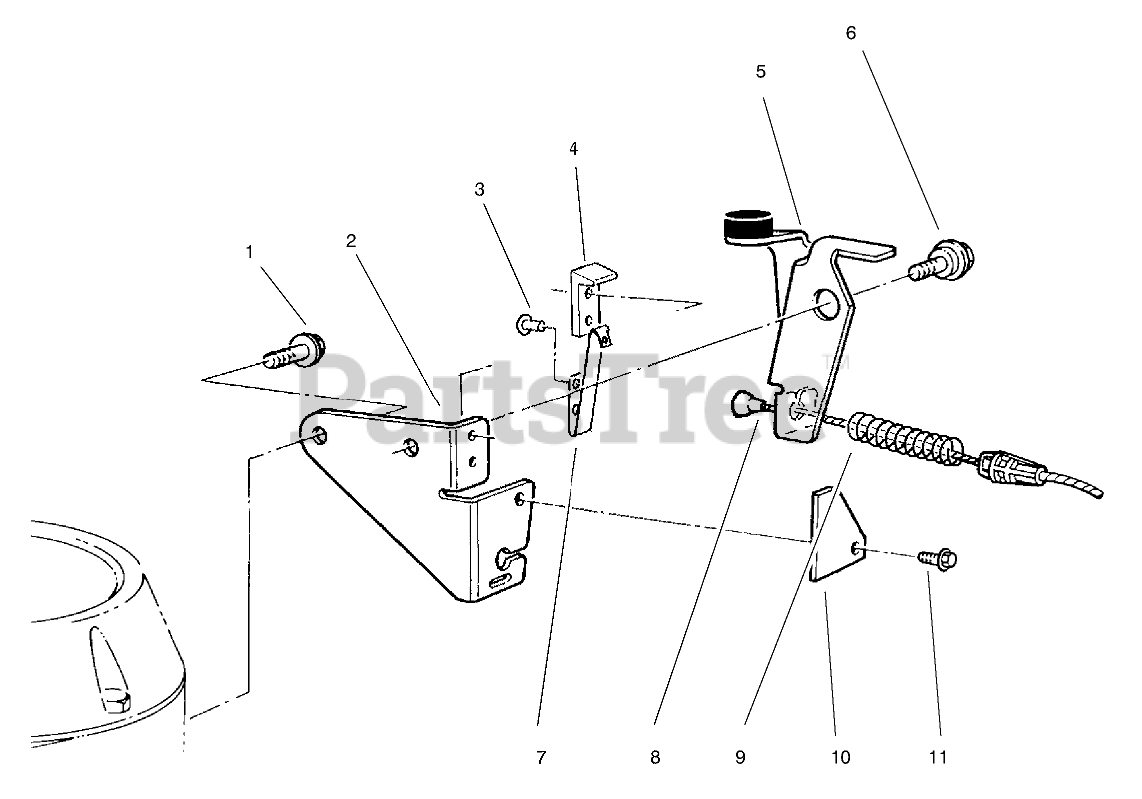

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

2

Toro 84-7820

PLATE-BRAKE

$

$

Not available

3

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

4

Toro 77-5260

STRAP-INSULATING

$2.99

$

Usually ships in 3-6 days

0

5

Toro 66-5380

BRAKE PLATE ASM

$78.99

$

Usually ships in 3-6 days

0

6

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

7

Toro 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

8

Toro 85-6904

CABLE - BRAKE

$43.99

$

In Stock, only 1 left!

0

9

Toro 66-5370

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

10

Toro 53-4690

STOP-GROUND STRAP

$4.49

$

In Stock, only 2 left!

0

11

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

Toro 14-6009

Mounting Plate Assembly (Incl. Ref. #2-4 & 7)

Note: Not illustrated

$

$

Not available
