22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 069000001 - 069999999) (1996) GAS TANK ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

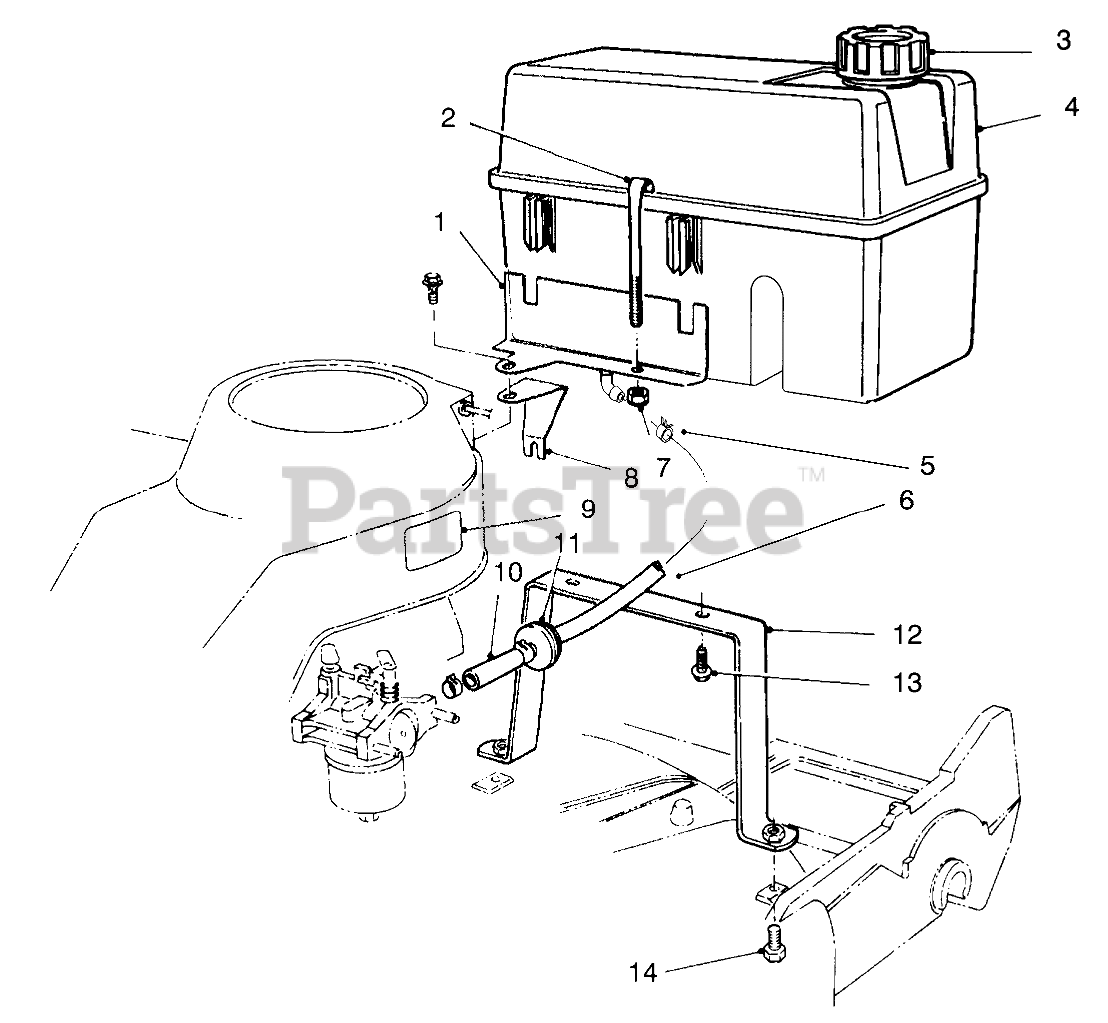

GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 74-2110

Bracket Tank
(Superseded to 74-2110-03)

$20.99

$

Usually ships in 3-6 days

0

2

Toro 77-2840

RETAINER - FUEL TANK

$62.99

$

Usually ships in 3-6 days

0

3

Toro 55-3575

GAS CAP ASM

$20.99

$

Usually ships in 3-6 days

0

4

Toro 94-5827

Tank-Gas
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

5

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

6

Toro 68-3633

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

8

Toro 77-0520

Support-Bracket
(Superseded to 77-0520-03)

$6.49

$

Usually ships in 3-6 days

0

9

Toro 62-7600

DECAL - FUEL

$

$

Not available

10

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

11

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

12

Toro 84-9160

Base-Tank
(Superseded to 84-9160-03)

$43.99

$

In Stock, only 1 left!

0

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
