22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

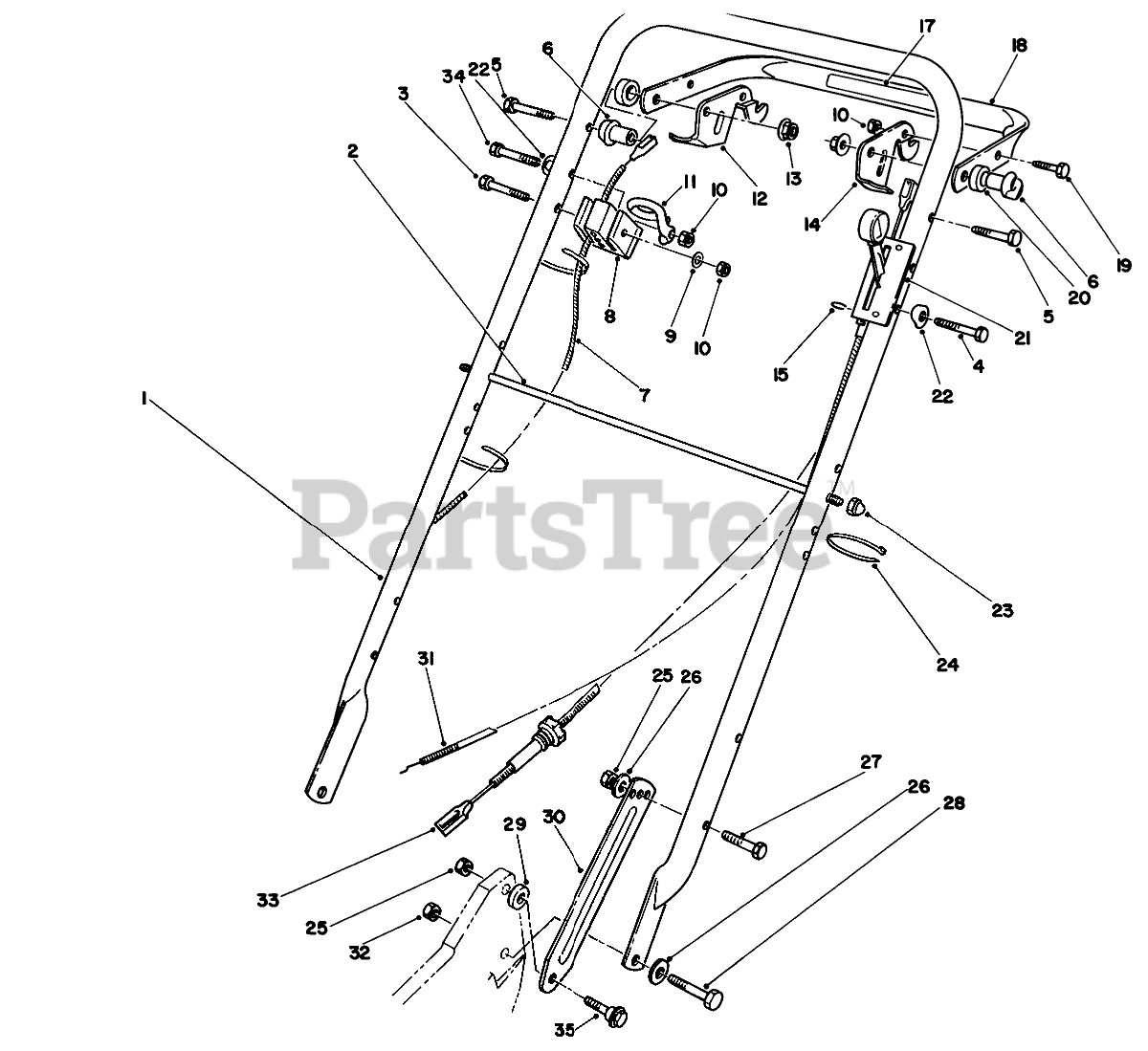

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1586

Handle
(Superseded to 98-2000-03)

$124.99

$

Usually ships in 3-6 days

0

2

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

3

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 85-6903

Cable-Brake
(Superseded to 85-6904)

$43.99

$

In Stock, only 1 left!

0

8

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

12

Toro 77-5270

LEVER-CONTROL

$28.99

$

Usually ships in 3-6 days

0

13

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

14

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

15

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

17

Toro 82-2380

DECAL/TRACTION CONTROL
(Superseded to 106-0690)

$10.99

$

In Stock, Qty 10

0

18

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

21

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

22

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

23

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 9

0

26

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

27

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

30

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

Note: Not illustrated

$9.49

$

In Stock, Qty 6

0

31

Toro 70-1061

CABLE-THROTTLE
(Superseded to 106-0888)

$19.99

$

In Stock, only 2 left!

0

32

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

33

Toro 74-1791

CABLE-TRACTION

$51.99

$

In Stock, only 1 left!

0

34

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

35

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0
