22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

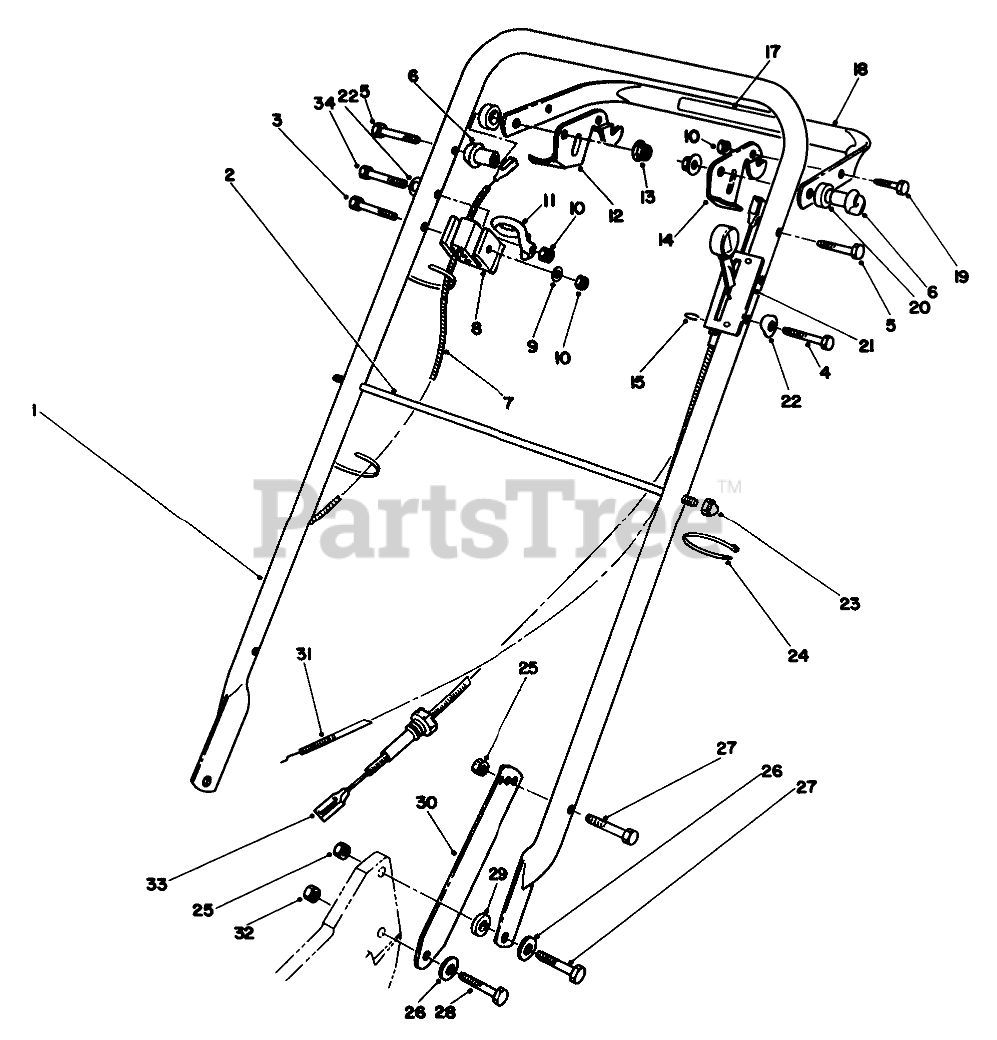

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 66-7420

Handle
(Superseded to 98-2000-03)

$131.99

$

Usually ships in 3-6 days

0

2

Toro 48-2810

ROD-SUPPORT, BAG

$31.99

$

Usually ships in 3-6 days

0

3

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

4

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 85-6903

Cable-Brake
(Superseded to 85-6904)

$43.99

$

In Stock, only 1 left!

0

8

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 46-8081

GUIDE-ROPE

$23.99

$

Usually ships in 3-6 days

0

12

Toro 77-5270

LEVER-CONTROL

$31.99

$

Usually ships in 3-6 days

0

13

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

14

Toro 66-5350

LEVER-CONTROL

$15.99

$

Usually ships in 3-6 days

0

15

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

17

Toro 82-2380

DECAL/TRACTION CONTROL
(Superseded to 106-0690)

$10.99

$

In Stock, Qty 10

0

18

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$109.99

$

Usually ships in 3-6 days

0

19

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

21

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

22

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

23

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

27

Toro 5-1470

SCREW-HH

$0.99

$

In Stock, Qty 10

0

28

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

29

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

30

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

31

Toro 70-1061

CABLE-THROTTLE
(Superseded to 106-0888)

$19.99

$

In Stock, Qty 7

0

32

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

33

Toro 74-1791

CABLE-TRACTION

$51.99

$

In Stock, Qty 5

0

34

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0
