22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 020000001 - 029999999) (1992) BRAKE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

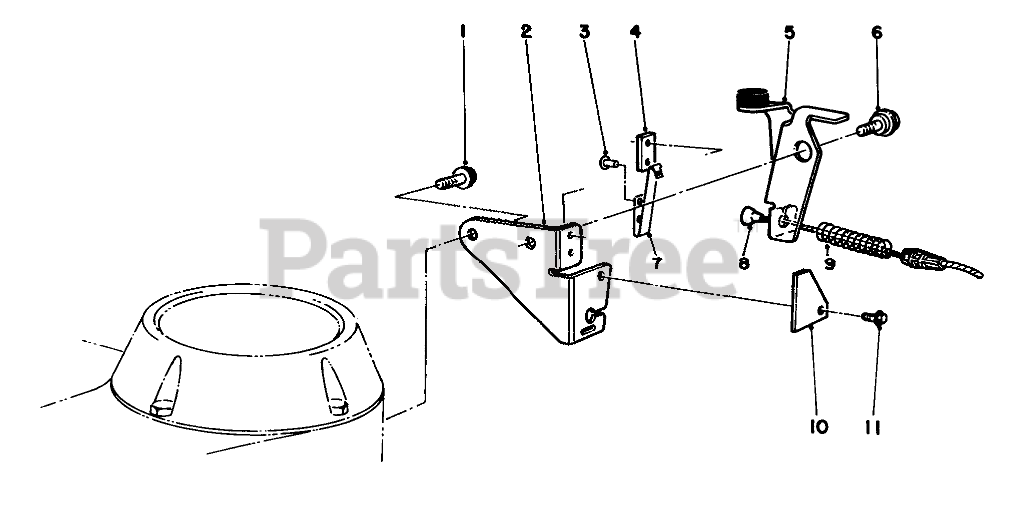

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

2

Toro 84-7820

PLATE-BRAKE

$

$

Not available

3

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

4

Toro 77-5260

STRAP-INSULATING

$2.99

$

Usually ships in 3-6 days

0

5

Toro 66-5380

BRAKE PLATE ASM

$84.99

$

Usually ships in 3-6 days

0

6

Toro 56-6190

Screw-Shoulder
(Superseded to 92-9698)

$5.99

$

In Stock, only 2 left!

0

7

Toro 60-9010

STRAP-GROUND

$15.99

$

Usually ships in 3-6 days

0

8

Toro 85-6903

Cable-Brake
(Superseded to 85-6904)

$41.99

$

In Stock, only 1 left!

0

9

Toro 66-5370

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

10

Toro 53-4690

STOP-GROUND STRAP

$4.99

$

In Stock, only 2 left!

0

11

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

Toro 14-6009

Mounting Plate Assembly (Incl. Ref. #2-4 & 7)

Note: Not illustrated

$

$

Not available
