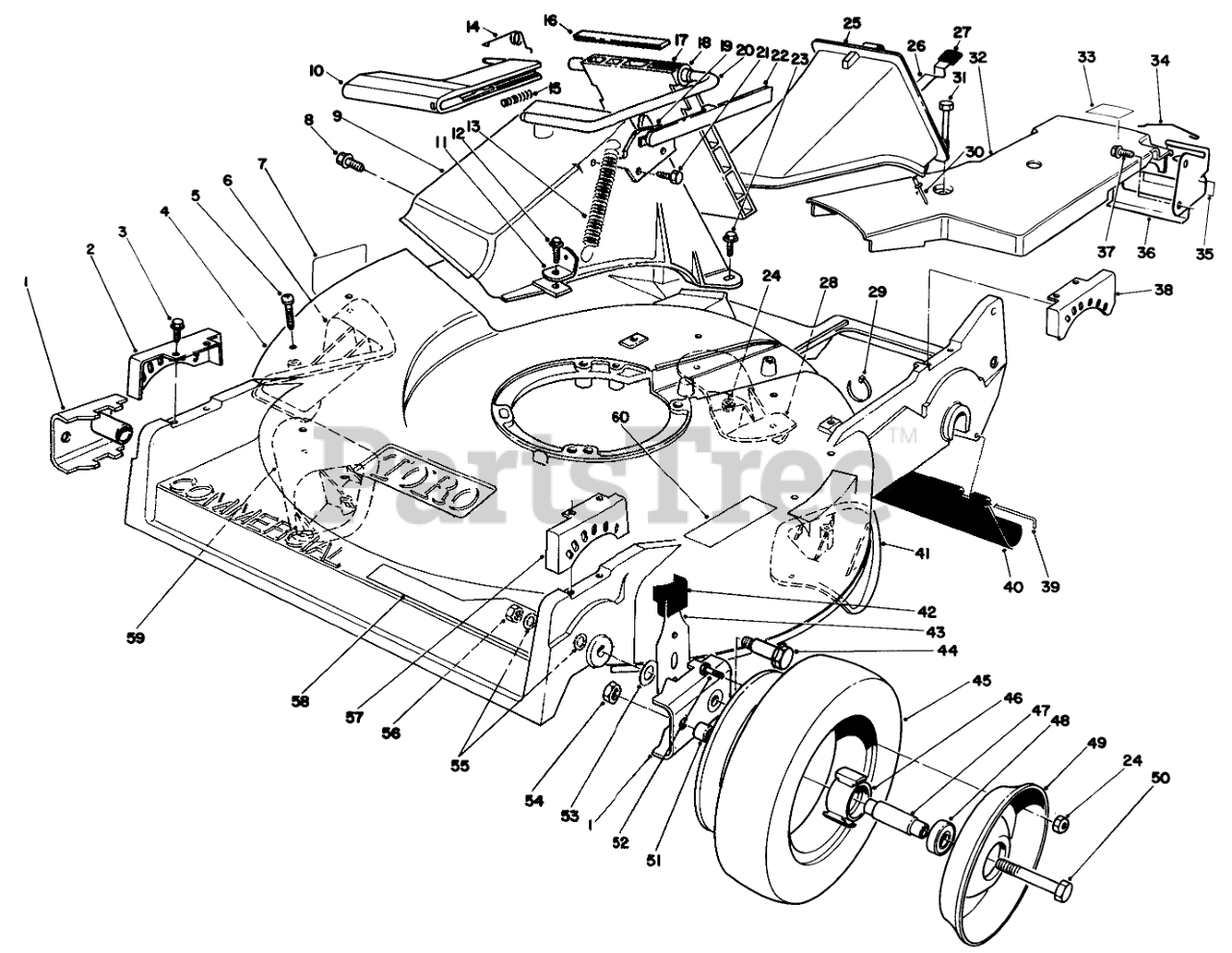

22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 14-3529

Housing-Commercial (Incl. Ref. #7, 58, & 60)
(Superseded to 14-9499)

$1134.99

$

Usually ships in 3-6 days

0

5

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

6

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

7

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

10

Toro 46-3520

Handle-Door

$

$

Not available

11

Toro 76-4560

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

14

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

15

Toro 46-7060

Spring

$

$

Not available

16

Toro 46-6821

Cover-Door

$

$

Not available

17

Toro 46-3511

Door-Discharge
(Superseded to 77-0200)

$

$

Not available

18

Toro 23-0880

BUSHING-NYLON

$

$

Not available

19

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

20

Toro 76-4580

Rod-Door

$

$

Not available

21

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

22

Toro 49-4170

Cover-Handle

$

$

Not available

23

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 6

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

25

Toro 77-0500

Plug-Discharge (Incl. Ref. #26, 27, & 30)

$75.99

$

Usually ships in 3-6 days

0

26

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

27

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

28

Toro 76-2150

KICKER

$29.99

$

Usually ships in 3-6 days

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

30

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

31

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

32

Toro 74-1770

COVER-BELT

$46.99

$

In Stock, only 4 left!

0

33

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$3.49

$

In Stock, only 2 left!

0

34

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

35

Toro 74-1970

DECAL-POSITION, GEAR

$7.49

$

In Stock, Qty 6

0

36

Toro 74-1740

BRKT-TRACTION ADJ.
(Superseded to 74-1741)

$24.99

$

Usually ships in 3-6 days

0

37

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

38

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

39

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

40

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

41

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

42

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

43

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

44

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

45

$34.99

$

In Stock, only 3 left!

0

46

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

47

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

48

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

49

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

50

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

51

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

52

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

53

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

54

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

55

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

56

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

57

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

58

Toro 82-8190

DECAL - RECYCLER

$

$

Not available

59

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0

60

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #24, 45-49, & 52)
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

Toro 77-0200

Door Assembly (Incl Ref. #10, 14-18, 20 & 22)

$

$

Not available
