22040 - Toro 21" ProLine Recycler II Walk-Behind Mower (SN: 010000001 - 019999999) (1991) BRAKE ASSEMBLY Parts Diagram

21" ProLine Recycler II Walk-Behind Mower

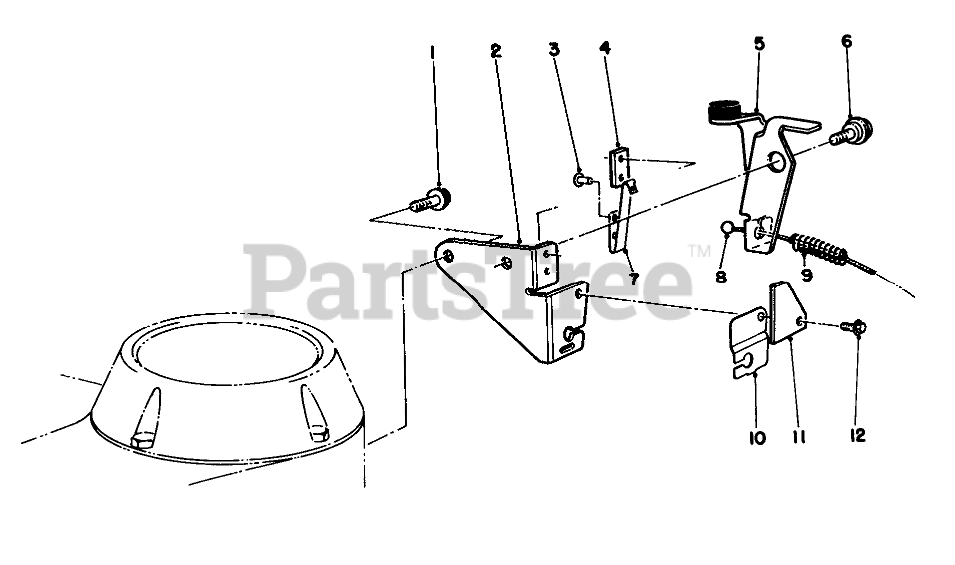

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

2

Toro 53-4620

Plate-Mounting
(Superseded to 14-6009)

$

$

Not available

3

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

4

Toro 77-5260

STRAP-INSULATING

$2.99

$

Usually ships in 3-6 days

0

5

Toro 66-5380

BRAKE PLATE ASM

$78.99

$

Usually ships in 3-6 days

0

6

Toro 56-6190

Screw-Shoulder
(Superseded to 92-9698)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

8

Toro 56-6095

Cable-Brake
(Superseded to 85-6904)

$43.99

$

In Stock, only 1 left!

0

9

Toro 66-5370

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

10

Toro 53-4610

CABLE CLAMP

$

$

Not available

11

Toro 53-4690

STOP-GROUND STRAP

$4.49

$

In Stock, only 1 left!

0

12

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

Toro 12-4599

Mounting Plate Assembly (Incl. Ref. #2-4 & 7)
(Superseded to 14-6009)

$

$

Not available
