22038 - Toro 53cm Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

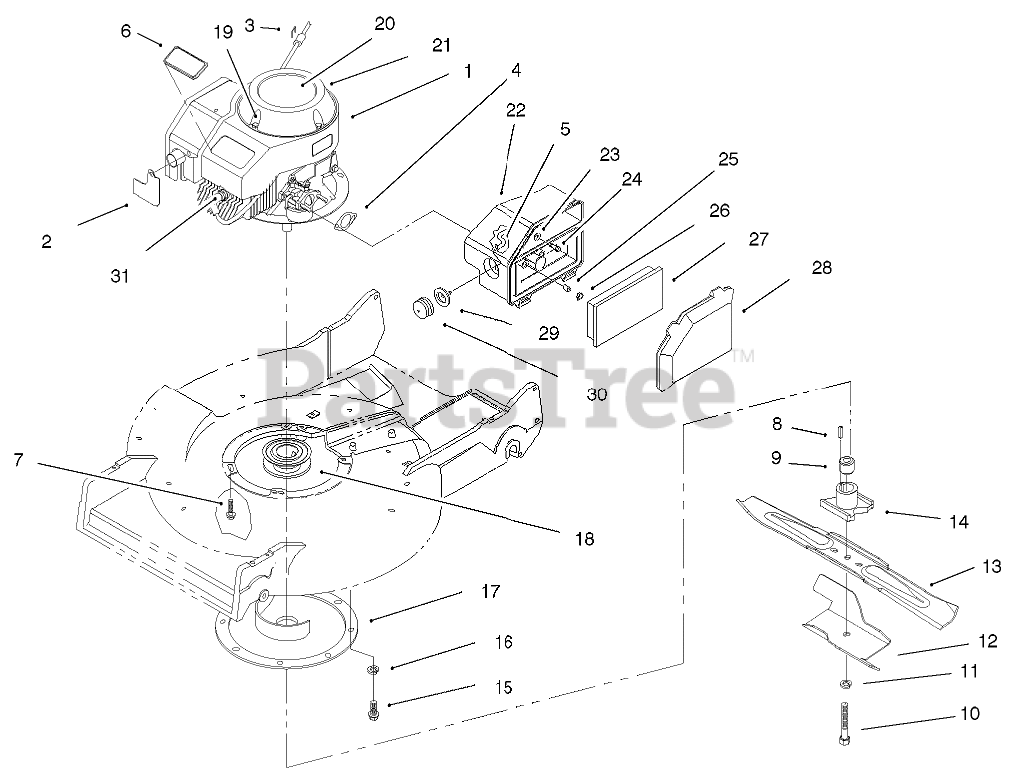

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 98-2040

ENGINE-121CC 2 CYC
(Superseded to 12-8099)

$

$

Not available

2

Toro 93-7661

EXTENSION-MUFFLER GUARD

$

$

Not available

3

Toro 3290-443

STAPLE

$

$

Not available

4

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

5

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

7

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

8

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

20

Toro 104-1334

DECAL-2 CYC RECOIL

$11.99

$

Usually ships in 3-6 days

0

21

Toro 81-5940

RECOIL ASM

$

$

Not available

22

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

23

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

24

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

25

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

26

$6.99

$

In Stock, Qty 5

0

27

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 3 left!

0

28

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

29

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

30

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

31

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0
