22038 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

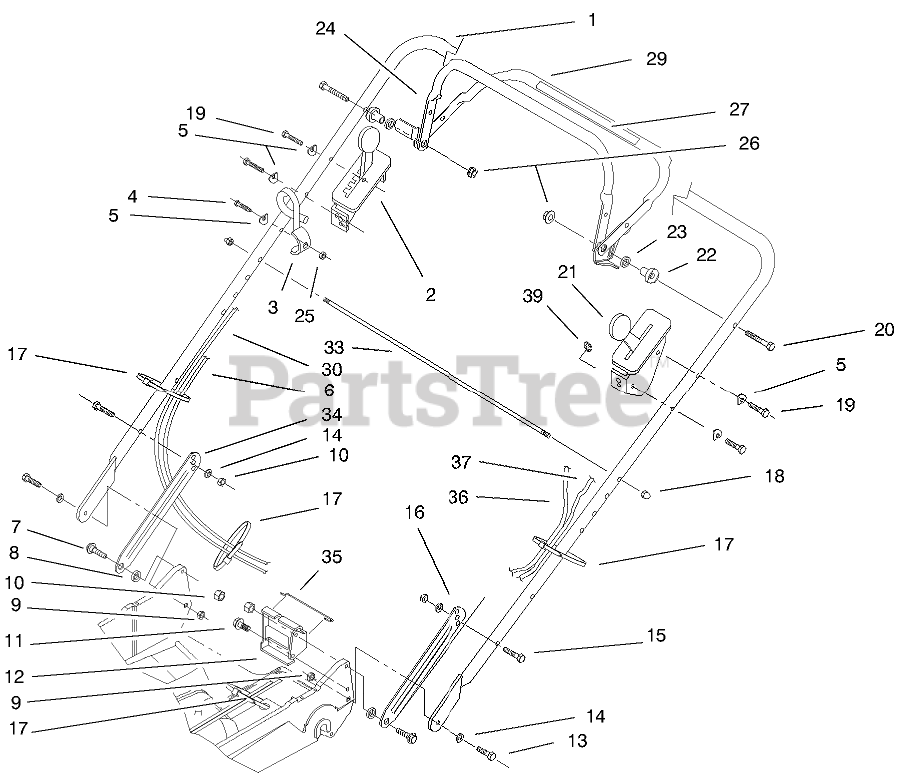

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-2545-03

HANDLE-PROLINE

$

$

Not available

2

Toro 99-2544

CONTROL-SHIFT
(Superseded to 116-0504)

$96.99

$

Usually ships in 3-6 days

0

3

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

4

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

6

Toro 99-2543

CABLE-SHIFT

$144.99

$

Usually ships in 3-6 days

0

7

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

8

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

9

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 74-1741-03

BRACKET-ADJUSTMENT, TRACTION
(Superseded to 74-1741)

$24.99

$

Usually ships in 3-6 days

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 84-8361-03

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

19

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

20

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 14

0

21

Toro 82-9952

BRACKET-CONTROL, THROTTLE

$90.99

$

Usually ships in 3-6 days

0

22

Toro 49-1631

SPACER-SUPPORT

$6.49

$

In Stock, only 1 left!

0

23

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Toro 94-4370-03

BRAKE BAIL ASM

$

$

Not available

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

27

Toro 94-6046

DECAL-OPERATION

$

$

Not available

29

Toro 94-4371-03

TRACTION BAIL ASM

$

$

Not available

30

Toro 99-2546

CABLE-BRAKE

$

$

Not available

33

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

34

Toro 84-8401-03

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 6

0

35

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

36

Toro 74-1791

CABLE-TRACTION

$51.99

$

In Stock, only 1 left!

0

37

Toro 70-1061

CABLE-THROTTLE
(Superseded to 106-0888)

$19.99

$

In Stock, only 2 left!

0

39

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0
