22038 - Toro 53cm Walk-Behind Mower (SN: 079000001 - 079999999) (1997) MUFFLER ASSEMBLY (MODEL NO. 47PS5-3)(MODEL NO. 22038B)(MODEL NO. 47PT6-3)(MODEL NO. 22038) Parts Diagram

53cm Walk-Behind Mower

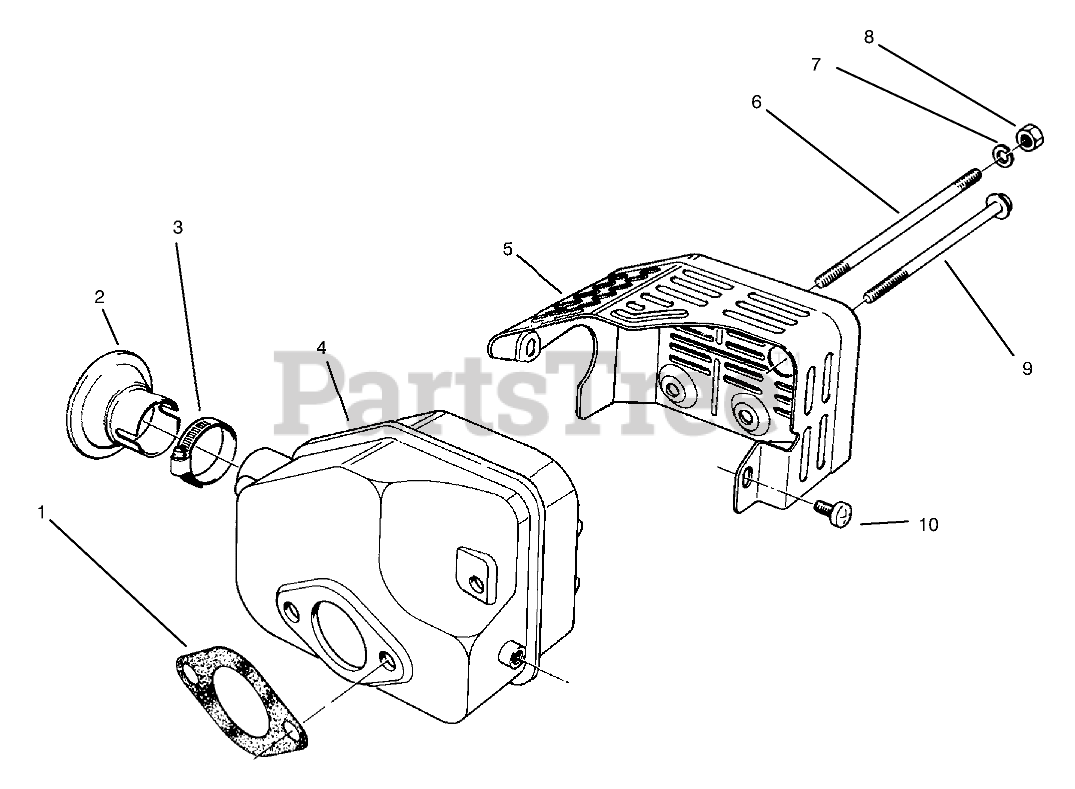

MUFFLER ASSEMBLY (MODEL NO. 47PS5-3)(MODEL NO. 22038B)(MODEL NO. 47PT6-3)(MODEL NO. 22038) Parts Diagram

  • Title
1

Toro 81-1080

GASKET

$8.49

$

In Stock, only 4 left!

0

2

Toro 81-0200

Arrestor-Spark

$

$

Not available

3

Clamp

Note: Obtain Locally

$

$

Not available

4

Toro 81-5690

MUFFLER

$

$

Not available

5

Toro 81-2450

COVER-MUFFLER

$

$

Not available

6

$

$

Not available

7

Toro 81-1120

WASHER-LOCK

$2.49

$

In Stock, only 1 left!

0

8

$

$

Not available

9

$9.99

$

Usually ships in 3-6 days

0

10

Toro 81-1140

SCREW

$6.99

$

Usually ships in 3-6 days

0
