22037 B - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

21" ProLine Recycler Walk-Behind Mower

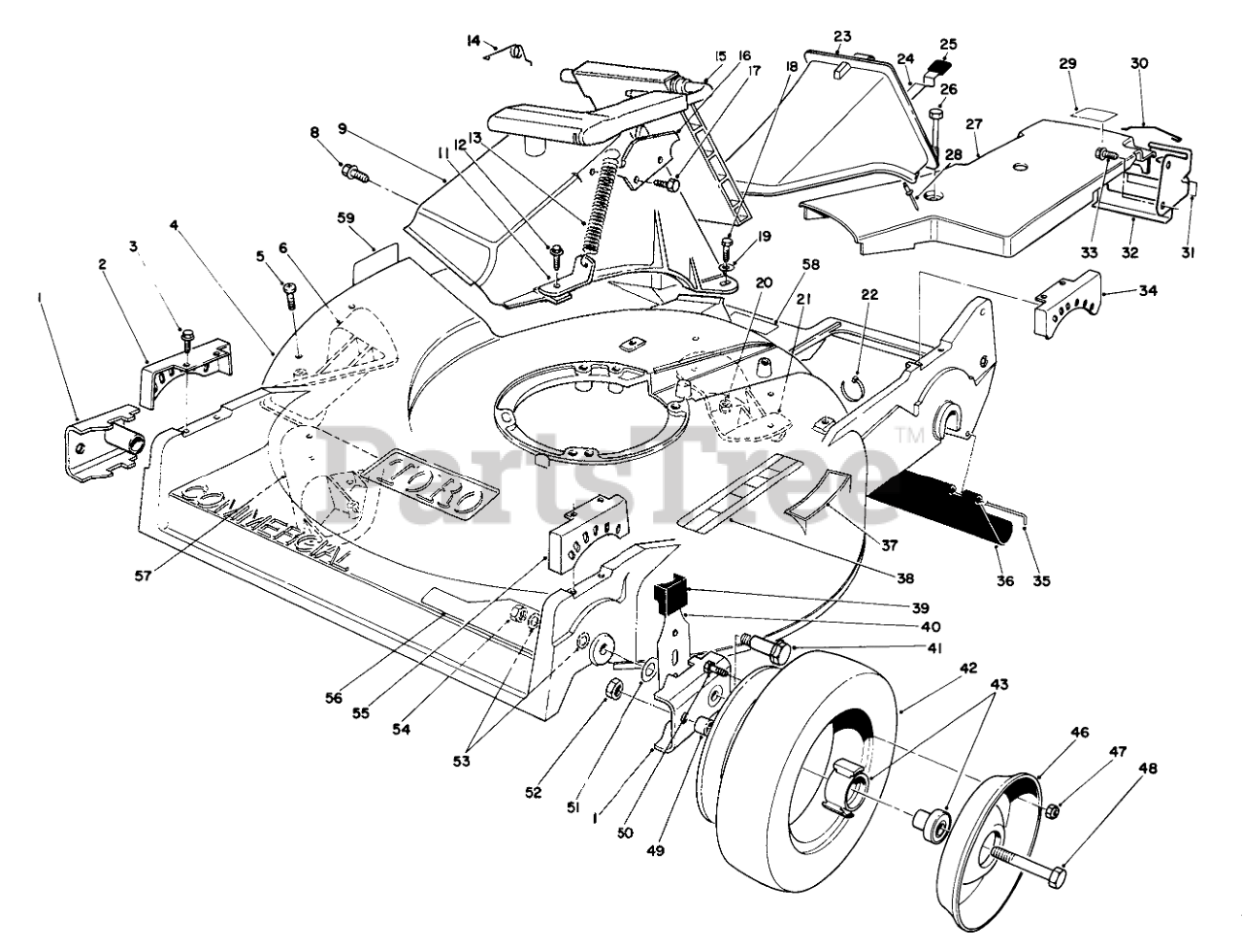

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, only 2 left!

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, Qty 6

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 14-9759

Housing-Commercial (Incl. Ref. #37, 38, & 59)
(Superseded to 16-9129)

$

$

Not available

5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 82-9151

TUNNEL-DISCHARGE

$164.99

$

Usually ships in 3-6 days

0

11

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

13

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 5

0

14

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

15

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

16

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

17

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

18

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, only 3 left!

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 77-0502

Plug Assembly (Incl. Ref. #24, 25, & 28)

$123.99

$

Usually ships in 3-6 days

0

24

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

25

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

26

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

27

Toro 74-1770

COVER-BELT

$43.99

$

In Stock, only 4 left!

0

28

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

29

Toro 62-7580

Label-Grease
(Superseded to 93-6664)

$7.49

$

Usually ships in 3-6 days

0

30

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

31

Toro 74-1970

DECAL-POSITION, GEAR

$6.49

$

In Stock, Qty 6

0

32

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$23.99

$

Usually ships in 3-6 days

0

33

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

34

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$26.99

$

In Stock, only 4 left!

0

35

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

36

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

37

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

38

Toro 92-1780

DECAL - DANGER

$

$

Not available

39

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

40

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 7

0

41

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

42

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

43

Toro 92-8905

Hub Ass-y
(Superseded to 99-5872)

$

$

Not available

46

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

49

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

50

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

51

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

52

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

53

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

54

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

55

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, only 4 left!

0

56

Toro 92-8781

DECAL - DECK

$

$

Not available

57

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

58

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

59

Toro 92-9077

DECAL - DIN/DANGER

$

$

Not available

Toro 92-6532

Wheel & Tire Assembly (Incl. Ref. #42-43, 46-47, & 50)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 3 left!

0
