22036 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

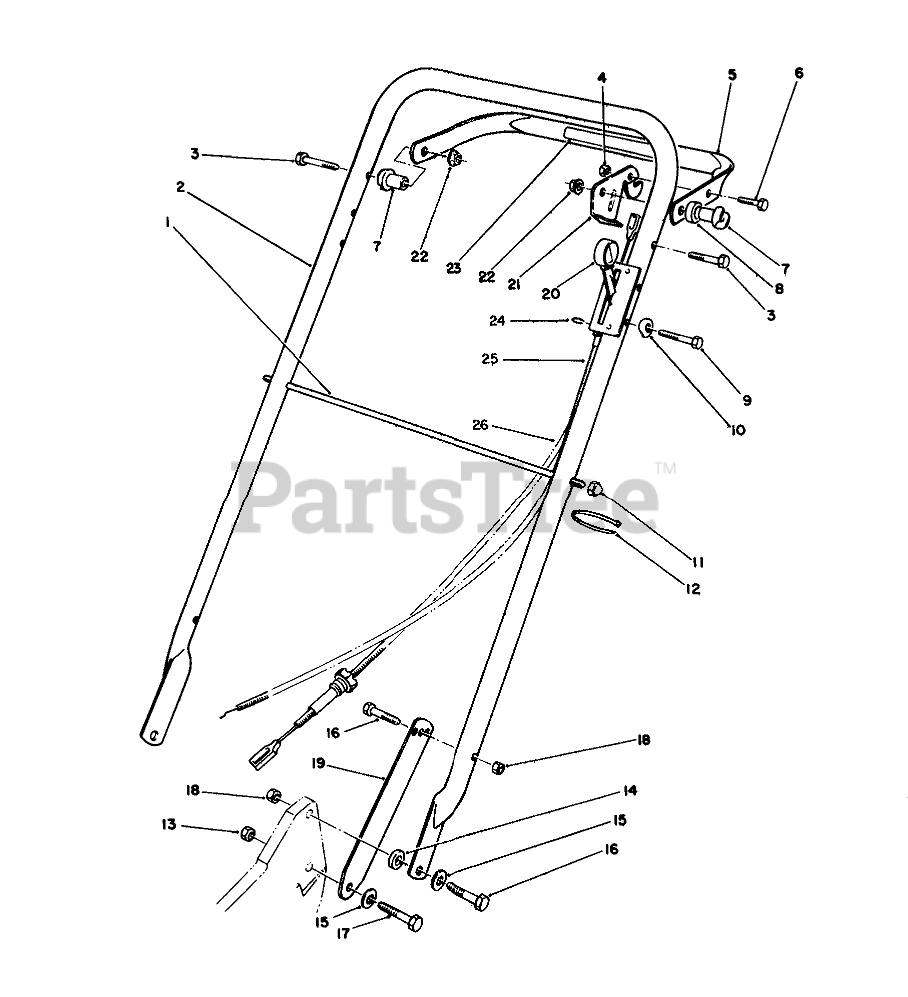

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

2

Toro 66-7420

Handle
(Superseded to 98-2000-03)

$124.99

$

Usually ships in 3-6 days

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

9

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

10

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

11

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

14

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

15

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

19

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

20

Toro 70-1050

Bracket Throttle
(Superseded to 82-9953)

$

$

Not available

21

Toro 74-1820

CONTROL LEVER

$

$

Not available

22

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

23

Toro 62-7590

DECAL - INT'L TRACTION

$

$

Not available

24

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

25

Toro 70-1061

CABLE-THROTTLE
(Superseded to 106-0888)

$19.99

$

In Stock, only 2 left!

0

26

Toro 74-1790

Cable-Traction
(Superseded to 74-1791)

$51.99

$

In Stock, only 1 left!

0
