22035 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

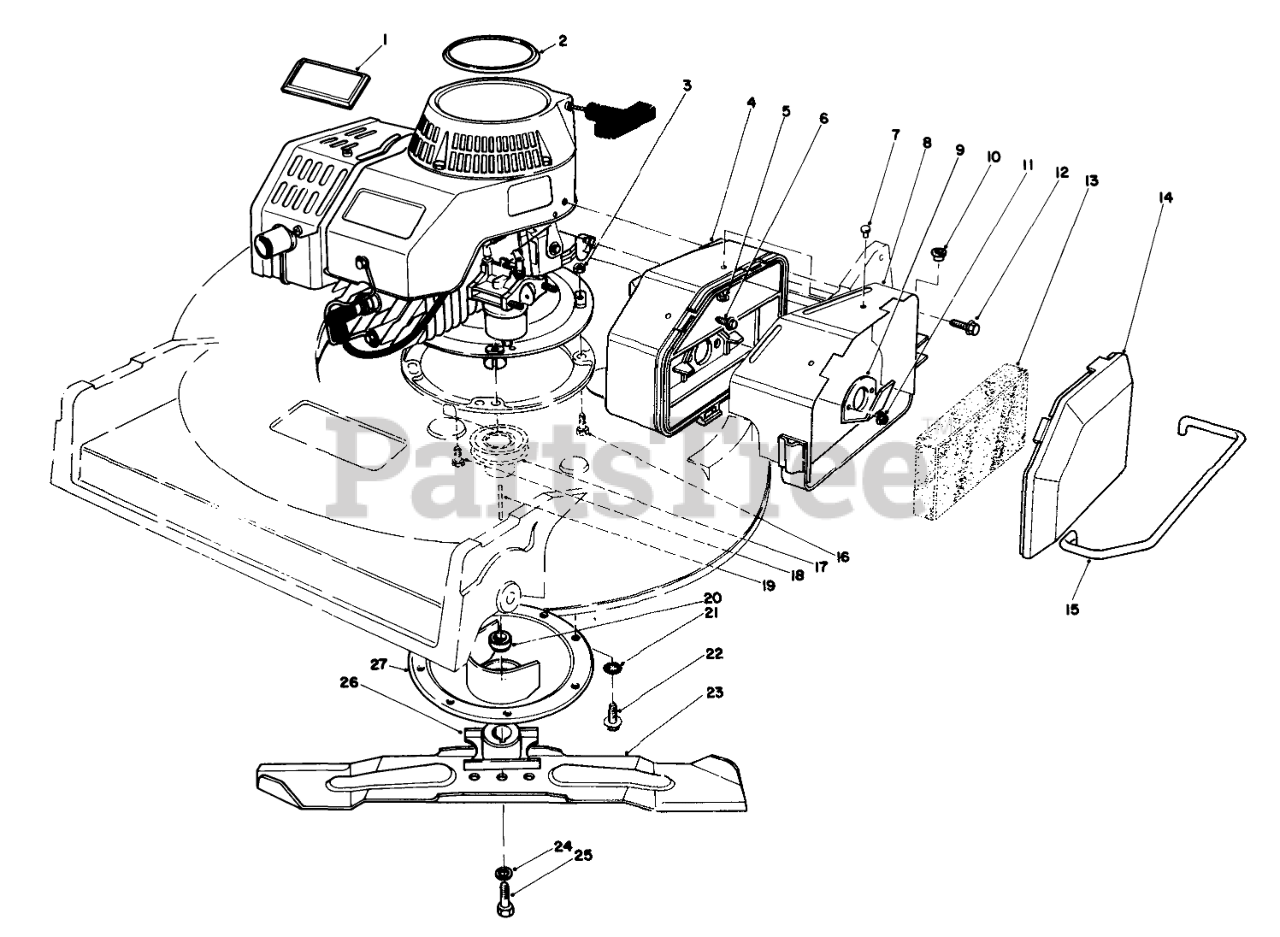

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.99

$

Usually ships in 3-6 days

0

2

Toro 49-9030

Plate-Engine Logo
(Superseded to 77-0040)

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

4

Toro 52-2200

Air Cleaner Assembly (Incl. Ref. #5, 7, 8)

$553.99

$

Usually ships in 3-6 days

0

5

Toro 3269-6

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

7

Toro 3269-5

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

8

Toro 52-2250

AIR CLEANER COVER WA

$

$

Not available

9

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

10

Toro 237-127

5/16 ID BSHG

$

$

Not available

11

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

13

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

14

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

15

Toro 52-2240

AIR CLEANER GUARD

$

$

Not available

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

18

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

20

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

24

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

25

Toro 26-0670

SCREW-BLADE

$

$

Not available

26

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

27

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

Toro 61-8061

Complete Engine
(Superseded to 12-8099)

$

$

Not available
