22035 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

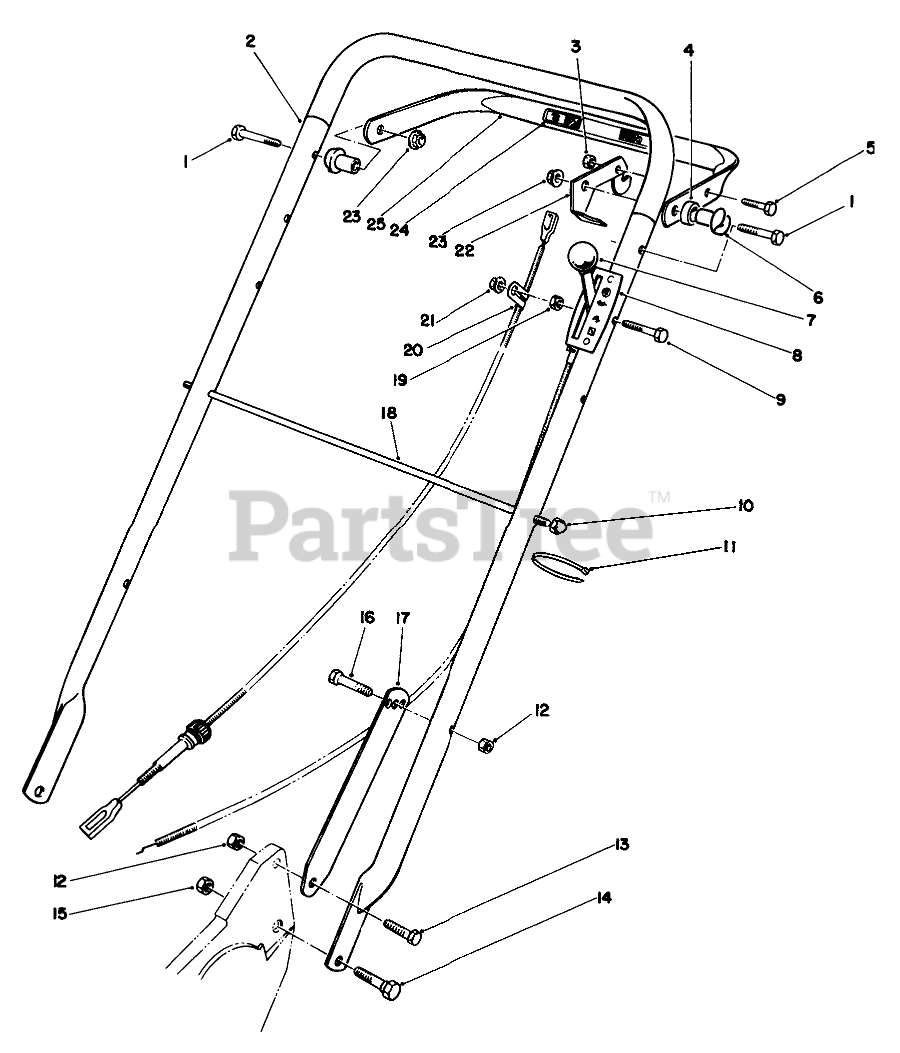

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

2

Toro 61-8260

HANDLE

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

8

Toro 53-7835

THROTTLE CONTROL

$

$

Not available

9

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

15

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 53-7820

Latch-Handle
(Superseded to 65-5830-03)

$

$

Not available

18

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

19

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

20

Toro 55-8030

TRACTION CABLE

$214.99

$

In Stock, only 1 left!

0

21

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

22

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

23

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 62-7590

DECAL - INT'L TRACTION

$

$

Not available

25

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0
