22035 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

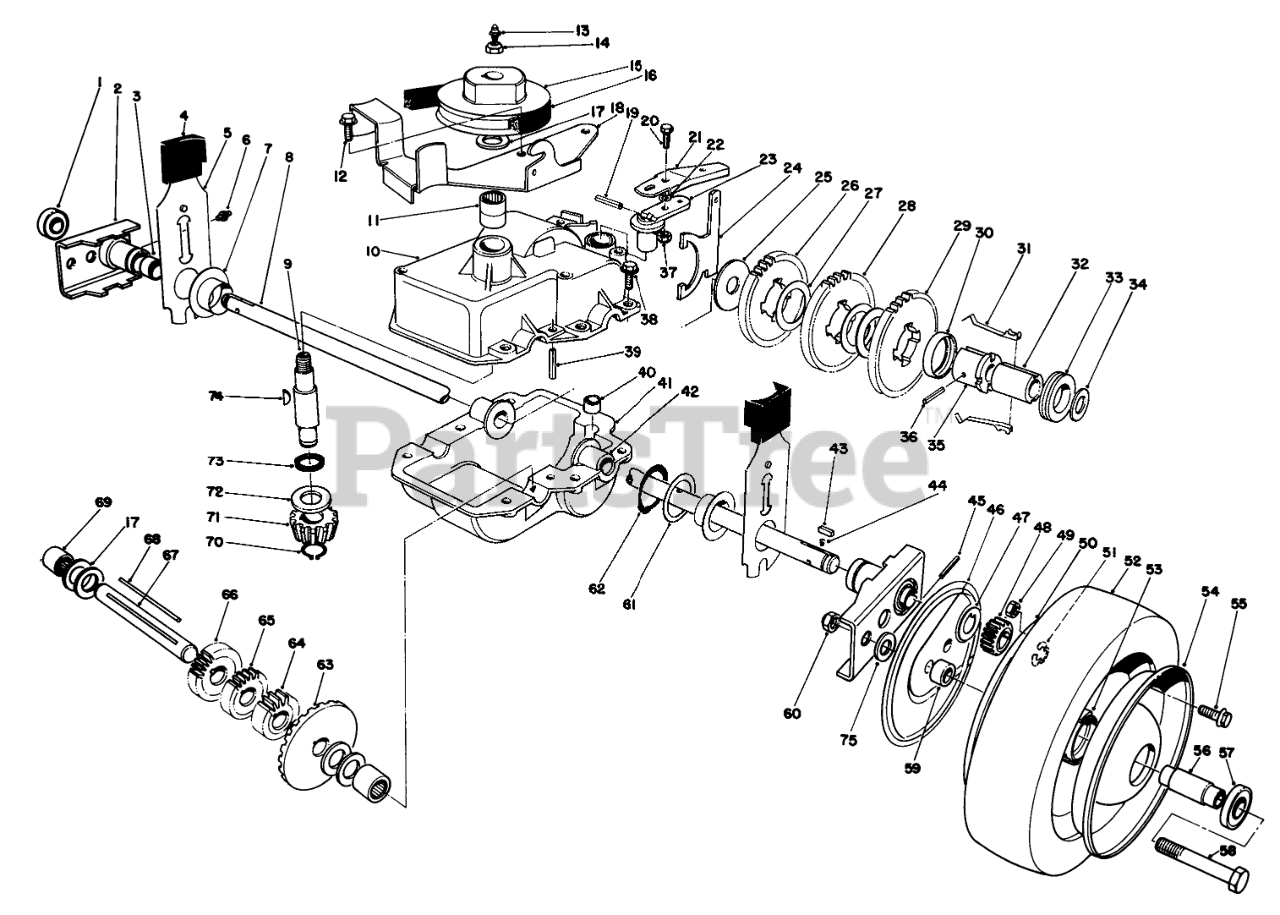

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8050

Ball Bearing
(Superseded to 52-2450)

$17.99

$

In Stock, Qty 20+

0

2

Toro 61-8200

Pivot Arm Assembly (Incl. Ref.#1, 3, & 6)
(Superseded to 74-1851)

$93.99

$

In Stock, only 2 left!

0

3

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

4

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

5

Toro 61-8081

Spring Arm Assembly-Rear
(Superseded to 66-7561)

$13.99

$

In Stock, Qty 6

0

6

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 3 left!

0

7

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

8

Toro 61-8040

Shaft-Output
(Superseded to 77-1030)

$226.99

$

Usually ships in 3-6 days

0

9

Toro 48-2460

Shaft Input
(Superseded to 13-5149)

$71.99

$

Usually ships in 3-6 days

0

10

Toro 11-6029

Upper Case Assembly (Incl. Ref.#11 & 73)
(Superseded to 99-5866)

$

$

Not available

11

Toro 47-7270

BEARING-NEEDLE

$29.99

$

In Stock, only 4 left!

0

12

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

15

Toro 39-6740

PULLEY

$55.99

$

Usually ships in 3-6 days

0

16

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 16

0

17

Toro 36-4790

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

18

Toro 49-8461

Belt Guide Bracket
(Superseded to 49-8461-03)

$

$

Not available

19

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

20

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

21

Toro 55-8040

SHIFT LEVER COVER

$

$

Not available

22

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 29-9560

LEVER-SHIFT

$15.99

$

Usually ships in 3-6 days

0

24

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 2 left!

0

25

Toro 29-9690

WASHER

$12.99

$

Usually ships in 3-6 days

0

26

Toro 42-4740

GEAR-38T

$82.99

$

In Stock, only 2 left!

0

27

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

28

Toro 29-9271

GEAR-42T

$86.99

$

Usually ships in 3-6 days

0

29

Toro 46-3560

GEAR

$77.99

$

In Stock, only 1 left!

0

30

Toro 55-8020

RETAINER-KEY

$8.99

$

Usually ships in 3-6 days

0

31

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

32

Toro 39-6720

SLEEVE

$15.99

$

Usually ships in 3-6 days

0

33

Toro 29-9340

COLLAR-SHIFT

$38.99

$

Usually ships in 3-6 days

0

34

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

35

Toro 55-8010

SLEEVE-GEAR

$19.99

$

In Stock, only 4 left!

0

36

Toro 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

37

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

39

Toro 32121-10

PIN-ROLL

$7.49

$

Usually ships in 3-6 days

0

40

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 3 left!

0

41

Toro 48-2440

Case-Lower

$

$

Not available

42

Toro 48-2450

BUSHING

$15.99

$

Usually ships in 3-6 days

0

43

Toro 39-9680

KEY RECTANGULAR

$5.49

$

In Stock, Qty 20+

0

44

Toro 39-9650

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

45

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

46

Toro 52-4860

WHEEL COVER

$32.99

$

Usually ships in 3-6 days

0

47

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

48

Toro 39-9160

GEAR-PINION

$13.99

$

In Stock, Qty 5

0

49

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

50

Toro 53-7750

Wheel-Half
(Superseded to 121-1378-06)

$28.99

$

In Stock, Qty 6

0

51

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

52

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

53

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

54

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

55

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 15

0

56

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

57

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

58

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

59

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

60

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

61

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

62

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 16

0

63

Toro 39-6670

BEVEL GEAR

$

$

Not available

64

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

65

Toro 46-3550

GEAR-14T

$21.99

$

Usually ships in 3-6 days

0

66

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

67

Toro 53-7950

SHAFT-INTERMEDIATE

$52.99

$

In Stock, only 1 left!

0

68

Toro 39-7842

KEY

$2.99

$

In Stock, Qty 13

0

69

Toro 252-103

BEARING-NEEDLE, CLOSED

$23.99

$

In Stock, only 2 left!

0

70

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

71

Toro 39-6660

PINION-BEVEL

$38.99

$

In Stock, only 1 left!

0

72

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

73

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

74

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

75

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

Toro 61-8031

Gear Case Assembly (Incl. Ref.#8-11, 13-15, 17, 24-36, 38-42 & 63-74
(Superseded to 61-8032)

Note: Not illustrated

$1159.99

$

Usually ships in 3-6 days

0

Toro 53-7730

Wheel & Tire Assembly (Incl. Ref.#49, 50 & 52-57)
(Superseded to 121-1379)

Note: Not illustrated

$113.99

$

In Stock, only 2 left!

0
