22031 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) ENGINE AND AIR FILER ASSEMBLY Parts Diagram

21" ProLine Recycler Walk-Behind Mower

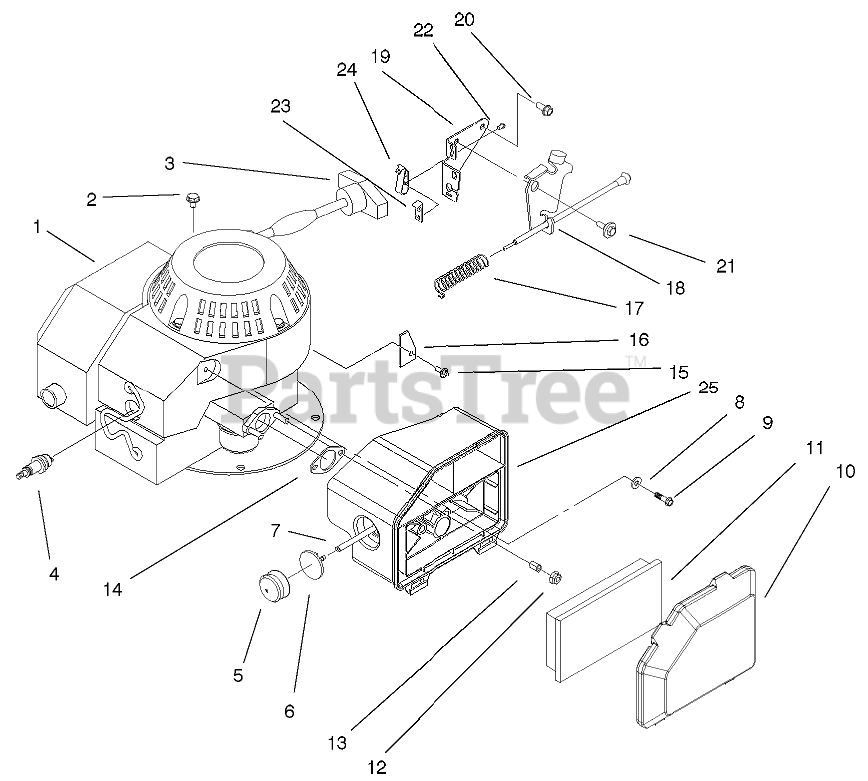

ENGINE AND AIR FILER ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8062

ENGINE ASM
(Superseded to 12-8099)

$

$

Not available

2

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

3

Toro 81-5940

RECOIL ASM

$

$

Not available

4

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

5

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

6

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

7

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

9

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

10

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

11

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 3 left!

0

12

Toro 50-7180

NUT

$6.99

$

In Stock, Qty 5

0

13

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

14

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

15

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 53-4690

STOP-GROUND STRAP

$4.49

$

In Stock, only 1 left!

0

17

Toro 66-5370

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

18

Toro 66-5380

BRAKE PLATE ASM

$78.99

$

Usually ships in 3-6 days

0

19

Toro 84-7820

PLATE-BRAKE

$

$

Not available

20

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

21

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

23

Toro 77-5260

STRAP-INSULATING

$2.99

$

Usually ships in 3-6 days

0

24

Toro 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

25

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available
