22030 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) IGNITION ASSEMBLY (MODEL NO. 47PL0-3) Parts Diagram

Walk-Behind Mower

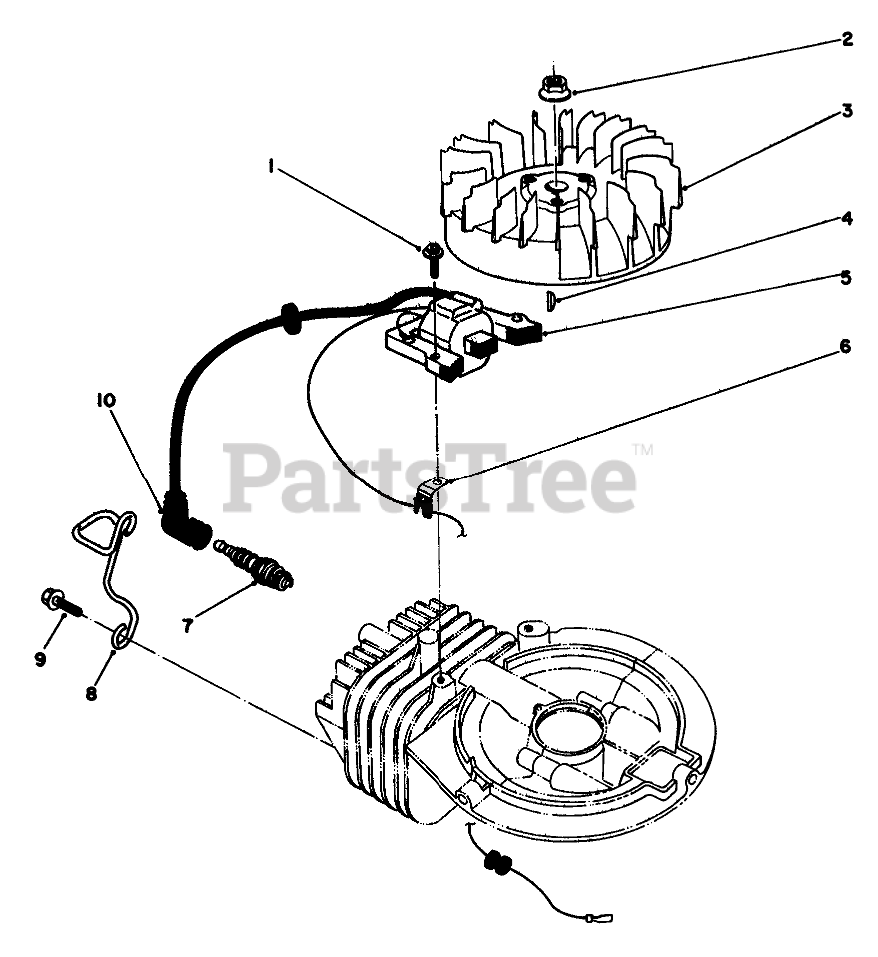

IGNITION ASSEMBLY (MODEL NO. 47PL0-3) Parts Diagram

  • Title
1

Toro 81-5680

SCREW

$

$

Not available

2

$11.99

$

Usually ships in 3-6 days

0

3

Toro 81-2810

FLYWHEEL

$447.99

$

Usually ships in 3-6 days

0

4

$7.49

$

Usually ships in 3-6 days

0

5

Toro 81-2820

COIL-MAGNETO

$460.99

$

Usually ships in 3-6 days

0

6

Toro 81-1480

CLAMP

$5.99

$

Usually ships in 3-6 days

0

7

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

8

Toro 81-2120

PROTECTOR-PLUG
(Superseded to 106-0832)

$

$

Not available

9

Toro 81-2350

SCREW

$

$

Not available

10

Toro 81-1500

CAP-SPARKPLUG

$40.99

$

In Stock, only 2 left!

0

Toro 41-7650

PULLER-FLYWHEEL

$

$

Not available
