22030 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY (MODEL 22030) Parts Diagram

Walk-Behind Mower

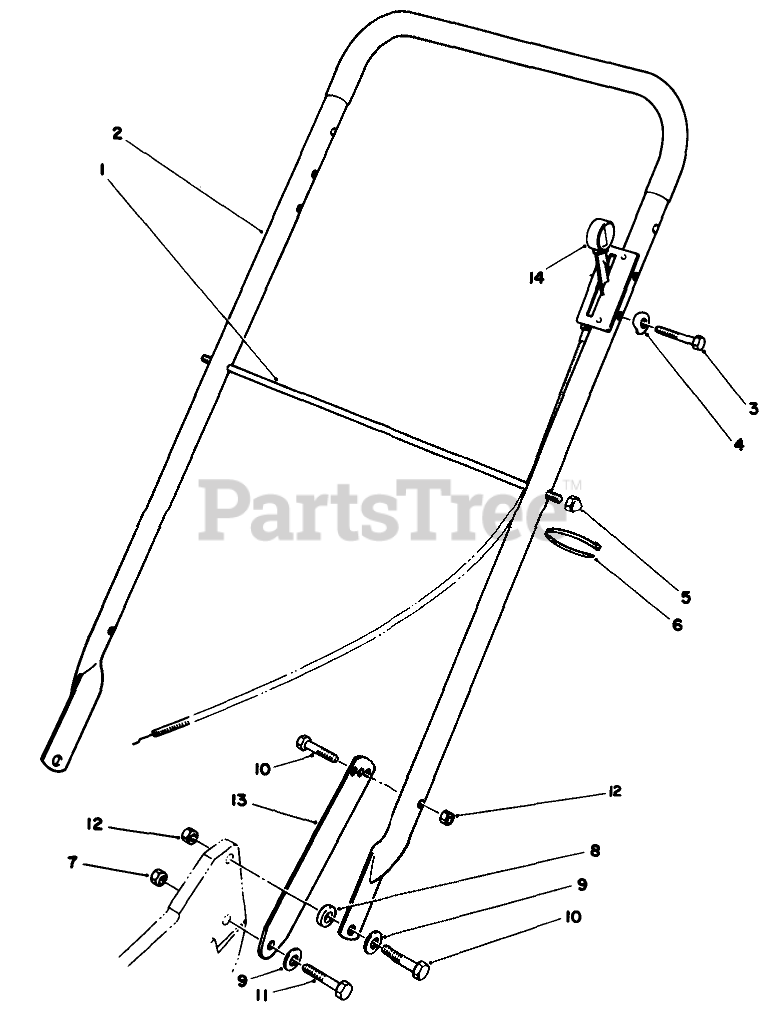

HANDLE ASSEMBLY (MODEL 22030) Parts Diagram

  • Title

1

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

2

Toro 66-7420

Handle
(Superseded to 98-2000-03)

$124.99

$

Usually ships in 3-6 days

0

3

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

4

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

5

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 3296-47

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

8

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

13

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

14

Toro 65-4992

Control-Throttle Bend Type #1 Sheath Lg.49.5 Inch Wire Lg.2.8 Inch

$

$

Not available
