22030 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY (MODEL 22035) Parts Diagram

Walk-Behind Mower

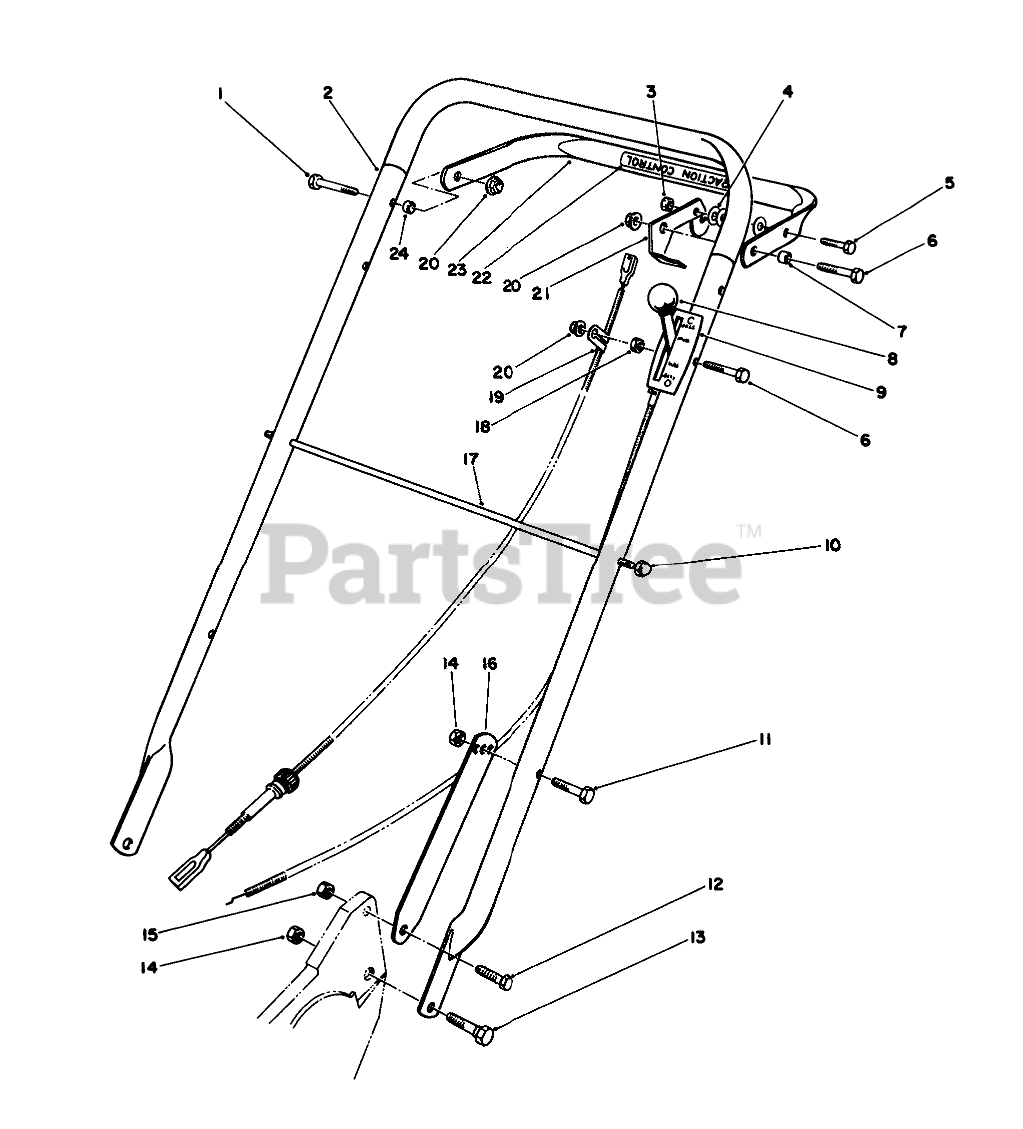

HANDLE ASSEMBLY (MODEL 22035) Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 48-2610

Handle

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 48-2741

Standoff-Lift Bail

$

$

Not available

8

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

9

Toro 53-7831

Control-Throttle (Incl. Ref. #8) Bend Type # 1 Sheath Lg.-46.5 Inch Wire Lg.-2.5 Inch

$111.99

$

In Stock, only 1 left!

0

10

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

16

Toro 53-7820

Latch-Handle
(Superseded to 65-5830-03)

$

$

Not available

17

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

0

18

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

19

Toro 55-8030

TRACTION CABLE

$214.99

$

In Stock, only 1 left!

0

20

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

21

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

22

Toro 48-2750

TRACTION DECAL

$

$

Not available

23

Toro 48-2480

Lift Bail

$

$

Not available

24

Toro 48-2740

STANDOFF LIFT BAIL

$

$

Not available
