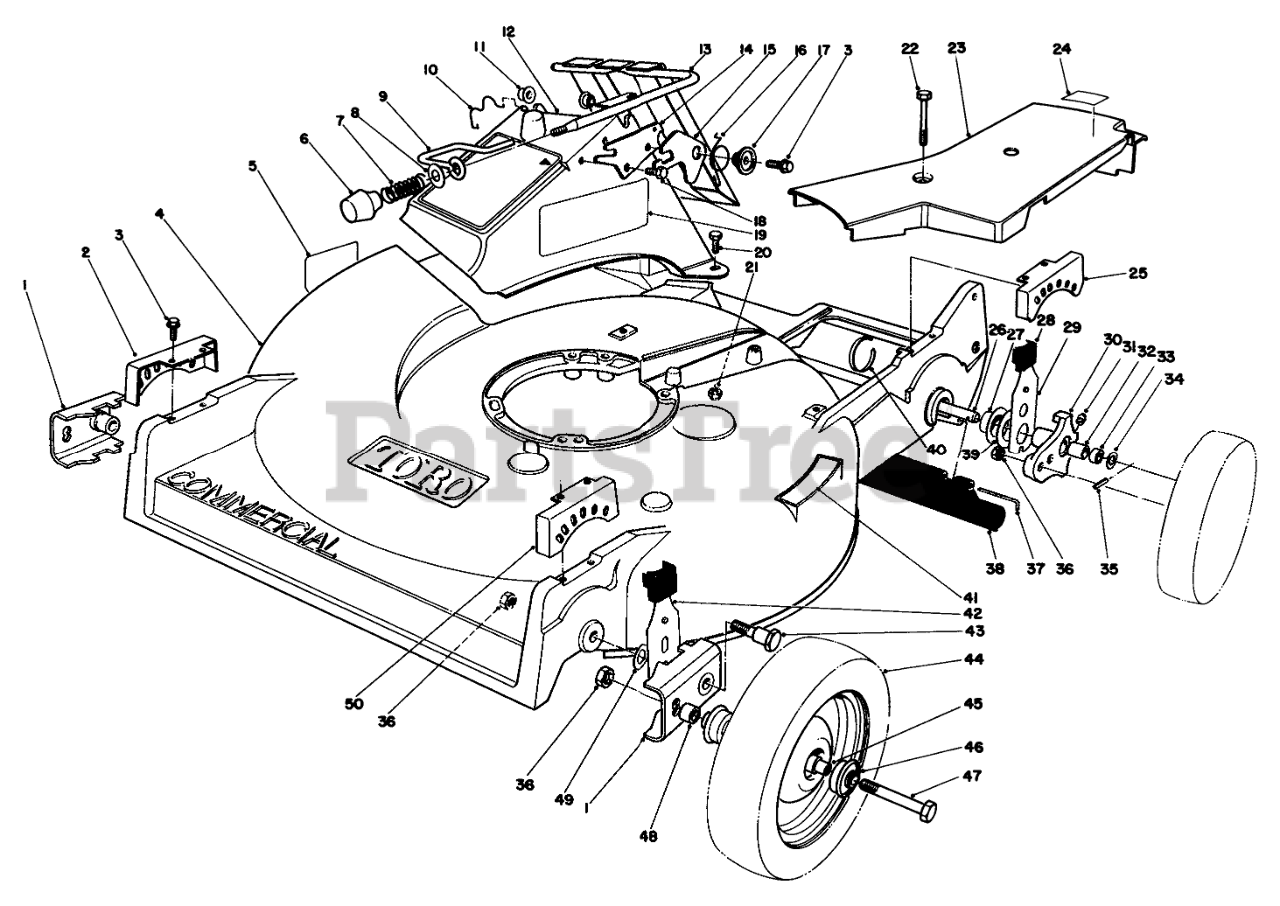

22030 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HOUSING ASSEMBLY (MODEL 22030 COND-T.) Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY (MODEL 22030 COND-T.) Parts Diagram

  • Title

1

Toro 49-9160

PIVOT ARM

$74.99

$

Usually ships in 3-6 days

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, only 2 left!

0

3

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

4

Toro 11-7859

Housing-Commercial (Incl. Ref. #5, 41)

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 233-37

KNOB

$33.99

$

Usually ships in 3-6 days

0

7

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 23-0940

DOOR LATCH

$

$

Not available

10

Toro 33-4830

DOOR RETAINER

$

$

Not available

11

Toro 23-0880

BUSHING-NYLON

$

$

Not available

12

Toro 11-5639

Chute & Door Assy. (Incl. Ref. #3, 6-11 & 13-21)

$

$

Not available

13

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 42-4010

SAFETY LATCH

$

$

Not available

16

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

17

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 7

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 9

0

23

Toro 48-2800

Belt-Cover
(Superseded to 63-9441)

$57.99

$

Usually ships in 3-6 days

0

24

Toro 48-2670

Label-Grease
(Superseded to 52-2610)

$

$

Not available

25

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 3 left!

0

Toro 49-8750

QUADRANT-REAR, RH

Note: Not illustrated

$27.99

$

In Stock, only 3 left!

0

26

Toro 49-8790

SHAFT-AXLE, REAR

$65.99

$

Usually ships in 3-6 days

0

27

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 7

0

28

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

29

Toro 49-8810

Spring Arm
(Superseded to 66-7561)

$19.99

$

In Stock, Qty 6

0

30

Toro 42-3510

Pivot Arm (Incl. Ref. #31-33)

$

$

Not available

31

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 12

0

32

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

33

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

34

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

35

Toro 32121-108

PIN-SPIROL

$6.99

$

Usually ships in 3-6 days

0

36

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

38

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 6

0

39

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

40

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

41

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

42

Toro 49-8800

SPRING ARM ASM-FRONT

$46.99

$

Usually ships in 3-6 days

0

43

Toro 49-9180

PIVOT SCREW

$

$

Not available

44

Toro 52-2460

Wheel & Tire Assembly (Incl. Ref. #45 & 46)
(Superseded to 121-1380)

$100.99

$

In Stock, only 1 left!

0

45

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

46

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

47

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

48

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 10

0

49

Toro 49-9150

WASHER-PIVOT

$0.99

$

Usually ships in 3-6 days

0

50

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, Qty 5

0
