22030 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) GEAR CASE ASSEMBLY (MODEL 22035) Parts Diagram

Walk-Behind Mower

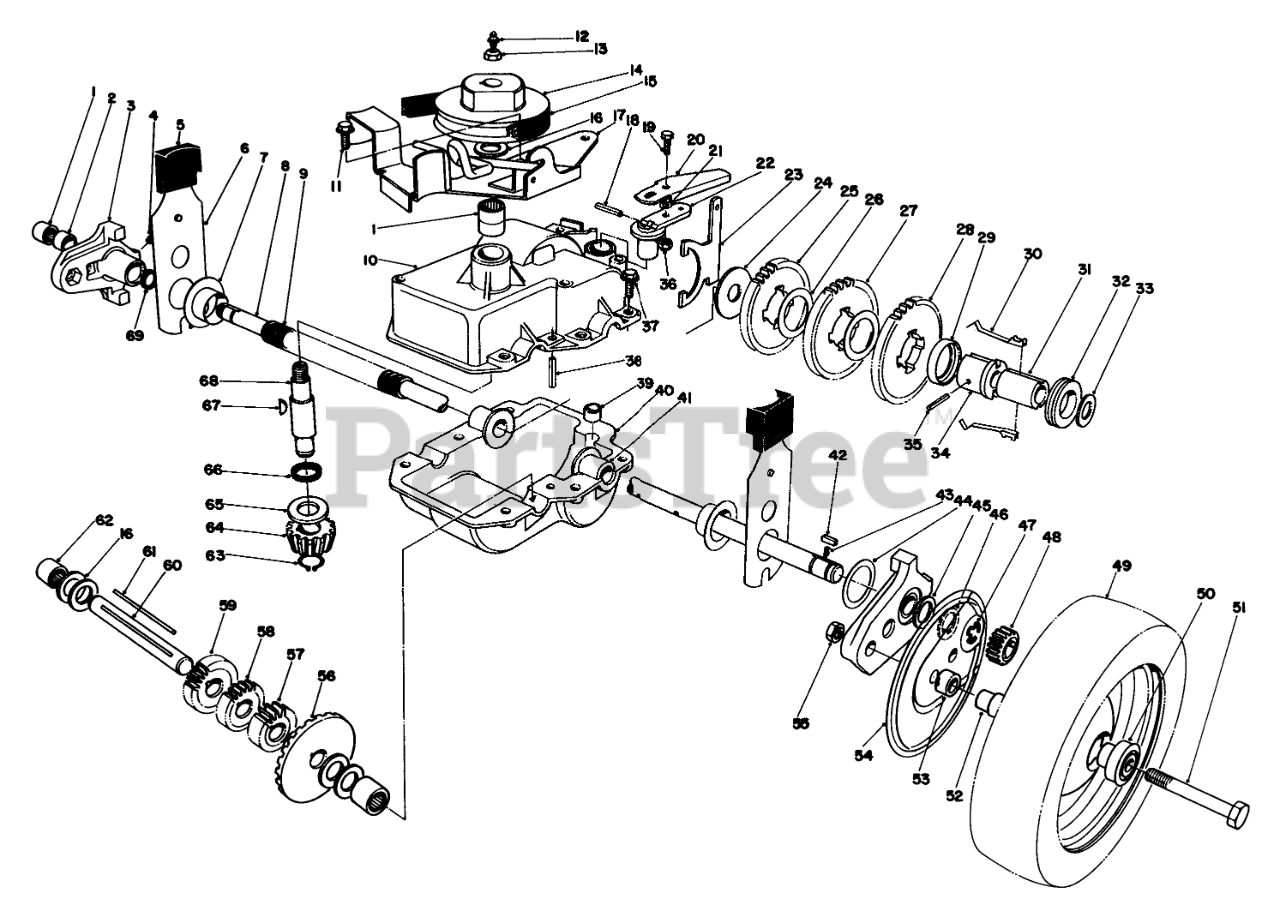

GEAR CASE ASSEMBLY (MODEL 22035) Parts Diagram

  • Title

1

Toro 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

2

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

3

Toro 48-2540

Pivot Arm Assy. (Incl. Ref. #1-2, 4 & 69)
(Superseded to 53-7940)

$

$

Not available

4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

5

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

6

Toro 49-8810

Spring Arm
(Superseded to 66-7561)

$19.99

$

In Stock, Qty 6

0

7

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

8

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

9

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

10

Case Upper

Note: Order Complete Gear Case Assembly 48-2500

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

14

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

15

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 19

0

16

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

17

Toro 48-2490

BELT GUIDE BRKT W A

$

$

Not available

18

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

19

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

20

Toro 48-2560

Cover-Shift Lever
(Superseded to 55-8040)

$

$

Not available

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 29-9560

LEVER-SHIFT

$17.99

$

Usually ships in 3-6 days

0

23

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$24.99

$

In Stock, only 2 left!

0

24

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

25

Toro 42-4740

GEAR-38T

$89.99

$

In Stock, only 2 left!

0

26

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 29-9271

GEAR-42T

$94.99

$

Usually ships in 3-6 days

0

28

Toro 46-3560

GEAR

$84.99

$

In Stock, only 1 left!

0

29

Toro 39-7830

KEY RETAINER

$

$

Not available

30

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

31

Toro 39-6720

SLEEVE

$17.99

$

Usually ships in 3-6 days

0

32

Toro 29-9340

COLLAR-SHIFT

$44.99

$

Usually ships in 3-6 days

0

33

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

34

Toro 39-6730

Body-Sleeve
(Superseded to 55-8010)

$19.99

$

In Stock, only 4 left!

0

35

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

38

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

39

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

40

Case-Lower

Note: Order Complete Gear Case Assembly 48-2500

$

$

Not available

41

Toro 48-2450

BUSHING

$18.99

$

Usually ships in 3-6 days

0

42

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

43

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

44

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

45

Toro 48-2890

THRUST WASHER

$

$

Not available

46

Toro 48-2580

KEYED WASHER

$14.99

$

Usually ships in 3-6 days

0

47

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

48

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

49

Toro 52-2470

Wheel& Tire Assy. (Incl. Ref. #50 & 52)
(Superseded to 121-1379)

$131.99

$

In Stock, only 3 left!

0

50

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

51

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

52

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

53

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

54

Toro 44-0600

WHEEL COVER

$

$

Not available

55

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

56

Toro 39-6670

BEVEL GEAR

$

$

Not available

57

Toro 46-3540

GEAR-12T

$14.99

$

In Stock, Qty 5

0

58

Toro 46-3550

GEAR-14T

$22.99

$

Usually ships in 3-6 days

0

59

Toro 39-6650

GEAR-18T

$14.99

$

In Stock, only 2 left!

0

60

Toro 48-2520

Shaft-Intermediate
(Superseded to 53-7950)

$55.99

$

In Stock, only 1 left!

0

61

Toro 39-7841

Key Square
(Superseded to 39-7843)

$

$

Not available

62

Toro 252-103

BEARING-NEEDLE, CLOSED

$25.99

$

In Stock, only 2 left!

0

63

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

64

Toro 39-6660

PINION-BEVEL

$42.99

$

In Stock, only 1 left!

0

65

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

66

Toro 47-7260

SEAL

$8.99

$

In Stock, only 2 left!

0

67

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

68

Toro 48-2460

Shaft Input
(Superseded to 13-5149)

$98.99

$

Usually ships in 3-6 days

0

69

Toro 47-7260

SEAL

$8.99

$

In Stock, only 2 left!

0

Toro 48-2500

Gear Case Assembly (Incl. Ref. #8, 10-14, 16-41 & 56-68)
(Superseded to 61-8032)

Note: Not illustrated

$

$

Not available
