22030 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) GAS TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

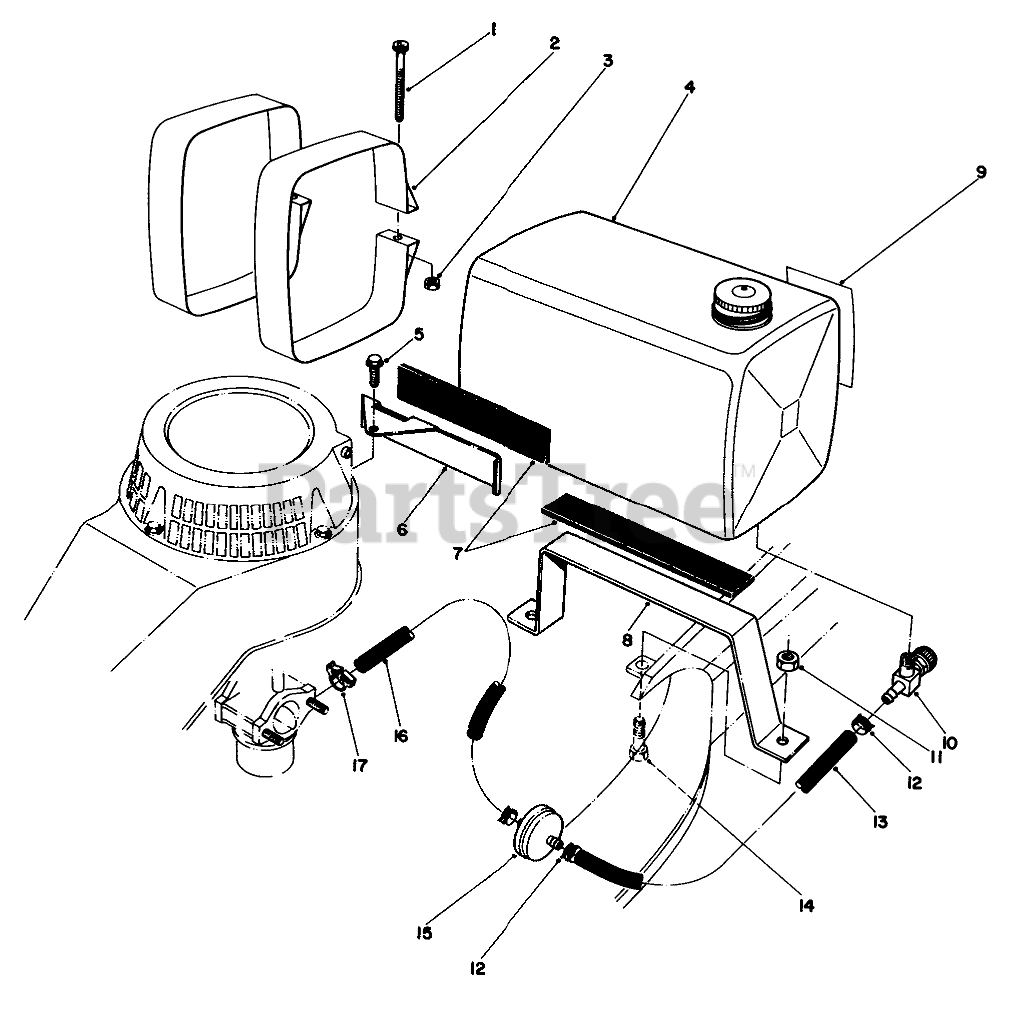

GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-62

SCREW-HSH

$

$

Not available

2

Toro 52-2320

TANK MTG STRAP WA

$

$

Not available

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

4

Toro 52-2330

Tank-Gas

$

$

Not available

5

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

6

Toro 52-2300

FRT TANK MOUNT

$20.99

$

Usually ships in 3-6 days

0

7

Toro 52-2290

ISOLATOR PAD

$

$

Not available

8

Toro 52-2310

BOTTOM TANK MOUNT

$

$

Not available

9

Toro 52-2350

FUEL TANK DECAL

$

$

Not available

10

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

13

Toro 51-3210

HOSE-FUEL

$4.49

$

Usually ships in 3-6 days

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 51-3190

Filter-Fuel
(Superseded to 56-6360)

$6.99

$

In Stock, only 4 left!

0

16

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

17

Toro 51-3200

FUEL LINE CLAMP

$

$

Not available
