22026 - Toro Walk-Behind Mower (SN: 210000001 - 210999999) (2001) HOUSING & WHEEL ASSEMBLY Parts Diagram

Walk-Behind Mower

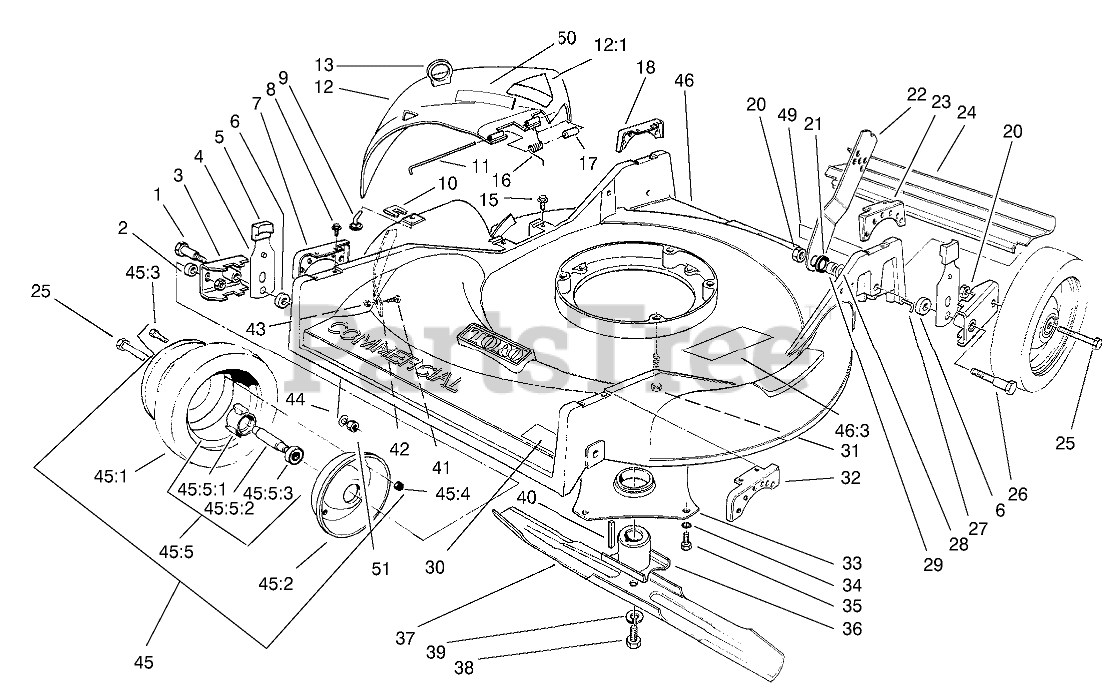

HOUSING & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 49-9180

PIVOT SCREW

$9.99

$

Usually ships in 3-6 days

0

2

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 4 left!

0

3

Toro 49-9160

PIVOT ARM

$64.99

$

Usually ships in 3-6 days

0

4

Toro 49-8800

SPRING ARM ASM-FRONT

$40.99

$

Usually ships in 3-6 days

0

5

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

6

Toro 53-7930

SPACER-PIVOT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 52-2510

FRT RIGHT QUAD

$

$

Not available

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

10

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

11

Toro 52-2570

DEFLECTOR HINGE PIN

$

$

Not available

12

Toro 12-4739

DEFLECTOR

$74.99

$

Usually ships in 3-6 days

0

12:1

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

13

Toro 28-1430

LIFT LOOP

$

$

Not available

15

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

16

Toro 52-2560

DEFLECTOR SPRING

$

$

Not available

17

Toro 28-3270

SLEEVE

$

$

Not available

18

Toro 52-2530

REAR RIGHT QUAD

$

$

Not available

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 27-6510

HANDLE LATCH SPACER

$4.99

$

Usually ships in 3-6 days

0

22

Toro 100-3296-03

LATCH-HANDLE

$

$

Not available

23

Toro 52-2540

REAR LEFT QUAD

$

$

Not available

24

Toro 52-2640

SHIELD - TRAILING
(Superseded to 117-5298)

$

$

Not available

25

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

26

Toro 52-2260

REAR PIVOT SCREW

$22.99

$

Usually ships in 3-6 days

0

27

Toro 33-3201

SHIELD ROD

$

$

Not available

28

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

29

Toro 52-2360

HANDLE LATCH SPACER

$

$

Not available

30

Toro 68-7410

DECAL-BLADE

$11.99

$

In Stock, only 1 left!

0

31

Toro 100-2592

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

32

Toro 52-2520

FRT LEFT QUAD

$

$

Not available

33

Toro 52-2500

CRNKSHFT PROTECT ASM

$117.99

$

Usually ships in 3-6 days

0

34

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

35

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

36

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 1 left!

0

37

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$33.99

$

Usually ships in 3-6 days

0

38

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

39

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

40

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

41

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

42

Toro 52-2650-01

SAFETY BAR (RED)

$

$

Not available

43

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 3290-455

WASHER-BELLEVILLE

$3.99

$

Usually ships in 3-6 days

0

45

Toro 53-7720

WHEEL AND TIRE ASM
(Superseded to 121-1380)

$100.99

$

In Stock, only 3 left!

0

45:1

Toro 53-7740

TIRE

$37.99

$

Usually ships in 3-6 days

0

45:2

Toro 53-7780-06

PLATE-WHEEL, HALF
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 2 left!

0

45:3

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

45:4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

45:5

HUB and BEARING ASM

Note: Not serviced

$

$

Not available

45:5:1

Toro 1

Label-Emissions

$

$

Currently unavailable

45:5:2

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

45:5:3

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

46

Toro 12-4729

21 COMM SD HSG/DECAL

$

$

Not available

46:3

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

49

Toro 92-1779

DECAL-WARNING

$8.49

$

Usually ships in 3-6 days

0

50

Toro 71-8650

DECAL-DANGER DEFLECTOR

$

$

Not available

51

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0
