22026 - Toro Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

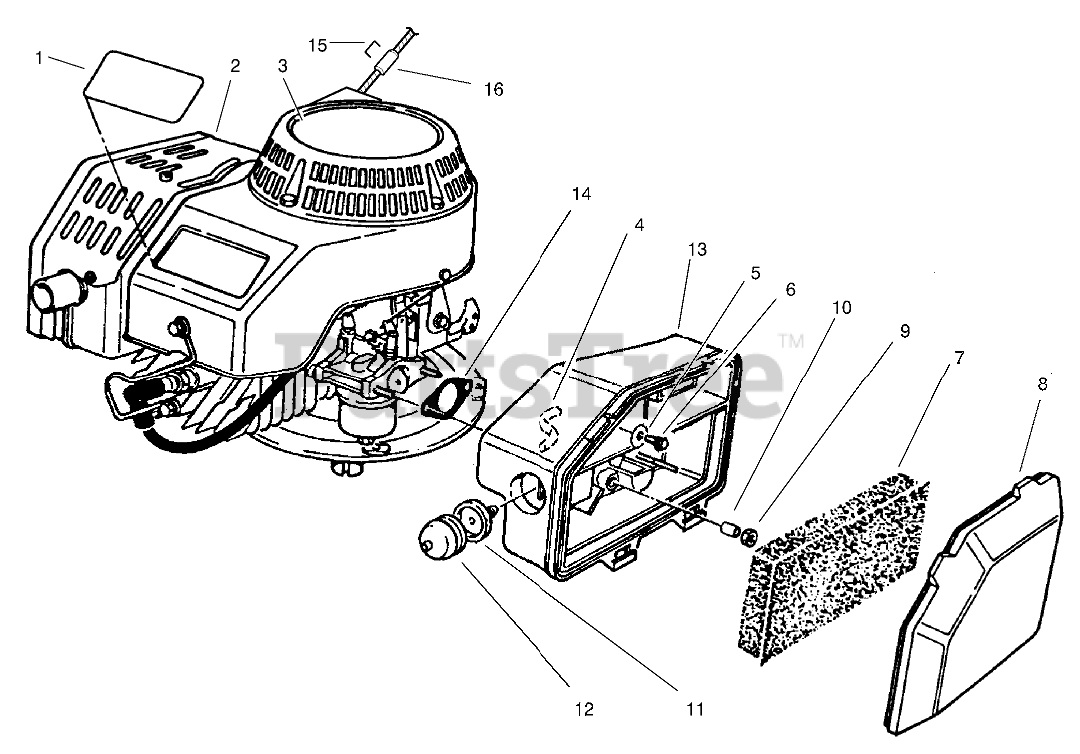

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-1260

DECAL - PROLINE

$8.49

$

Usually ships in 3-6 days

0

2

Toro 61-8062

ENGINE ASM
(Superseded to 12-8099)

$

$

Not available

3

Toro 77-0040

DECAL-2 CYC RECOIL COMM

$14.99

$

Usually ships in 3-6 days

0

4

Toro 44-3172

HOSE-PRIMER

$6.99

$

In Stock, only 3 left!

0

5

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

6

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

7

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 2 left!

0

8

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

9

Toro 50-7180

NUT

$6.99

$

In Stock, only 3 left!

0

10

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 44-2750

BODY-PRIMER

$9.49

$

In Stock, Qty 20+

0

12

Toro 66-7460

BULB-PRIMER

$6.99

$

In Stock, Qty 20+

0

13

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

14

Toro 81-0090

GASKET-AIR CLEANER

$8.49

$

In Stock, only 2 left!

0

15

Staple

Note: Obtain Locally

$

$

Not available

16

Toro 47-2480

STOP-ROPE

$

$

Not available
