22026 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) FUEL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

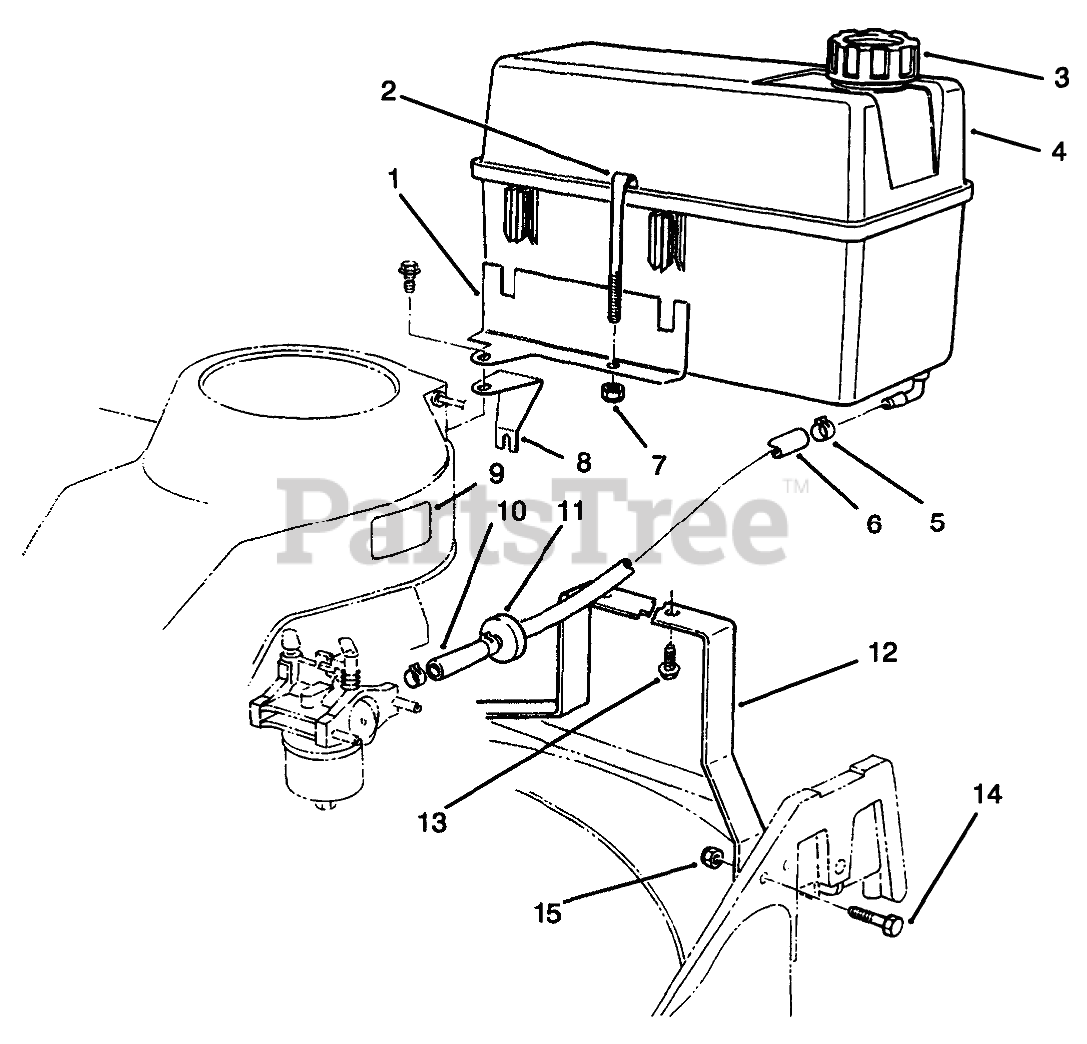

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 74-2110

Bracket Tank
(Superseded to 74-2110-03)

$20.99

$

Usually ships in 3-6 days

0

2

Toro 77-2840

RETAINER - FUEL TANK

$62.99

$

Usually ships in 3-6 days

0

3

Toro 55-3575

GAS CAP ASM

$20.99

$

In Stock, only 1 left!

0

4

Toro 82-8460

Tank-Gas
(Superseded to 17-4909)

$140.99

$

In Stock, only 1 left!

0

5

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

6

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

8

Toro 77-0520

Support-Bracket
(Superseded to 77-0520-03)

$6.49

$

Usually ships in 3-6 days

0

9

Toro 62-7600

DECAL - FUEL

$

$

Not available

10

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

11

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

12

Toro 74-2020

Base-Tank, Fuel
(Superseded to 74-2020-03)

$

$

Not available

13

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
