22026 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

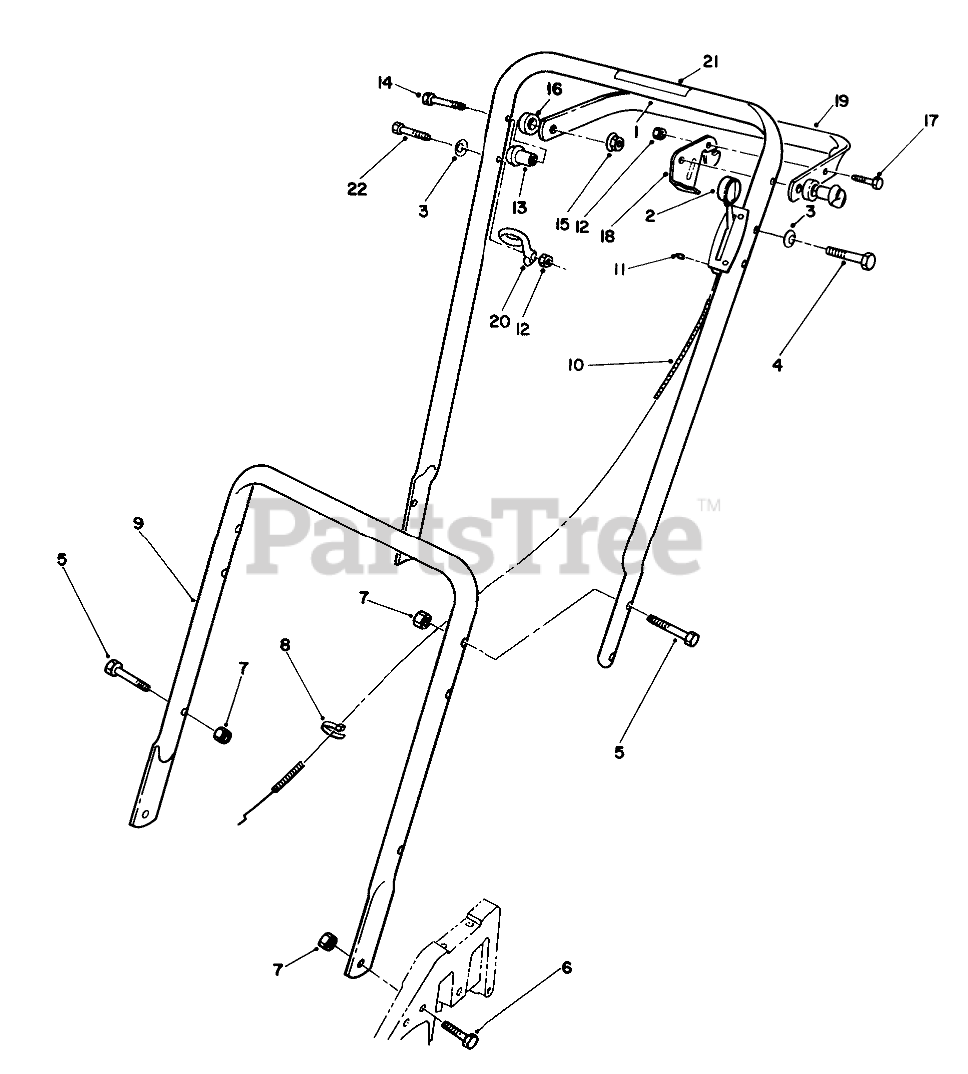

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 13-9729

Upper Handle Assembly (Incl. Ref. #21)

$137.99

$

Usually ships in 3-6 days

0

2

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

3

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 52-2370

Handle-Lower
(Superseded to 52-2370-03)

$

$

Not available

10

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

11

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

15

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

16

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

19

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0

20

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

21

Toro 56-6280

WARNING DECAL

$

$

Not available

22

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0
