22025 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

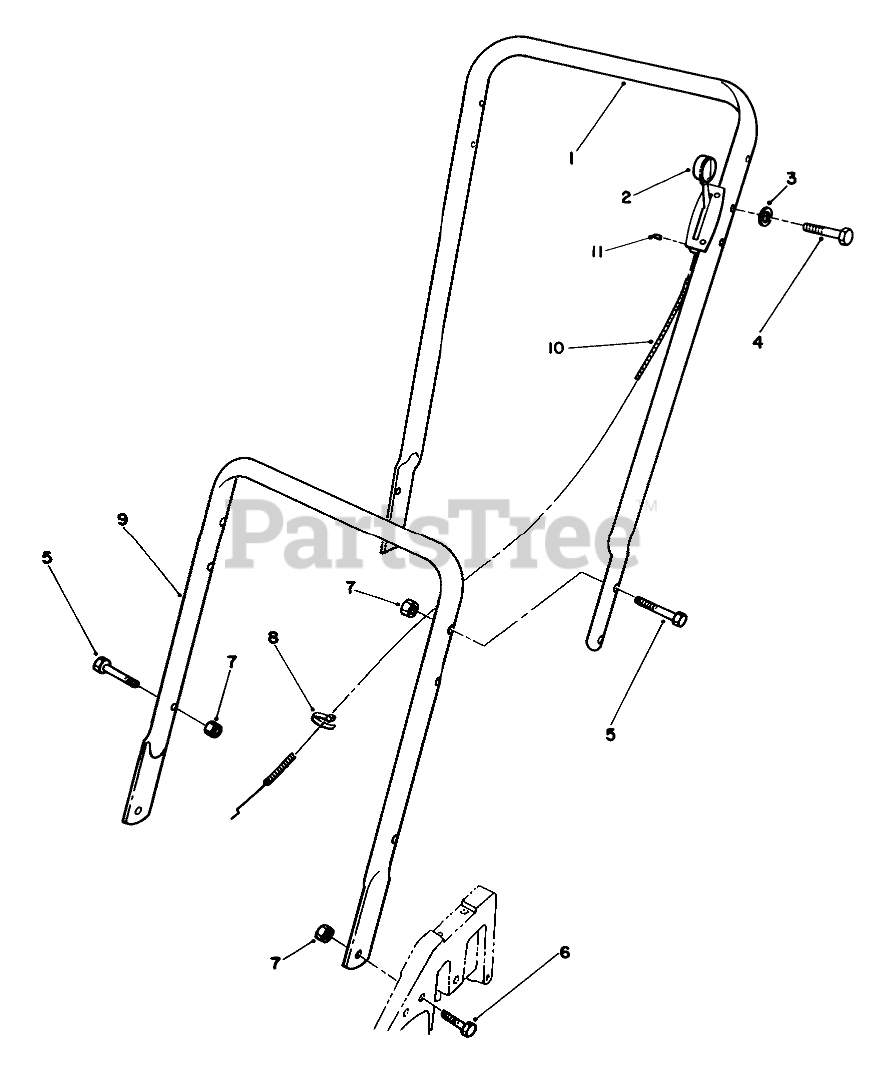

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 74-2150

Handle-Upper
(Superseded to 74-2150-03)

$

$

Not available

2

Toro 82-9951

THROTTLE CONTROL BRKT

$

$

Not available

3

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

4

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 52-2370

Handle-Lower
(Superseded to 52-2370-03)

$

$

Not available

10

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

11

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

Toro 13-6149

Loose Parts

$

$

Not available
