22025 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

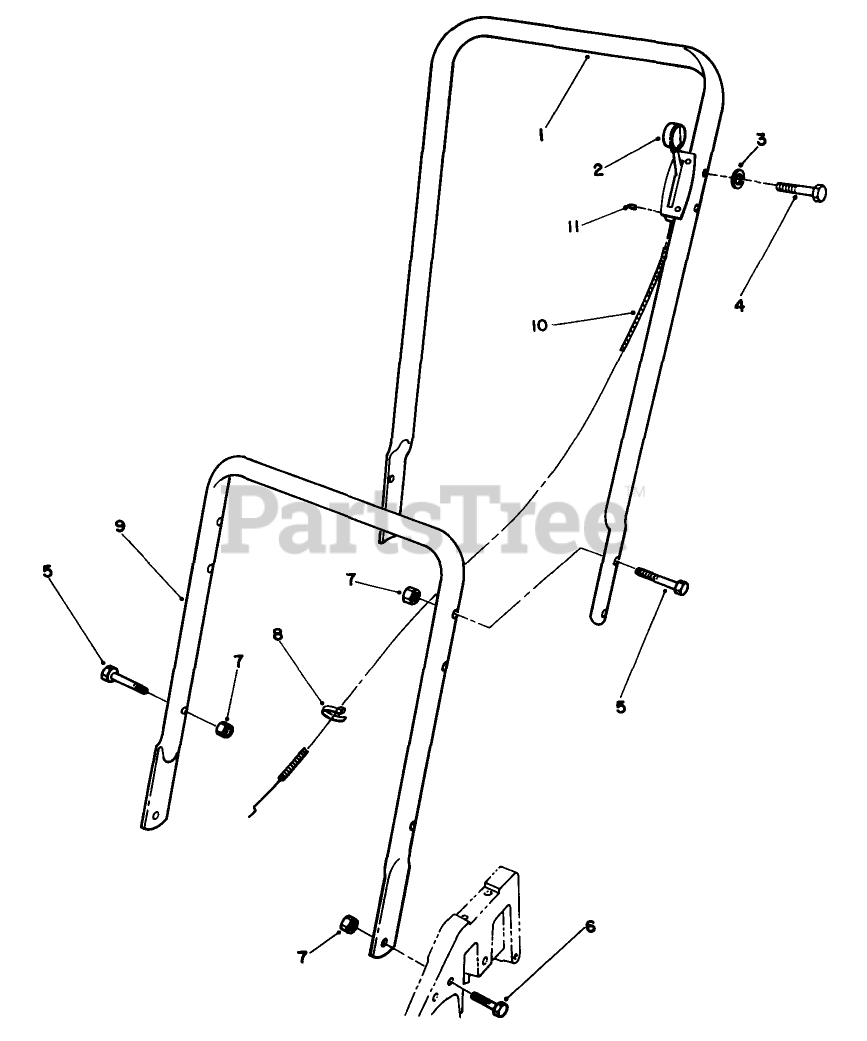

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 65-5970

Handle-Upper
(Superseded to 74-2150-03)

$

$

Not available

2

Toro 70-1050

Bracket Throttle
(Superseded to 82-9953)

$

$

Not available

3

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 52-2370

Handle-Lower
(Superseded to 52-2370-03)

$

$

Not available

10

Toro 70-1060

THROTTLE CABLE

$

$

Not available

11

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0
